Ø 4 mt
11. WORKING AREA
For a correct use of the machine, the following zones must be kept clear.
10. INSTALLATION
10.1 PLACING THE MACHINE
The machine must be placed on a stable plain surface, capable to support the weight of the machine itself;
any possible difference in height must be in conformity with building rules. When the machine has to be
placed on raised plain surface (higher floor) the load-bearing slab must be adequate to the weight of the ma-
chine.
Put the machine in the right place, as requested operative requirements, where it is easy to connect it to
electrical and pneumatic power supply.
Put the machine in a place where there is enough lighting to see every part of the machine itself.
We suggest also to arrange an exhaust fan nearby the machine to clean it periodically.
10.2 LEVELLING

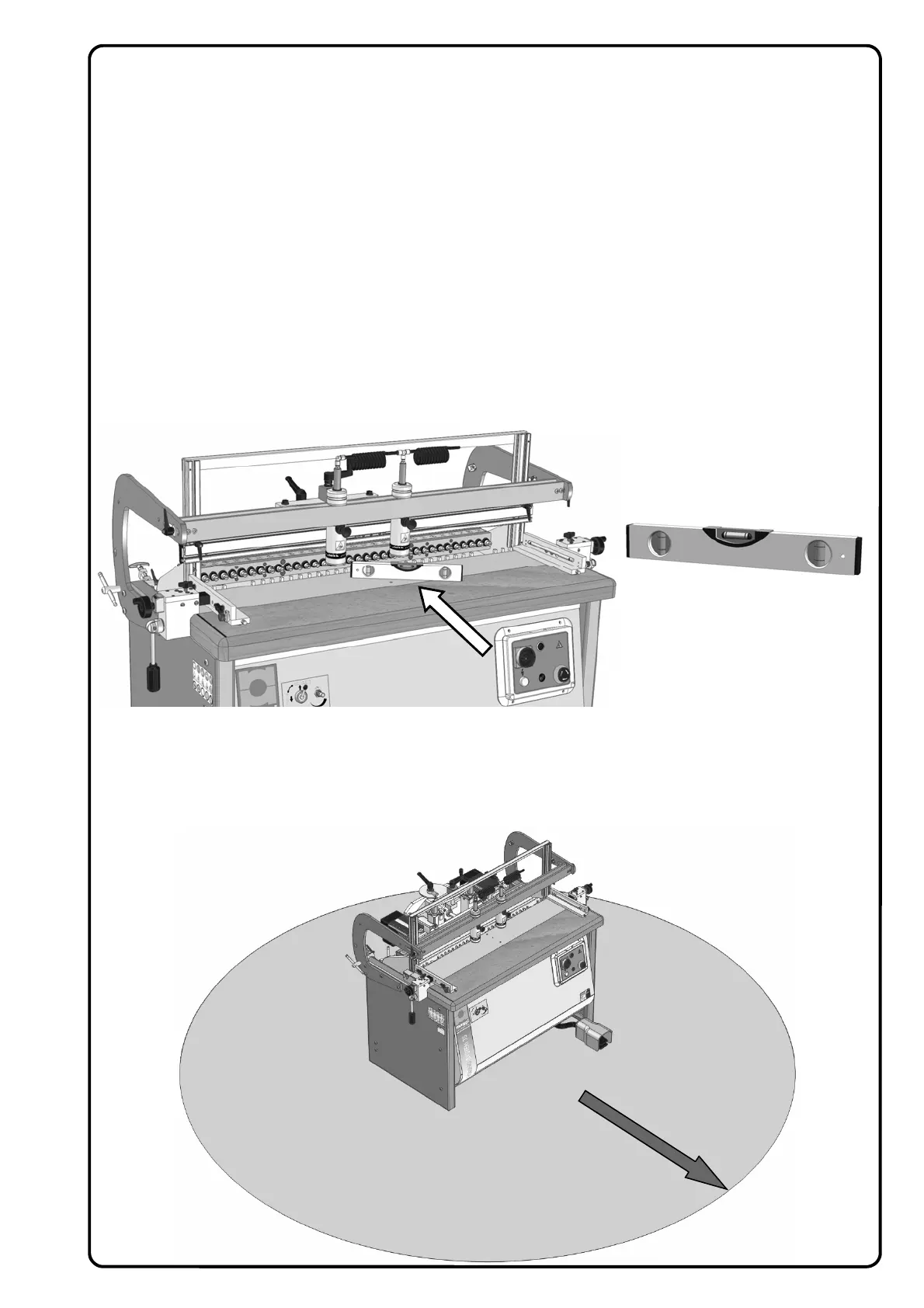

Adjust the levelling feet so that the machine is perfectly leaned on the floor, then align the working table of
the machine by using a spirit level.
Before going on with levelling, tighten the alignment pins into the threaded holes of the bed frame, remove
the protective oil film from planes and every not painted surface, by using petroleum or kerosene only.
Do not use any solvent as gasoline and diesel oil, because they can damage the paint, making it dull, or oxi-
dize other parts.
