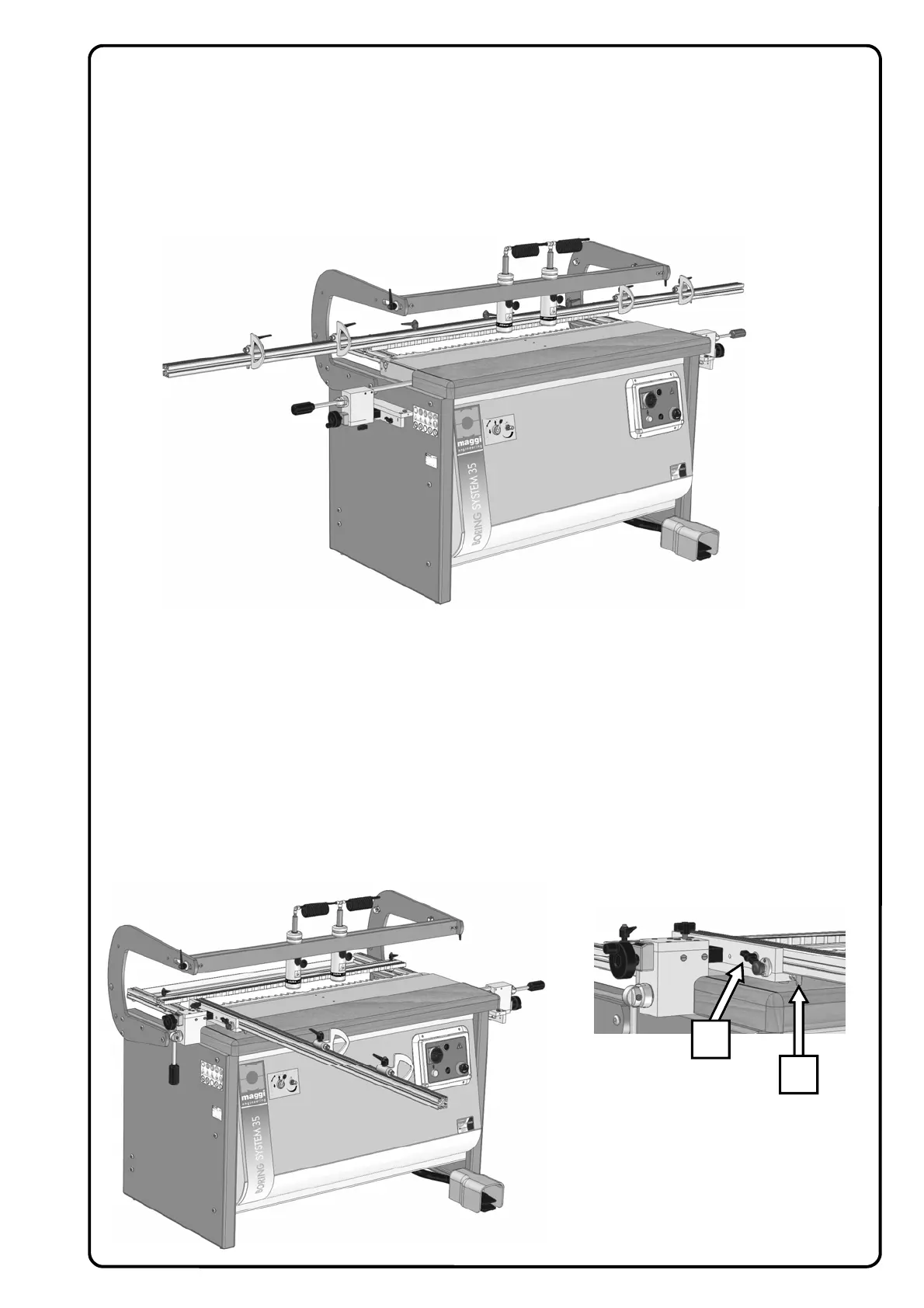

15.6 USE OF THE 1,5 + 1,5 MT EXTENSION FENCE ( OPTIONAL )
The extension fence is used to make a series of larger holes than the machine can make or to bore large-sized
pieces. Use of the extension generally implies complete or partial exclusion of the side squares and positioning
the spindle head at 90°. For longitudinal use of the extension, we advise you to exclude the side squares com-
pletely, as it is possible to use mobile reference stoppers on the extension itself (the extension is provided with
4 mobile stoppers with positioning screws, stop screw and extension clamping device) for combined positioning
of the work piece.
TRANSVERSAL POSITION OF EXTENSION FENCE ( OPTIONAL )
To use the extension fence transversally you need to fasten it to the side square using the locking knobs pro-
vided.
Follow the procedure described below:
- Position the extension on the inner side of the side square, locking it in place with the help of the reference
pin (1) on the extension itself.
- Clamp the locking knobs (2) on the side square.
- Once the extension fence has been positioned, it is possible to exclude the other side square if necessary.
- It is now possible to use the mobile stops to co-ordinate the relative positions of the sections to be bored on
long pieces.
- Add a suitable support (i.e. a stand) for the fence and for the panel to be bored.
2
1
