CN4
CN5
CN6
16
15

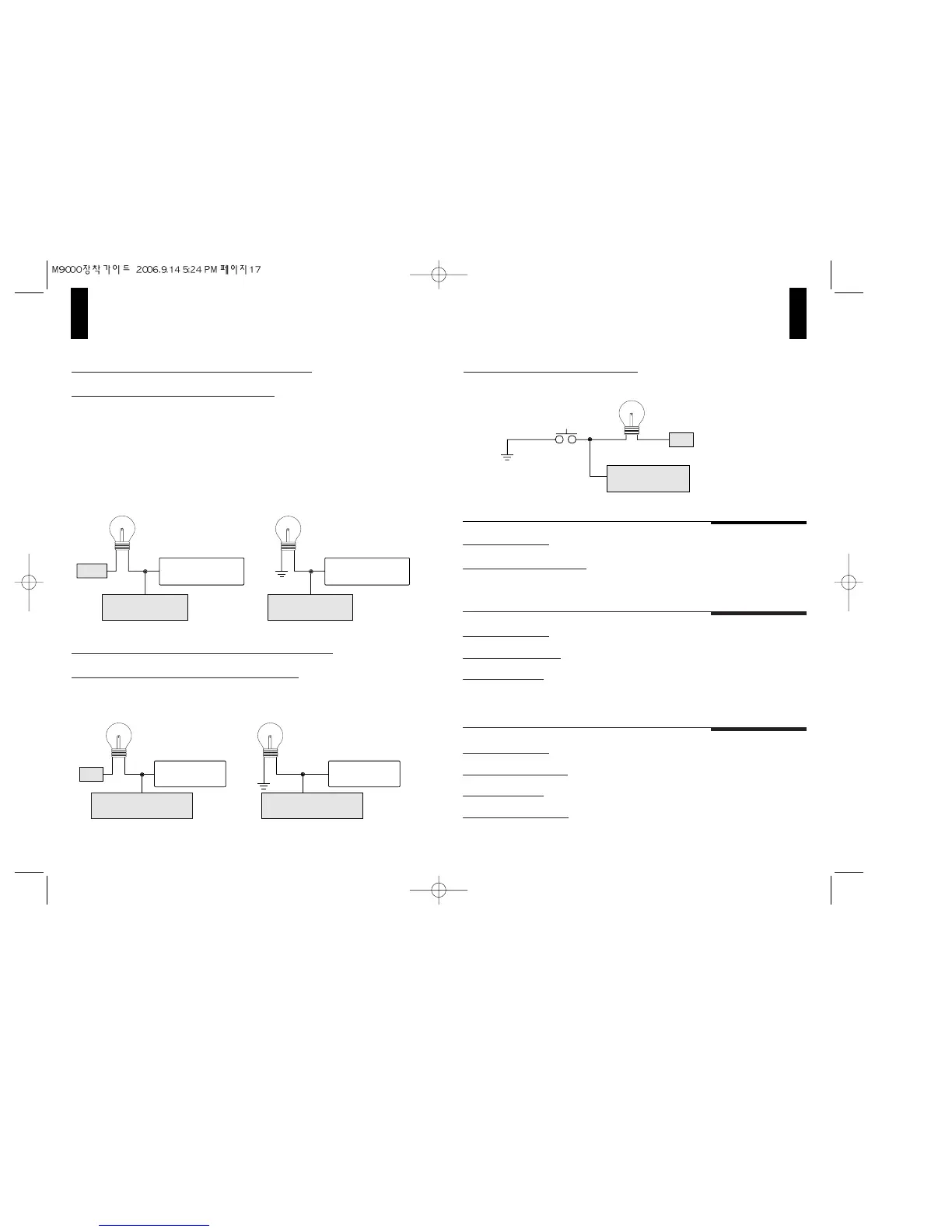

No 5 (White/Black) : Negative Glow Plug Input
No 6 (White) : Positive Glow Plug Input
If you doníft connect one of these wires(negative or positive Glow sensing),
the system will act as gasoline vehicles.
Only when one of these wires are connected, your system will know the diesel
engine. The differences between gasoline and diesel engine are pre-heating
time and the running time (15minutes for gasoline engine, 25minutes for diesel
engines) when remote starting.
CN3-5
(-)Glow Plug Input
Glow Plug
Lamp
+
12V
Engine
Control Module
CN3-6
(+)Glow Plug Input
Glow Plug
Lamp
Engine
Control Module
No 7 (Orange/Black) : Negative Parking Light Input
No 8 (Orange) : Positive Parking Light Input
CN 3 -7
(-) Parking Light Input
CN 3 -8
(+) Parking Light Input
Parking LightParking Light
+12V
Parking Light
control Relay
Parking Light
control Relay
CN 3 -9
(-)Trunk Trigger Input
Trunk Lamp
No 9 (Black) : (-)Trunk Trigger Input
Connect this wire to the trunk lamp wire as shown below.
+12V
No 1 (Black) : (-)
No 2 (Black/White) : (+)
No 1 (Black) : (-)
No 2 (Blue) : Sense
No 3 (Red) : (+)
No 1 (Black) : (-)
No 2 (White) : Sense
No 3 (Red) : (+)
No 4 (Yellow) : LED
｝
Temperature Sensor
｝
Shock sensor
｝
Remote Pager sensor
