Magnetek Flex Duo - Wall Mounting the Charger

Flex Duo Operator Manual
August 2021
Page 13

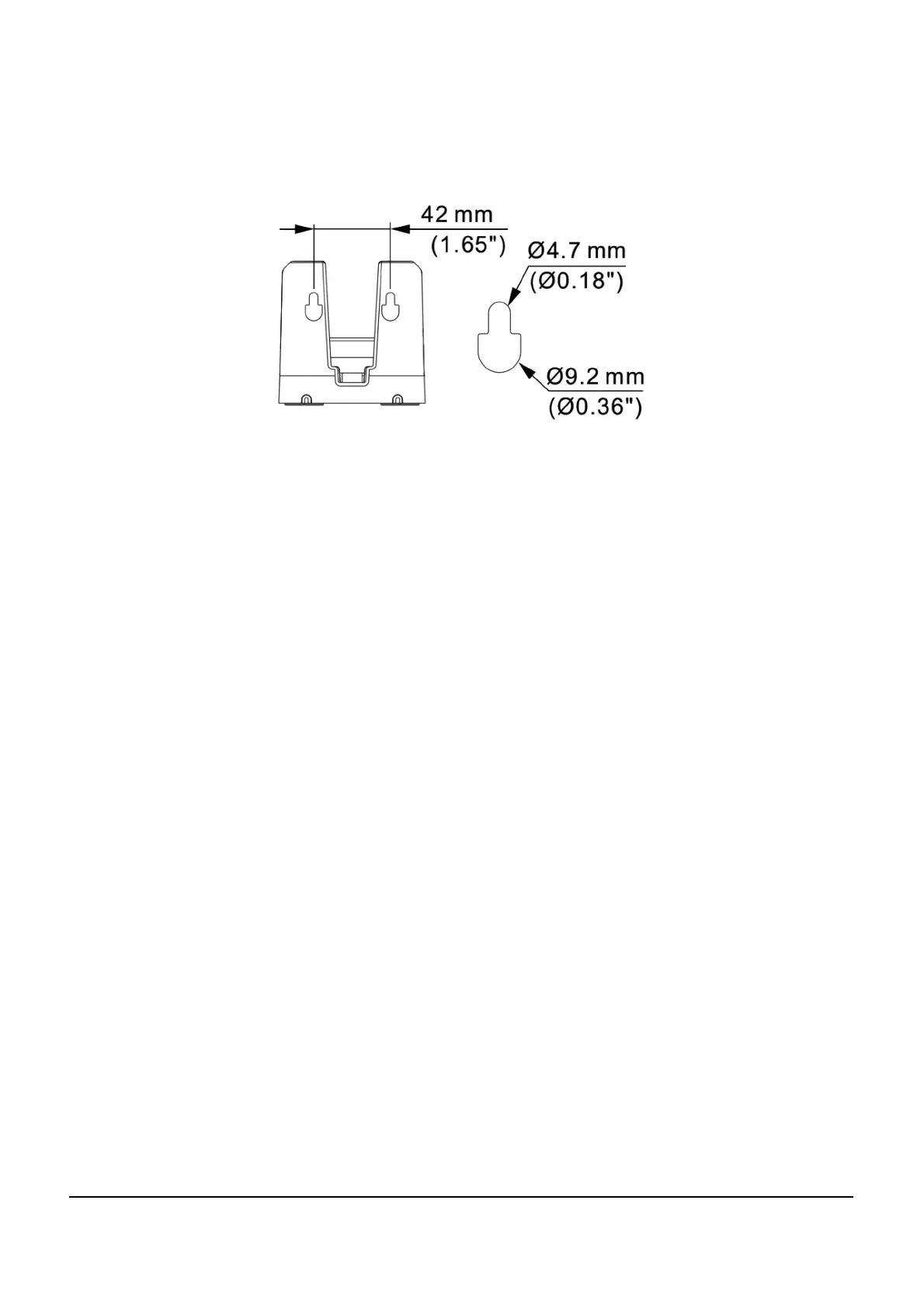

2.9.5 Wall Mounting the Charger
The Flex Duo charging cradle has two holes located in the back, vertical face of the unit. These holes allow the
cradle to be mounted on a wall by sliding the cradle over the two screws and then sliding down to secure the cradle
onto the screw heads.
Figure 2-6
