MAGSTIM RAPID2 - 3.2 Rapid² Plus¹ System

Magstim Rapid²
Operating Manual
© The Magstim Company Limited 10 MOP03-EN-03
3.2 Magstim Rapid² Plus¹
The Rapid² Plus¹ uses the same modules as the Super Rapid² with the addition of the Plus¹ module
which has an additional PSU. This allows stimulation to occur at higher frequencies for a given power
level to be delivered to the patient.
3.2.1 Front view
The front panel, shown below, allows control of the Standard Rapid² Plus¹ and provides the
connection for the stimulating coil.
All operating functions described in this section assume that the mains power switch, located on the
rear panel, is switched on

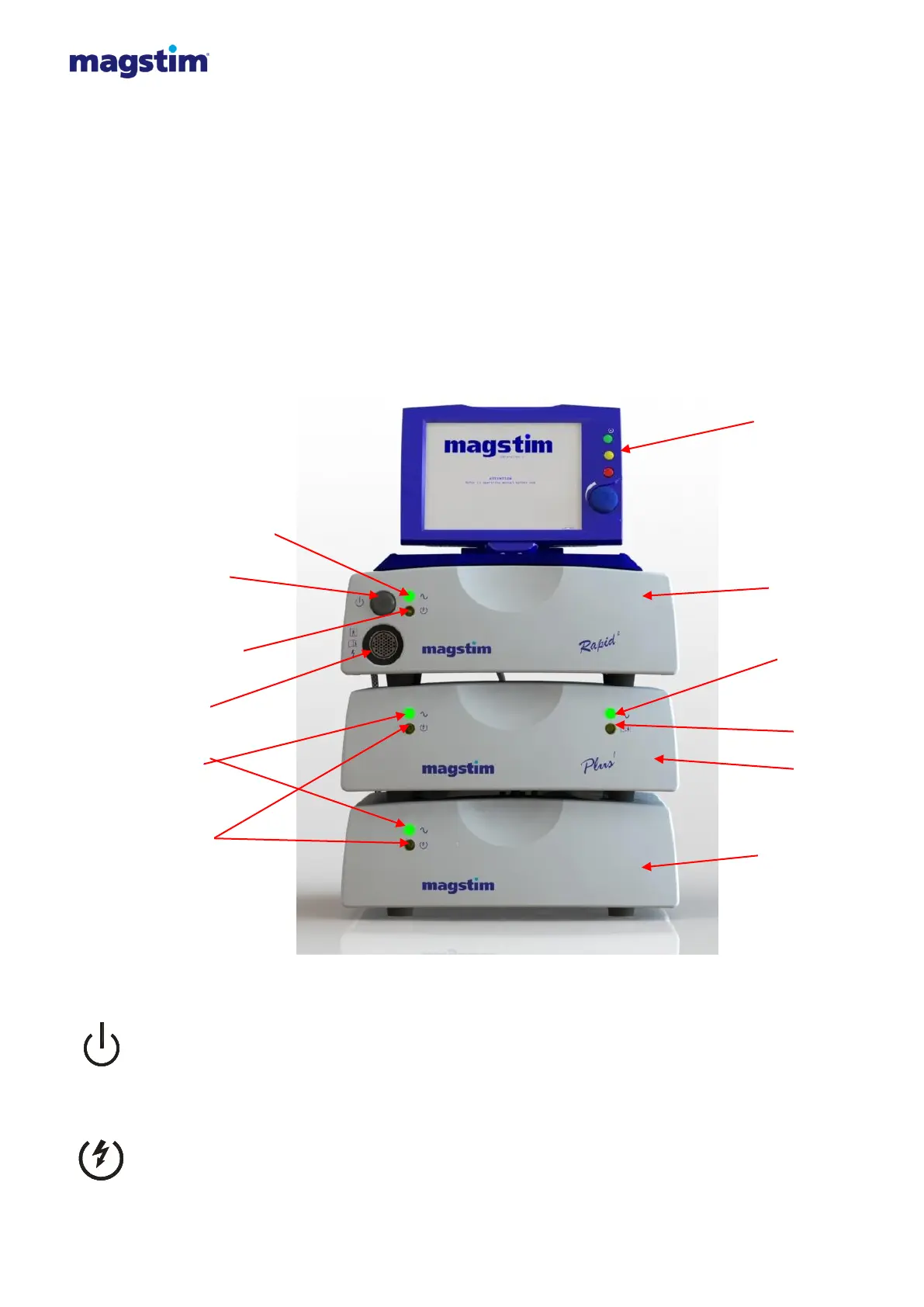

Figure 3.5: Detailed front panel of Rapid² Plus¹.
3.2.1.1 On/Off/Standby* (1)
This switch toggles the operational state of the Rapid
2.
3.2.1.2 Armed Indicator* (2)
The armed indicator illuminates when the unit is armed and high voltages are present on the system.
(1)
(2)
(3)
(4)
(6)
(5)
(9)
(7)
(8)
(10)
(11)
(12)
