Mahindra 3616 User Guide

8
1.Remove the knob.
2.
2. Remove the R.H. lever guide by removing
the four bolts (M6x16mm, M6x20mm) and
a nut (M6).
In the case of gear specifi cations, discon-
nect the harness of the IND PTO switch.
3.
3. Remove the L.H. lever guide by removing
the four bolts (M6x16mm) and a nut (M6).

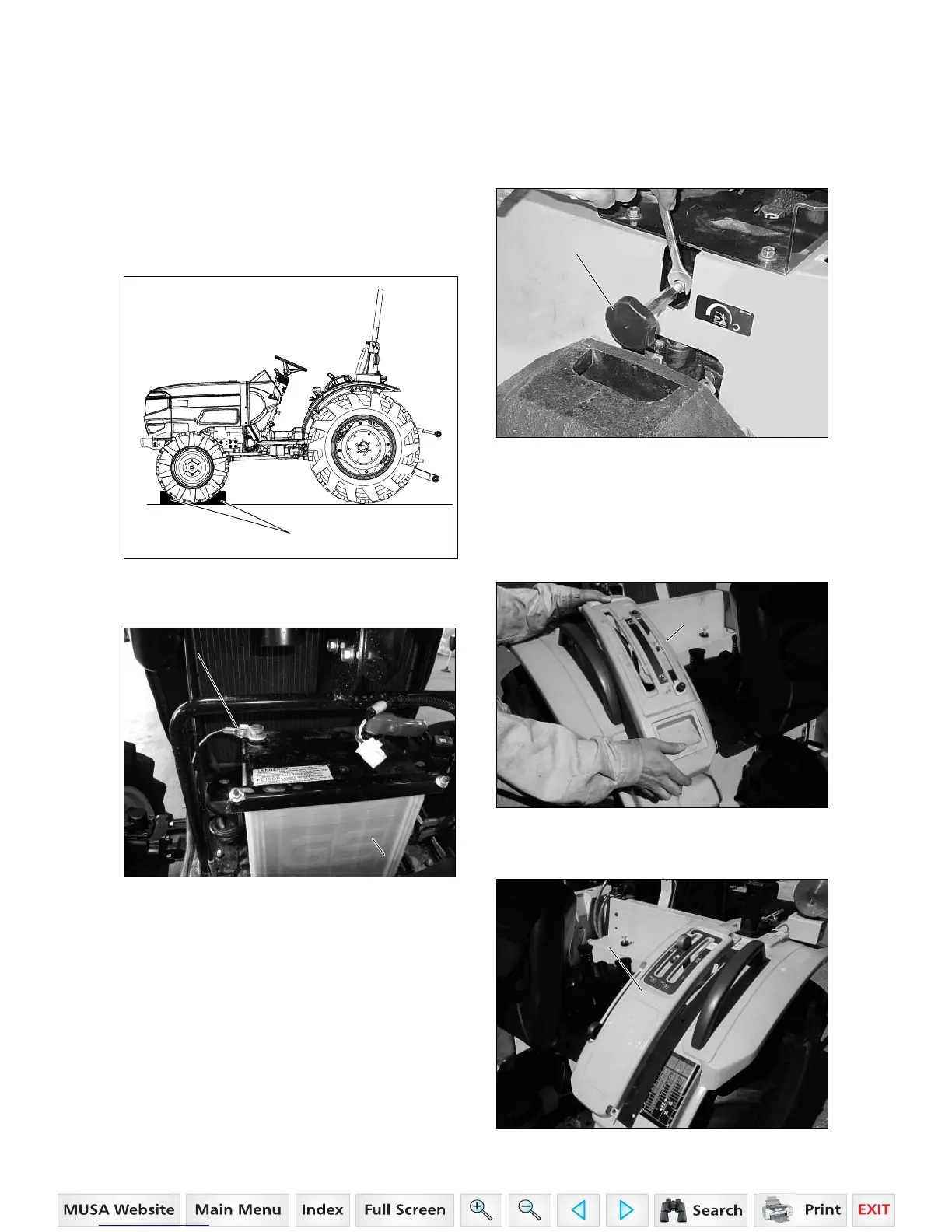

DISASSEMBLING SEAT
BRACKET AND COVER
KNOB
KNOB
R.H. LEVER GUIDE
R.H. LEVER GUIDE
L.H. LEVER GUIDE
L.H. LEVER GUIDE
BEFORE IT WORKS
1. Place the tractor on level and hard ground,
put the range shift lever in LOW position,
apply the park brakes and stop the en-
gine. Put blocks in front of and behind of
the front wheels.
2. Disconnect the ground cable from the bat-
tery.
GROUND CABLE
GROUND CABLE
BATTERY
BATTERY
BLOCKS
BLOCKS

Mahindra 3616 Specifications

General

Engine Power	36 HP
Hydraulic System	Open center
Fuel Capacity	10.6 gallons
Engine Cylinders	3
Fuel Type	Diesel
Drive	4WD
Lift Capacity	2205 lbs
Hydraulic Remotes	1 (standard)
Transmission	8F/8R Synchro Shuttle
Displacement	166.7 cu in
