14

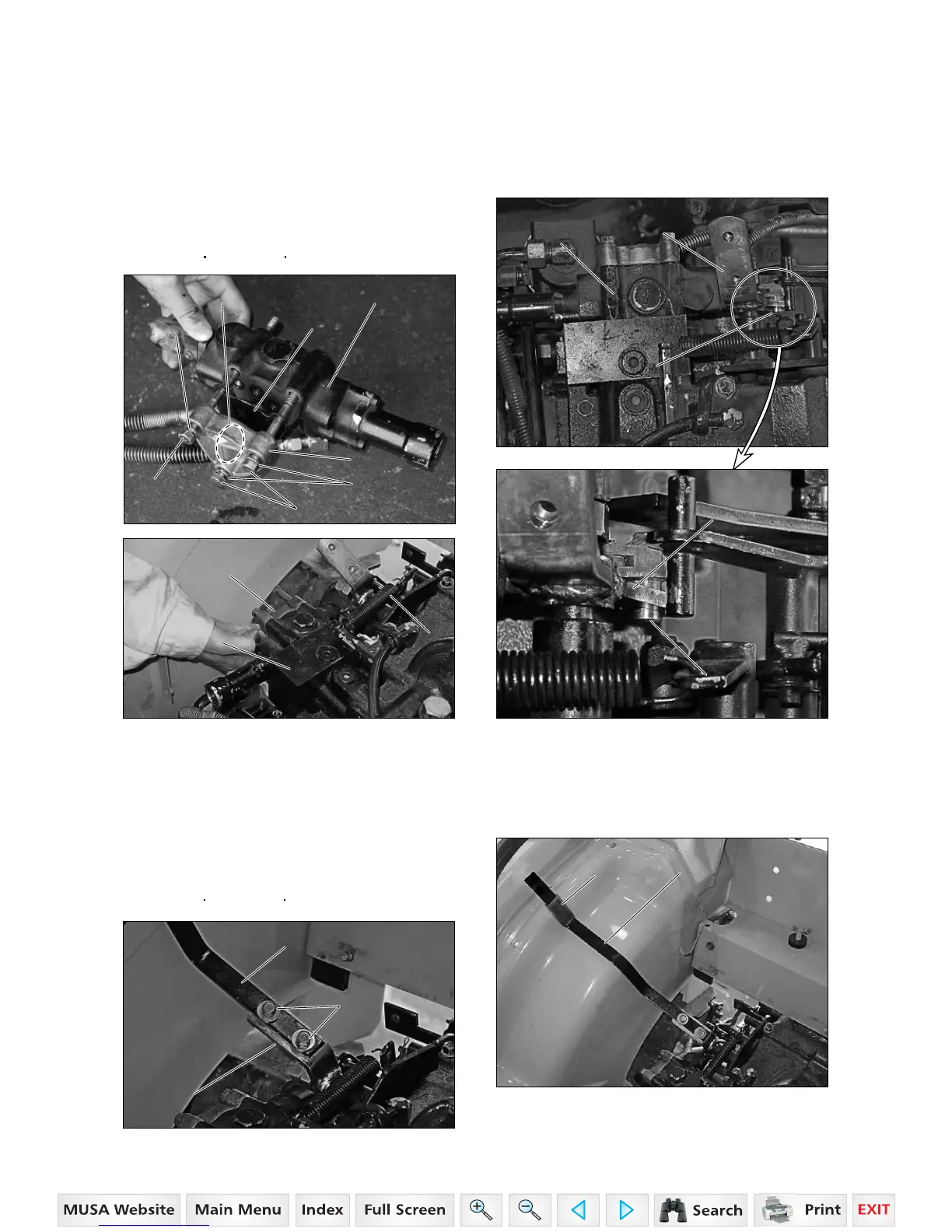

INSTALLING AUX. VALVE ASSEMBLY
1. Install Aux. valve assembly to the block with
three bolts (M8x85mm : 2pcs,M8x140mm
: 1pcs) and three washers.
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
BLOCK
BLOCK
HYDRAULIC
HYDRAULIC
HOUSING
HOUSING
2. Put the pin of Aux. valve assembly into
the hole of Aux. arm.
AUX. VALVE
AUX. VALVE
ASSEMBLY
ASSEMBLY
AUX. VALVE
AUX. VALVE
ASSEMBLY
ASSEMBLY
AUX. ARM
AUX. ARM
PIN
PIN
PIN
PIN
AUX. ARM
AUX. ARM
INSTALLING AUX. LEVER
1. Install Aux. lever to the Aux. arm with two
bolts (M8x25mm).
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
2.Install tube to the Aux. lever.
AUX. LEVER
AUX. LEVER
BOLTS
BOLTS
(M8x25mm)
(M8x25mm)
AUX. LEVER
AUX. LEVER
TUBE
TUBE
AUX. ARM
AUX. ARM
AUX. VALVE BODY
AUX. VALVE BODY
PLATE
PLATE
BOLTS
BOLTS
(M8x140mm)
(M8x140mm)
CAP
CAP
WASHERS
WASHERS
WASHERS
WASHERS
BOLTS(M8x85mm)
BOLTS(M8x85mm)
O-RING(25mm)
O-RING(25mm)

Mahindra 3616 Specifications

General

Engine Power	36 HP
Hydraulic System	Open center
Fuel Capacity	10.6 gallons
Engine Cylinders	3
Fuel Type	Diesel
Drive	4WD
Lift Capacity	2205 lbs
Hydraulic Remotes	1 (standard)
Transmission	8F/8R Synchro Shuttle
Displacement	166.7 cu in
