2.Connect the connector to the switch.

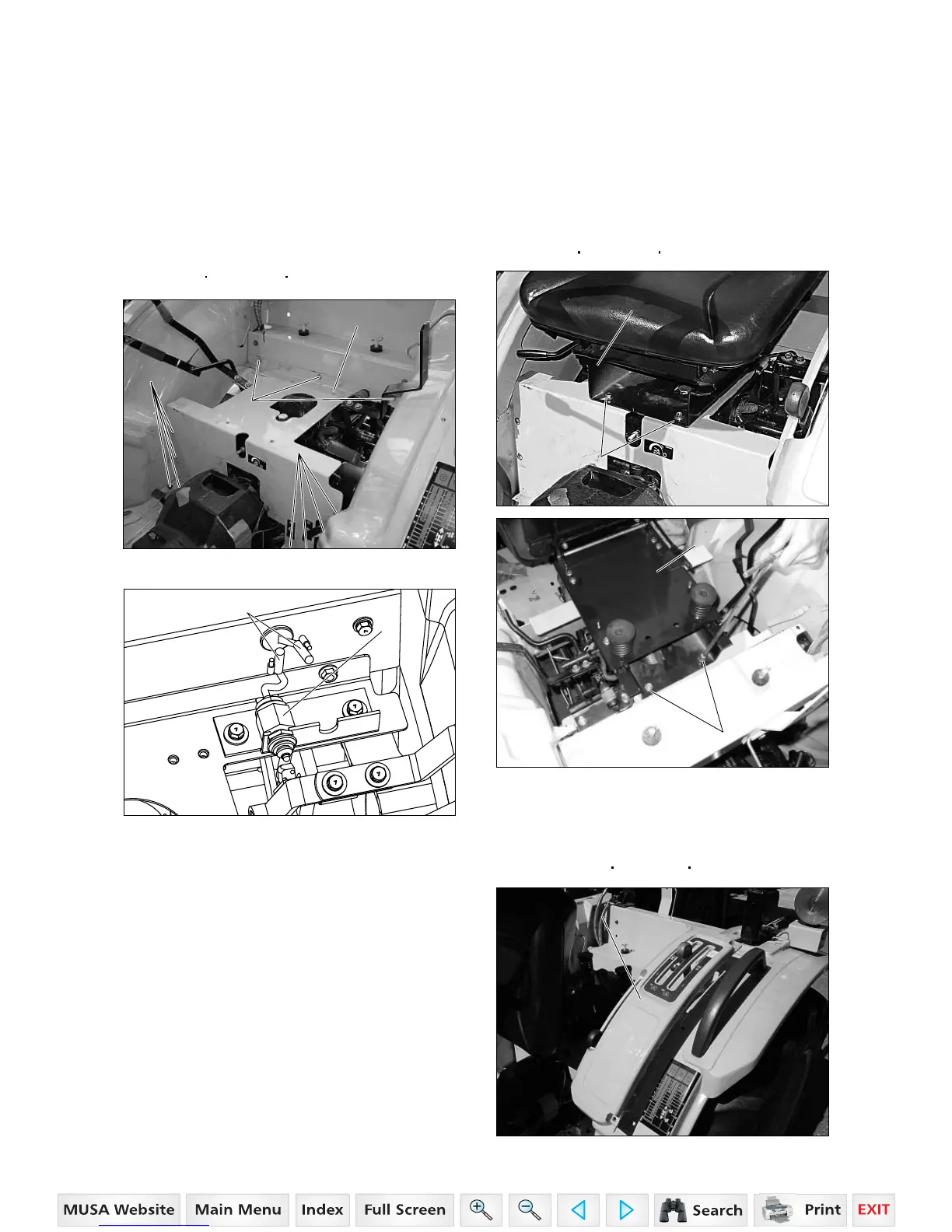

INSTALLING SEAT BRACKET AND COVER
3. Install the seat bracket assembly with four
bolts (M8x16mm).
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
SEAT BRACKET ASSEMBLY
SEAT BRACKET ASSEMBLY
BOLTS(M8x16mm)
BOLTS(M8x16mm)
SEAT BRACKET
SEAT BRACKET
ASSEMBLY
ASSEMBLY
1. Install the cover under the seat bracket
assembly with eight bolts(M8x16mm) and
three nuts (M8).
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
NUTS
NUTS
BOLTS
BOLTS
BOLTS
BOLTS
COVER
COVER
BOLTS(M8x16mm)
BOLTS(M8x16mm)
4.
4. Install the L.H. lever guide with four bolts
(M6x16mm,M6x20mm) and a nut (M6).
Tighten the bolts and nut to the following
torque.7-9Lbfft (10-12Nm)
L.H. LEVER GUIDE
L.H. LEVER GUIDE
SWITCH
SWITCH
CONNECTOR
CONNECTOR
