Mahindra 3616 User Guide

10

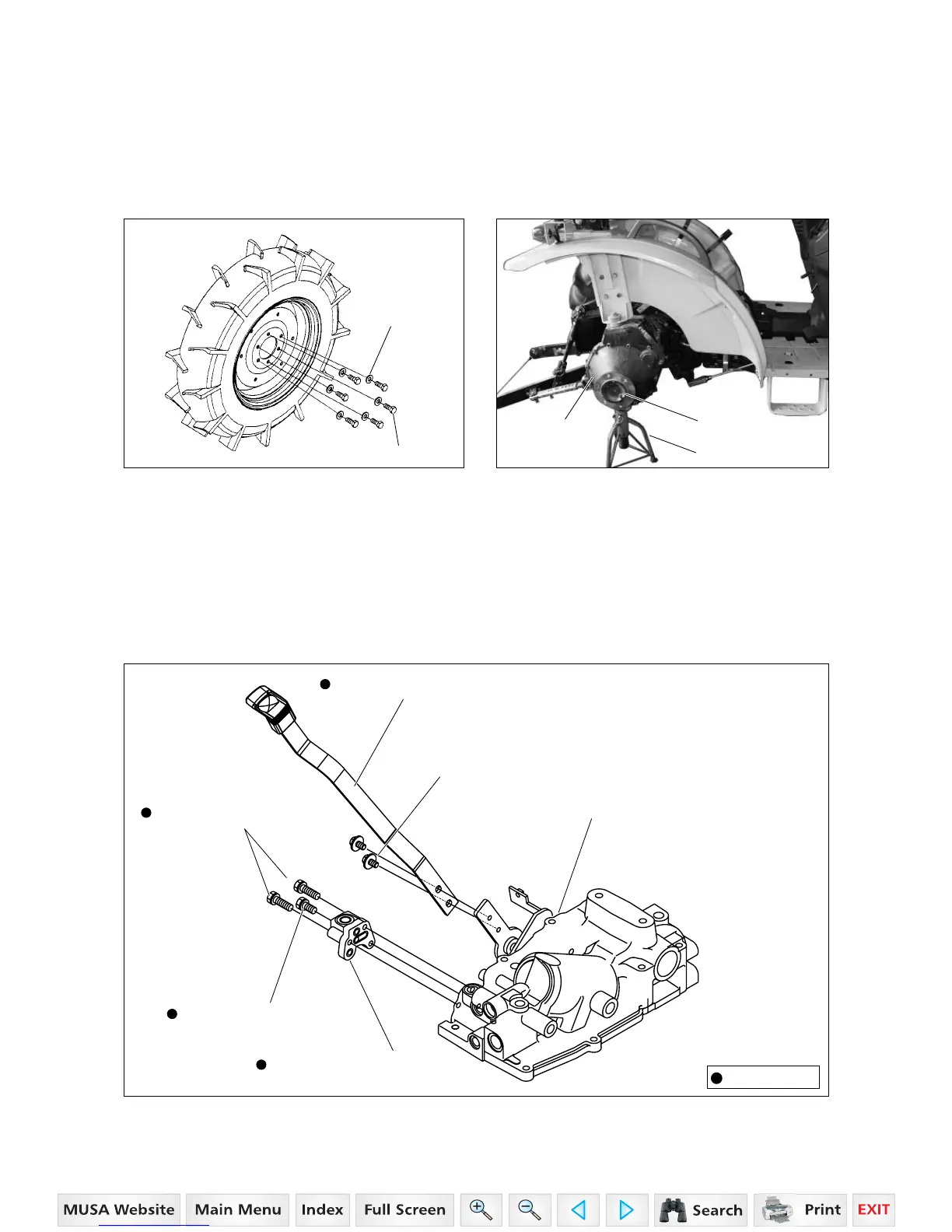

DISASSEMBLING REAR WHEEL R.H.
1. Jack up the R.H. rear axle and remove the R.H. rear wheels by removing the six bolts
(M14x30mm), six washers from the axle hub.
WASHERS
WASHERS
BOLTS
BOLTS
BOLTS(M8x60mm)
BOLTS(M8x60mm)
POSITION CONTROL LEVER
POSITION CONTROL LEVER
BOLTS(M8x16mm)
BOLTS(M8x16mm)
HYDRAULIC HOUSING
HYDRAULIC HOUSING
BOLTS(M8x30mm)
BOLTS(M8x30mm)
HYDRAULIC BLOCK
HYDRAULIC BLOCK
AXLE HUB
AXLE HUB
REAL AXLE
REAL AXLE
JACK
JACK
DISCONNECTING LEVER AND HYDRAULIC BLOCK
1. Remove the position control lever by removing the two bolts (M8x16mm) from the hydrau-
lic housing.
2. Remove the hydraulic block by removing the three bolts (M8x60mm:2pcs,M8x30mm:1pcs)
from the hydraulic housing.
is not used.
is not used.

Mahindra 3616 Specifications

General

Engine Power	36 HP
Hydraulic System	Open center
Fuel Capacity	10.6 gallons
Engine Cylinders	3
Fuel Type	Diesel
Drive	4WD
Lift Capacity	2205 lbs
Hydraulic Remotes	1 (standard)
Transmission	8F/8R Synchro Shuttle
Displacement	166.7 cu in
