15

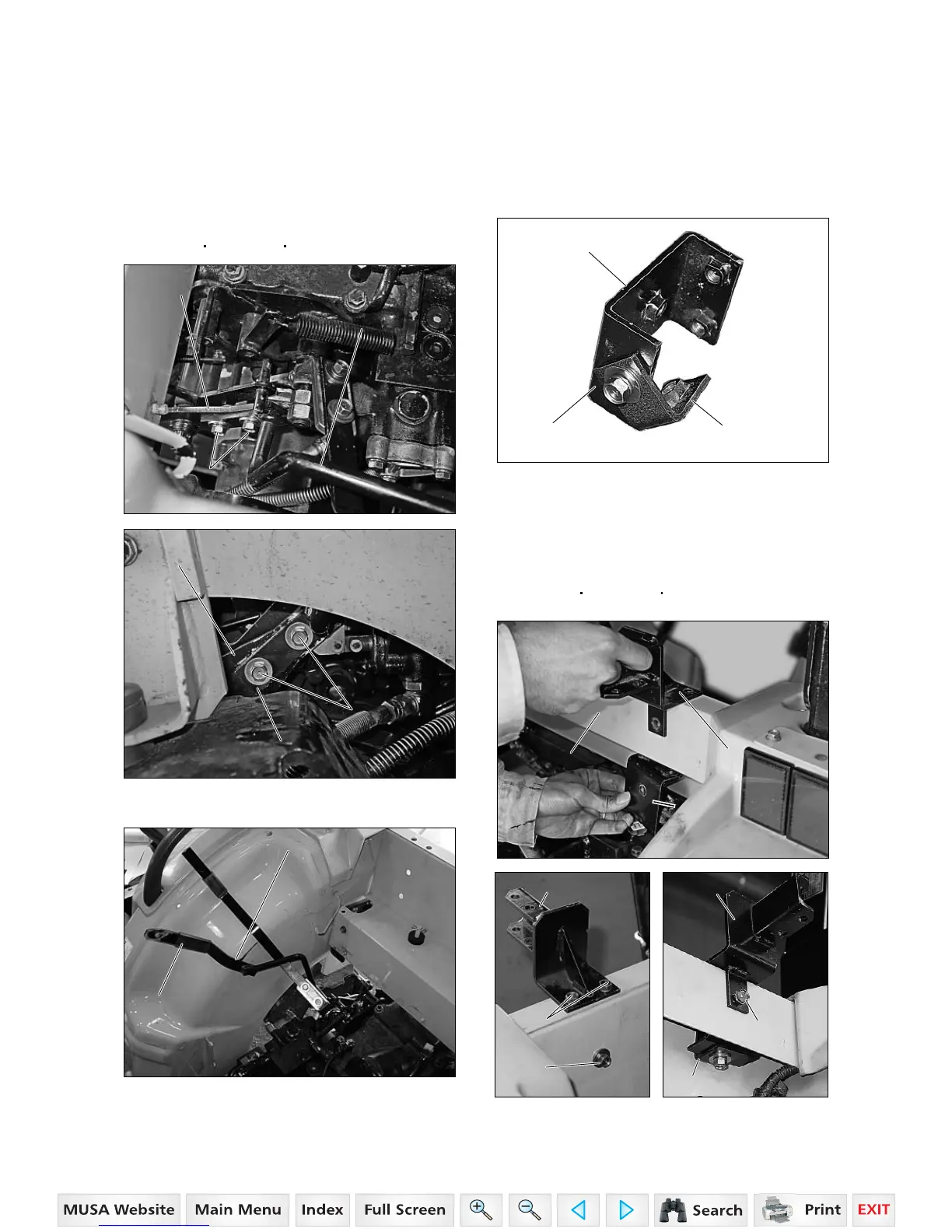

INSTALLING POSITION
CONTROL LEVER
1. Install position control lever to the position
arm with two bolts (M8x25mm).
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
2.Install tube to the position control lever.
INSTALLING BRACKET
1. Install bracket (C) to the bracket (B) with
bolt (M8x16mm).
2. Install bracket (A) and bracket (B),(C) to
the center cover with four bolts (M8x20 mm
: 3pcs, M8x16mm:1pcs).
Tighten the bolts to the following torque.
18-22Lbfft (25-29Nm)
BOLTS
BOLTS
POSITION CONTROL
POSITION CONTROL
LEVER
LEVER
POSITION ARM
POSITION ARM
BOLTS
BOLTS
POSITION CONTROL LEVER
POSITION CONTROL LEVER
POSITION ARM
POSITION ARM
POSITION CONTROL LEVER
POSITION CONTROL LEVER
TUBE
TUBE
BRACKET (C)
BRACKET (C)
BRACKET (B)
BRACKET (B)
BOLT
BOLT
(M8x16mm)
(M8x16mm)
BRACKET (A)
BRACKET (A)
BRACKET (B),(C)
BRACKET (B),(C)
CENTER COVER
CENTER COVER
BRACKET (B),(C)
BRACKET (B),(C)
BOLT
BOLT
(M8x20mm)
(M8x20mm)
BOLT
BOLT
(M8x16mm)
(M8x16mm)
BOLT
BOLT
(M8x20mm)
(M8x20mm)
BRACKET (A)
BRACKET (A)
BRACKET (A)
BRACKET (A)

Mahindra 3616 Specifications

General

Engine Power	36 HP
Hydraulic System	Open center
Fuel Capacity	10.6 gallons
Engine Cylinders	3
Fuel Type	Diesel
Drive	4WD
Lift Capacity	2205 lbs
Hydraulic Remotes	1 (standard)
Transmission	8F/8R Synchro Shuttle
Displacement	166.7 cu in
