► ADJUSTING THE BRAKES
As is the case with the clutch, use of the brakes will
chan
g
e the
p
edal free
p
la
y
and the balance between

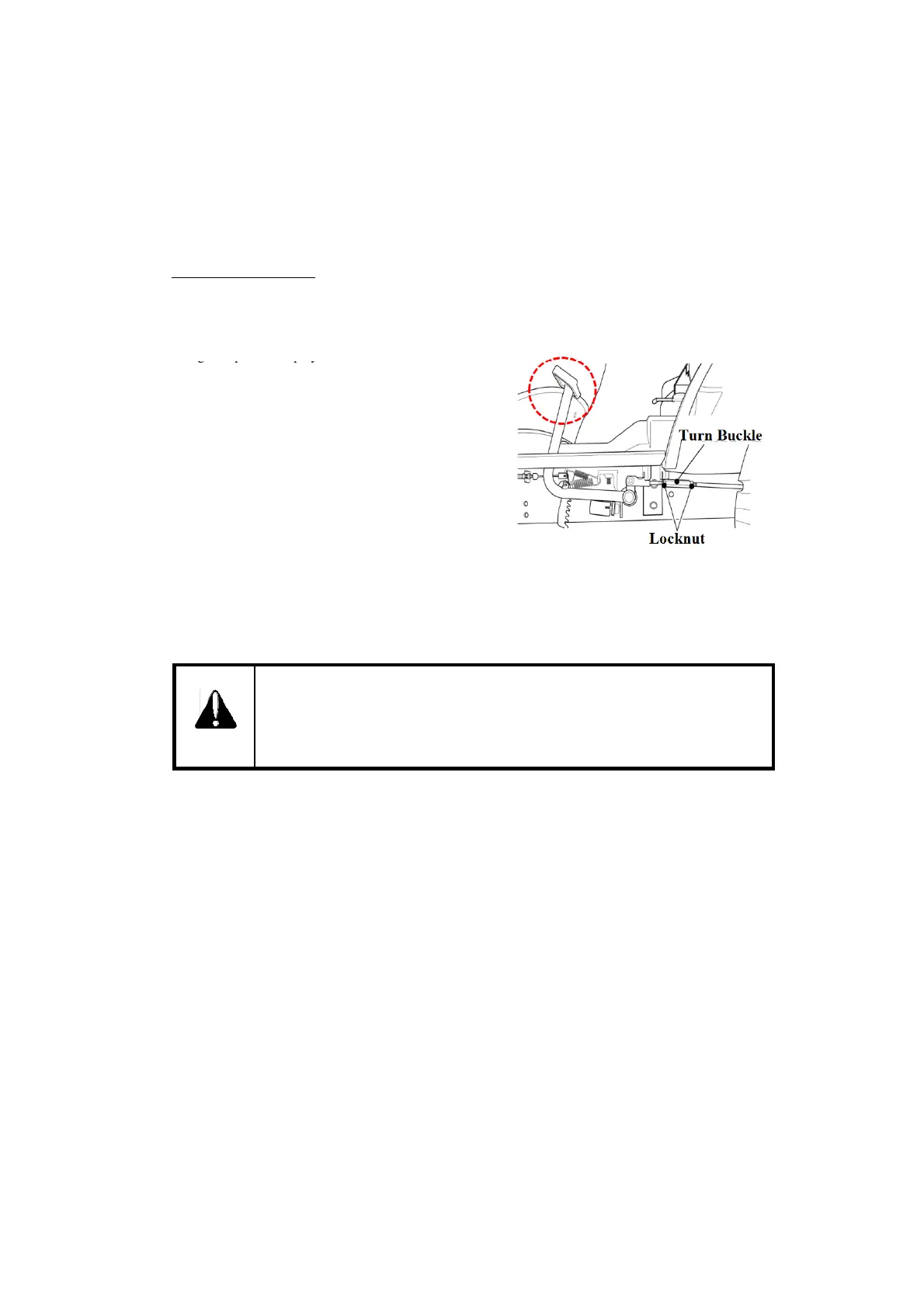

► GAP ADJUSTMENT
gp py
the right and left pedal.
The correct pedal free play is 30~40mm(1.18~ 1.57 in.)
■ Adjusting Method
Loosen the locknuts to adjust the brake.
T rn the t rnb ckle co nterclock ise to increase the
T
u
rn
the
t
u
rnb
u
ckle
co
u
nterclock
w
ise
to
increase
the
free play, or turn the turnbuckle clockwise to decrease.
Tighten the locknut and confirm, to fix the nuts.
Check that the free play is correct and the same on both
pedals to ensure even braking.
An uneven adjustment of the left and right pedal will result in one sided braking
when the pedals are connected and can cause serious accidents, especially at high
speeds.
Double check to ensure that free play is the same on both pedals.
Caution
► ADJUSTING THE THROTTLE LEVER
If this level is either loose or difficult to move please consult your dealer for rectification of the problem.
► ADJUSTING TOE-IN
If the toe-in adjustment is incorrect, it can cause the severe shaking of both the steering wheel and the
entire tractor. The correct toe in is 0.08~0.24in.
We recommend that this adjustment is made by the dealer.
