23-4
Mahindra USA, Inc. All Rights Reserved.
23.5 Check Differential Oil Levels and Leak Check
Before checking the front and rear differential oil levels, warm
them up. This is done by driving the ROXOR for 10-15 minutes.
Only perform when the ROXOR is on level ground or support. Do
not use an impact wrench to remove the differential oil level plugs,
this may damage the threads in the differentials resulting in a leak.

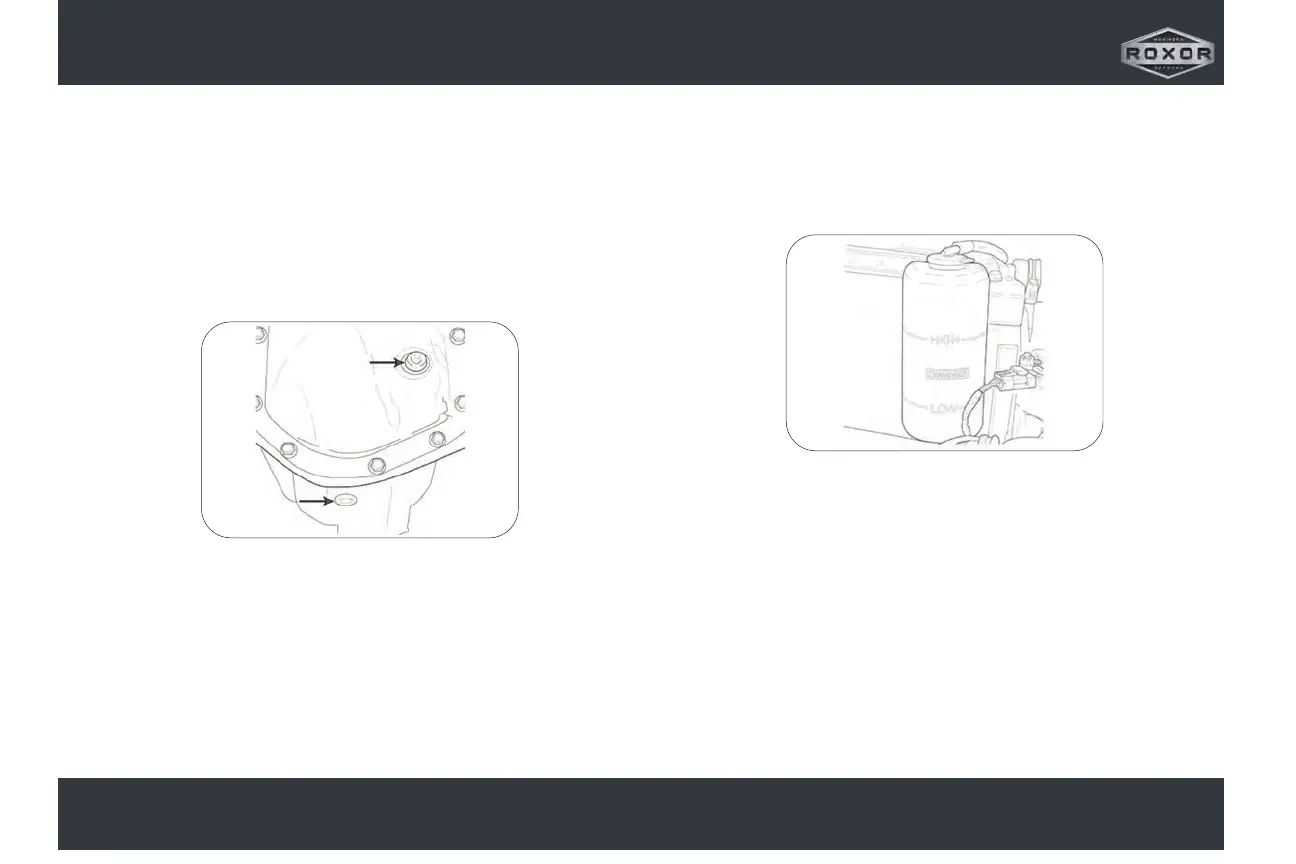

1. Clean the front and rear upper differential oil level plugs and
surrounding areas. (Refer the below image)
2. Remove front or rear upper differential oil level plug and
verify oil is dripping out.
3. If oil is not dripping out, oil level is below the required level.
4. Add recommended oil until it begins dripping out.
5. Install and tighten the oil level plug.
23.6 Check Engine Coolant Level and Leak Check
The engine coolant level should be checked when the engine is at
ambient (room) temperature. Maintain the coolant level between
the HIGH and LOW lines on the coolant overflow bottle (Refer the
below image).
If a leak is suspected, open the hood and check the radiator,
radiator hoses and radiator hoses connected to the engine.
1. Unlatch and lift the hood, then place prop rod.
2. Push down, then slowly turn the cap counter clockwise.
3. Coolant level should be near the top of the opening.
4. If low, use a funnel and slowly add coolant as needed.
5. Reinstall the cap turning it clockwise.
Maintenance Procedures
