Mahr GmbH, MarSurf PS 10

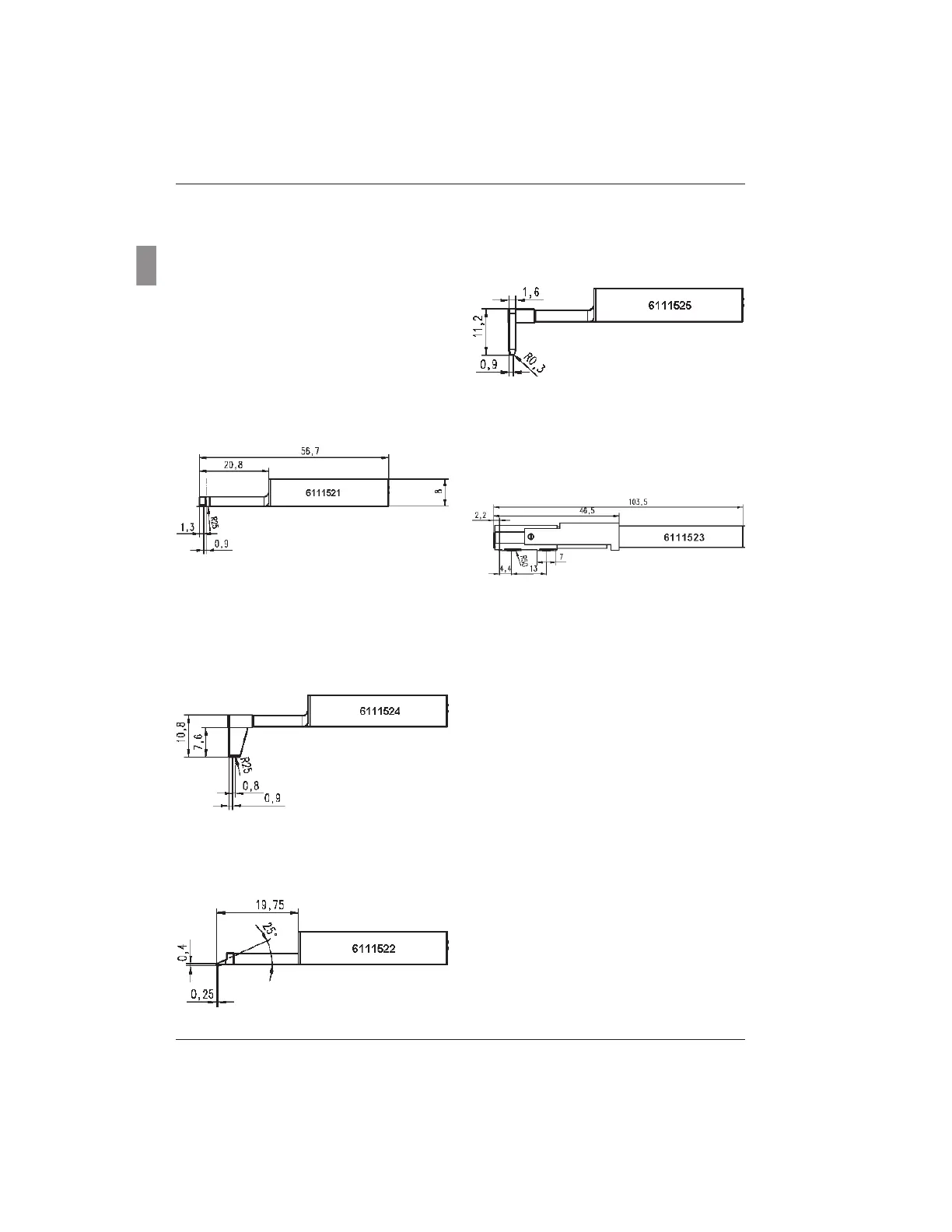

6111525 Probe PHTR 100,
single-skid probe with side skid,
measuring range 100 µm (0.004 in),
for measurements on concave and
convex surfaces
6111523 Probe PT 150,
dual skid probe,
measuring range 150 µm (0.006 in),
for measurements on metal sheets
and roller surfaces as per DIN EN
10049 (SEP)
6850540 Probe extension for PHT probes,
length 80 mm (3.15 in),
for measurements in bores from
9 mm (0.354 in) Ø (with PHT 3-350
probe)
6850716 Probe protection, steel, for bores
from 10 mm (0.394 in) Ø
6850715 Probe protection with vee-block
base, steel,
for measurements on cylindrical
workpieces
7028532 Probe protection, plastic, for bores
from 10 mm (0.394 in) Ø
7028530 Probe protection with vee-block
base, plastic,
for measurements on cylindrical
workpieces
6111526 Probe PHT 6-350,
single-skid probe,
stylus tip radius 5 µm,
measuring range 350 µm (0.014 in),
for measurements on level surfaces,
in bores from 6 mm (0.236 in) Ø to
17 mm (0.669 in) deep, in grooves
from 3 mm (0.118 in) wide
6111521 Probe PHT 3-350,
single-skid probe,
measuring range 350 µm (0.014 in),
for measurements in bores from
3 mm (0.118 in) Ø to 17 mm
(0.669 in) deep
6111524 Probe PHT 11-100,
single-skid probe, angled,
measuring range 100 µm (0.004 in),
for measurements in deep measur-
ing positions, e.g. in grooves from
2.5 mm (0.098 in) wide to 7.5 mm
(0.295 in) deep
6111522 Probe PHTF 0.5-100,
single-skid probe,
measuring range 100 µm (0.004 in),
for measurements on tooth sides
