4.2 Hardware Orientation
4.2.1 easyTone Device

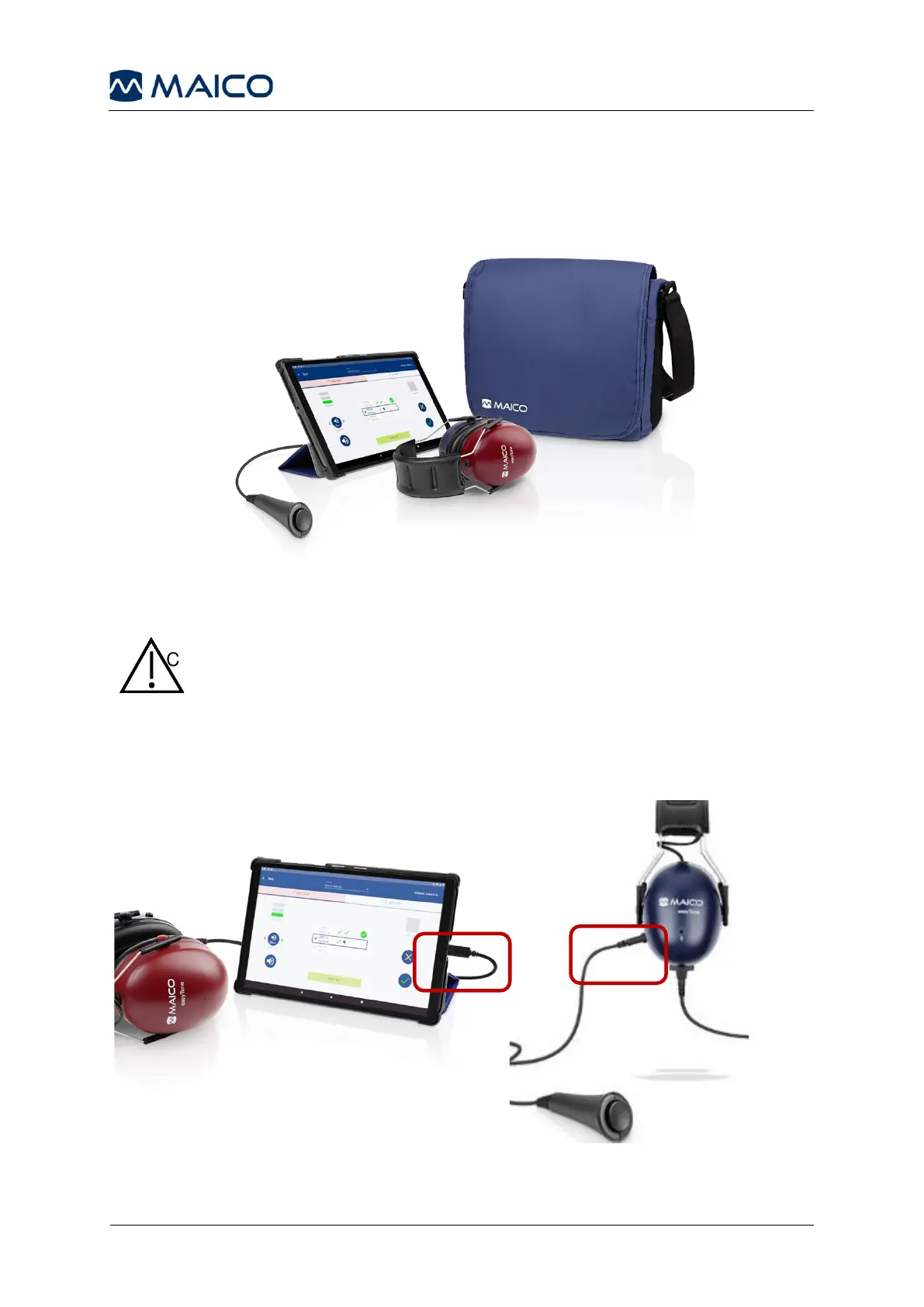

Figure 4 shows the easyTone headphones, the tablet, the optional patient response
switch and the carrying bag.
Figure 4
4.2.2 Connections
Insert plugs with care into the appropriate connection. Do not
wiggle the plug or pull with force while connected.
Disconnect plugs cautiously.
The audiometer headphones are connected to the tablet via the USB-C connection
(Figure 5). Insert the plug of the optional patient response switch into the socket on the
handset (Figure 6).
Figure 5
Figure 6
CAUTION
