Maico easyTymp User Manual

Operation Manual easyTymp
8111254 Rev. 9
55
17/01/2018

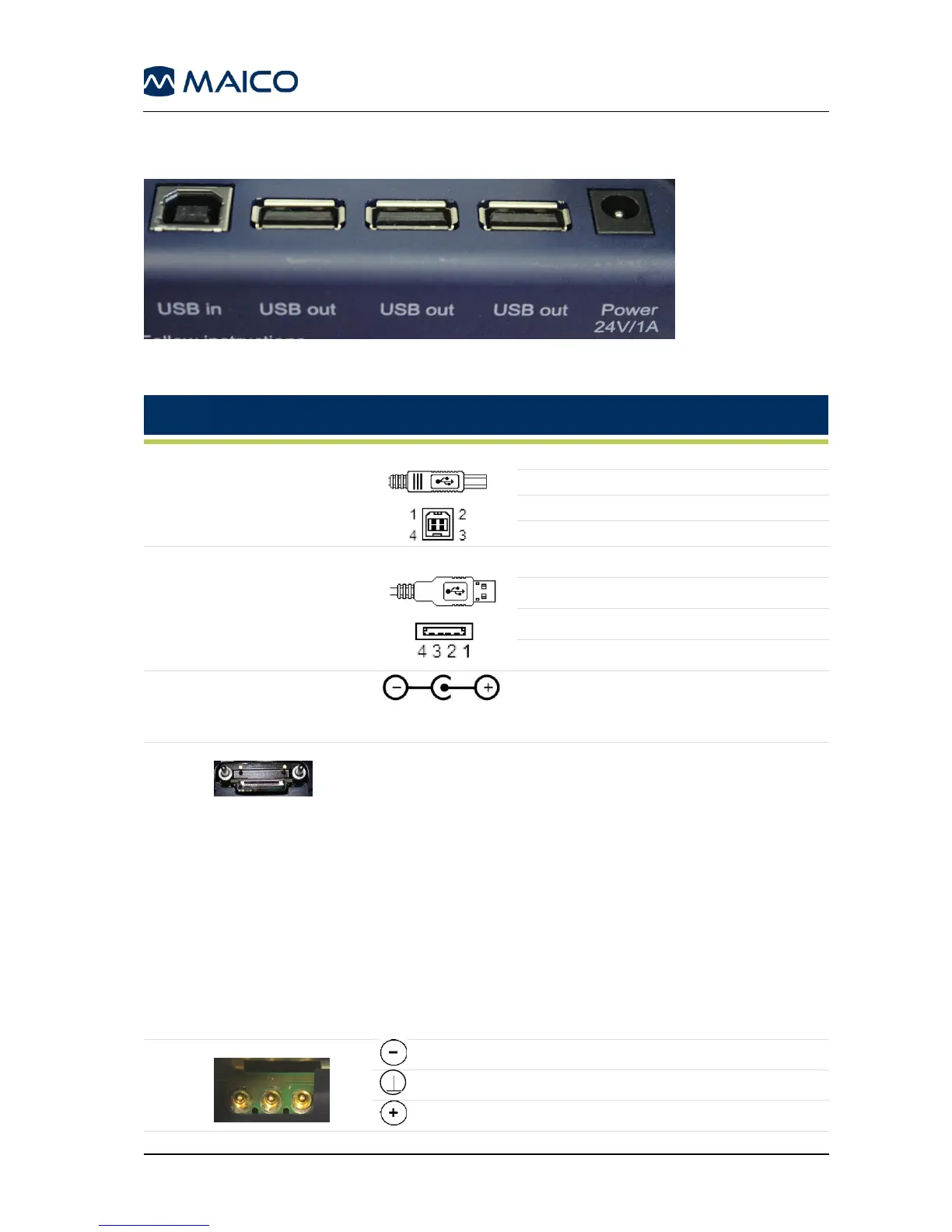

Cradle
Figure 75
Table 7 Pin Assigment Cradle
NO.
CONNECTOR
TYPE
PIN ASSIGNMENT
1
USB in
USB 2.0
1. +5 VDC
2. Data -
3. Data +
4. Ground
2 to 4
USB out
USB 2.0
1. +5 VDC
2. Data -
3. Data +
4. Ground
5
Mains
DC socket
24 V/3 A
-
Data connector
Data connector,
30-pole
STAT2_HH
Cradle+5V
Cradle+5V
Cradle+5V
DGND
DGND
DGND
USB+5V
USBDP
USBDN
Temp.bat
PRT_BUSY
IC33-NO2
PRT_ACK/U2RX
TP116 IC33-NO1
TRIGGER-OUT2
RESET#
TRIGGER-IN2
KEY_DOWN /
POWER ON
Vbat
PRT_ACK/U2RX
Strobe#
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
-
Charging connector
- pole
ground
+ pole
1
2
3
4
5
4
5
