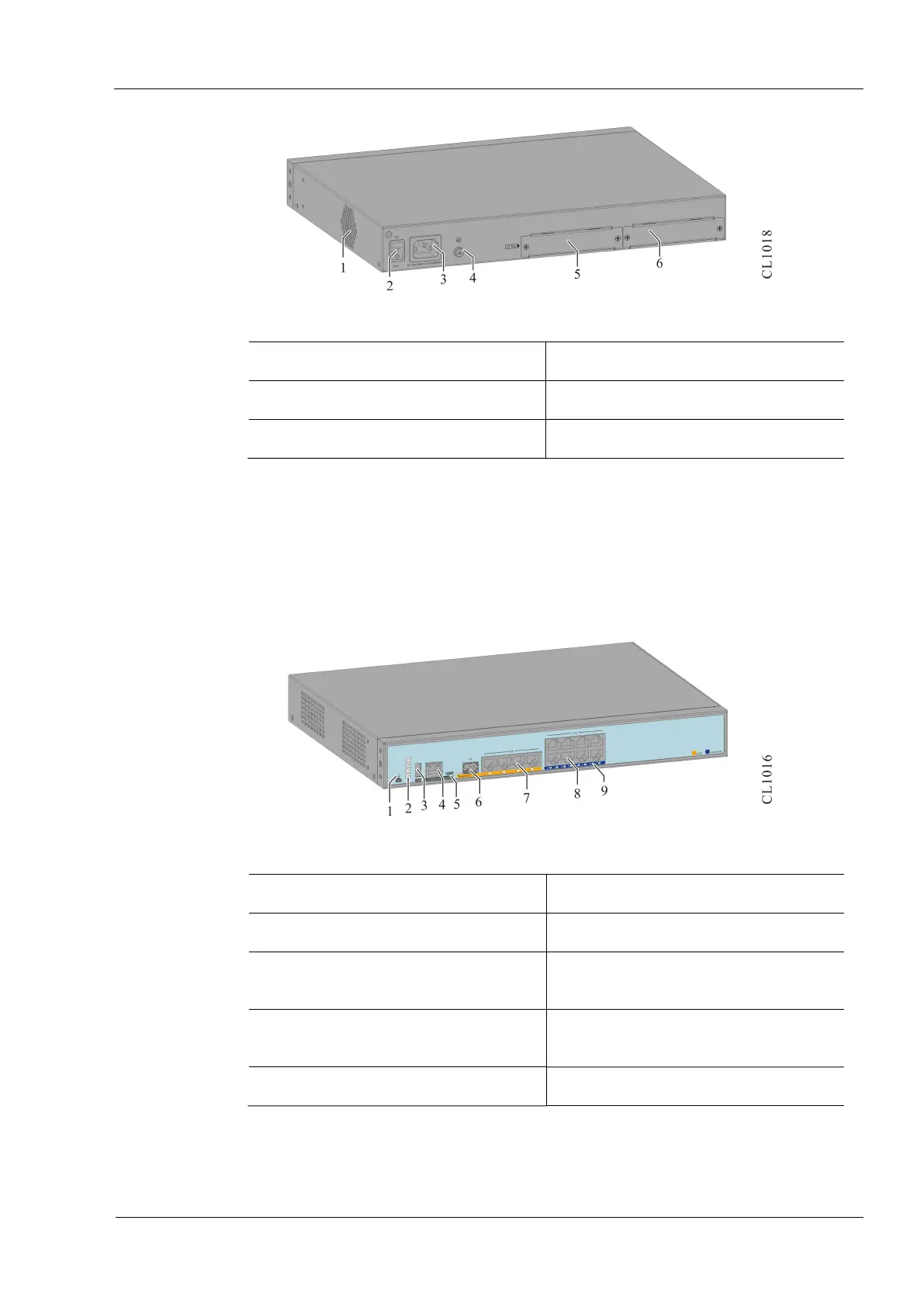

Figure 1-2 The rear appearance diagram of MP1900X-12-AC
1. Fan outlet 2. Power switch
3. Power socket 4. Grounding screw
5.S1 slot of RM2B interface sub card 6.S2 slot of RM2B interface sub card
1.2 MP1900X-22-AC Appearance and Hardware Structure
The dimension of MP1900X-22-AC is 340mm × 260mm × 44.2mm (W x D x H).
The front appearance diagram of MP1900X-22-AC is shown in Figure 1-3, and
the rear appearance diagram is shown Figure 1-4.
Figure 1-3 The front appearance diagram of MP1900X-22-AC
1. Reset button 2. Function status indicator
3.USB interface 4.RJ45 CONSOLE port
5.USB CONSOLE port 6.1000Base-X SFP Ethernet optical
interface
7.1000Base-T Ethernet electrical
interface
8.1000Base-T Ethernet electrical
interface
9. Port status indicator
