MP1900X Series Router Installation Manual Router Introduction
copyright2019 Maipu, all rights reserved
1-1
1 Router Introduction
MP1900X series router is a desktop access router independently developed by
Maipu, which includes two product models: MP1900X-12-AC and
MP1900X-22-AC.
This chapter mainly describes the specifications of MP1900X series router.
1.1 MP1900X-12-AC Appearance and Hardware Structure
The dimension of MP1900X-12-AC is 340mm × 260mm × 44.2mm (W x D x H).
The front appearance diagram of MP1900X-12-AC is shown in Figure 1-1, and
the rear appearance diagram is shown Figure 1-2.

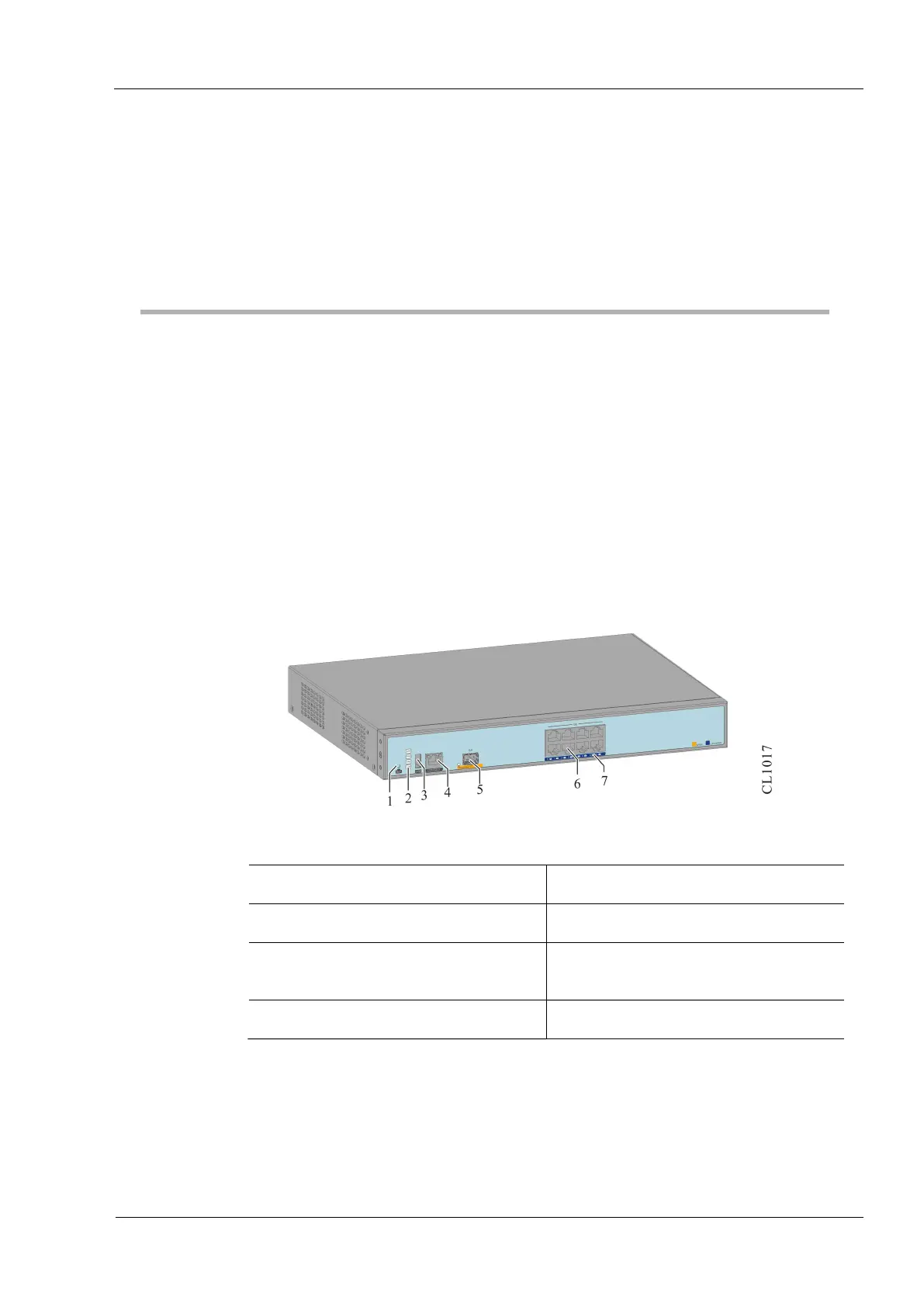

Figure 1-1 The front appearance diagram of MP1900X-12-AC
1. Reset button 2. Function status indicator
3.USB interface 4.RJ45 CONSOLE port
5.1000Base-X SFP Ethernet optical
interface
6.1000Base-T Ethernet electrical
interface
7. Port status indicator
