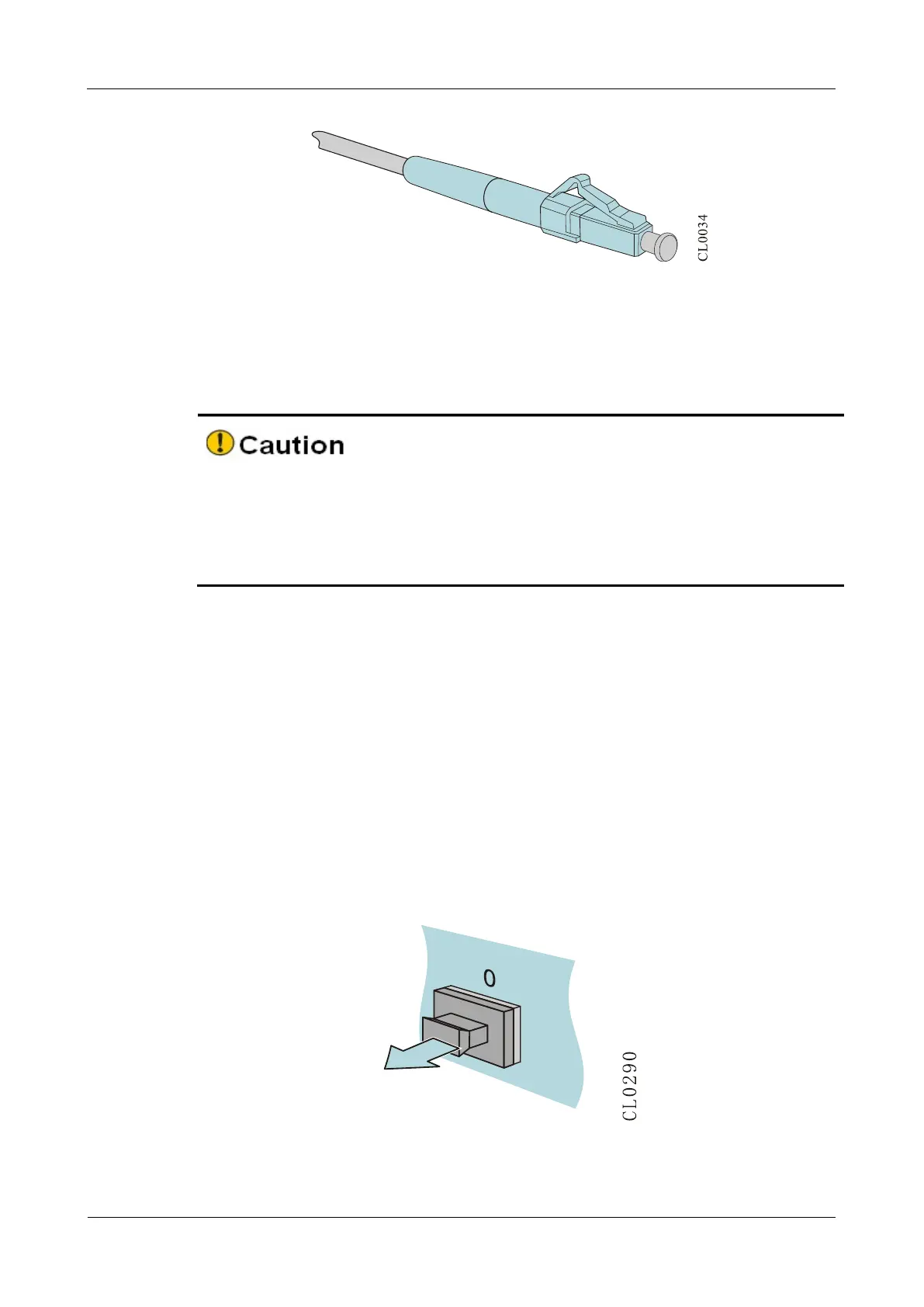

Figure 4-11 Appearance of the LC fiber connector
Install Optical Module
The MP2900 router only supports the SFP optical module and the SFP optical module
is installed as follows:
When installing the SFP module, do not use the hands to touch the gold-finger of
the SFP module directly.
The TX wire should be connected to the RX wire of the peer router; the RX wire
should be connected to the TX wire of the peer router.
Step 1:
Wear the anti-static wrist and confirm that the anti-static wrist is well contacted with the
skin and well-grounded.
Step 2:
Pull out the dust plug on the optical interface of the router, as shown in Figure 4-12.
Step 3:
Get the SFP module out from the packing box. The appearance of the SFP module is as
shown in Figure 4-13. Use the hands to hold the two sides of the SFP module and push
it into the interface slot of the router horizontally until the SFP module is close-contact
with the slot (you can feel that the shrapnel at the top and bottom of the SFP module
stuck the interface slot), as shown in Figure 4-14.
Figure 4-12 Pull out the dust plug
