8.4. Drawing

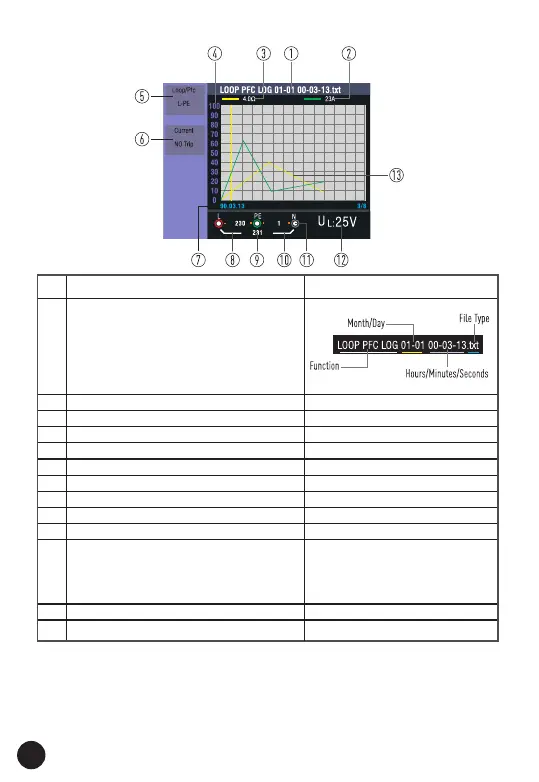

No. Annunciator Meaning
1 File Name File Named:
2 Primary display & measurement units.
3 Primary display & measurement units.
4 Coordinate
5 Function
6 Function
7 Hours/Minutes/Seconds Record time
8 L-FE Value
9 L-N Value
10 FE-N Value
11 Arrows above or below the terminal
indicator symbol indicate reversed
polarity. Check the connection or
check the wiring to correct.
12 UF Value
13 Main display curve
8.5. Datalog Color
WARNING: Measurements should only be performed on de-energized
circuits.
WARNING: Measurements may be adversely affected by impedances or
parallel circuits or transient currents.
