Make Noise SOUNDHACK MORPHAGENE - Module Installation Guide; Electrocution Hazard Warning

Always turn the Eurorack case o and unplug the power cord before plugging or unplugging any Eurorack
bus board connection cable cable. Do not touch any electrical terminals when attaching any Eurorack bus
board cable.
The Make Noise Morphagene is an electronic music module requiring 165 mA of +12VDC and 20 mA of
-12VDC regulated voltage and a properly formatted distribution receptacle to operate. It is designed to be
used within the Eurorack format modular synthesizer system. Go to
http://www.makenoisemusic.com/systems.shtml for examples of Eurorack Systems and Cases.

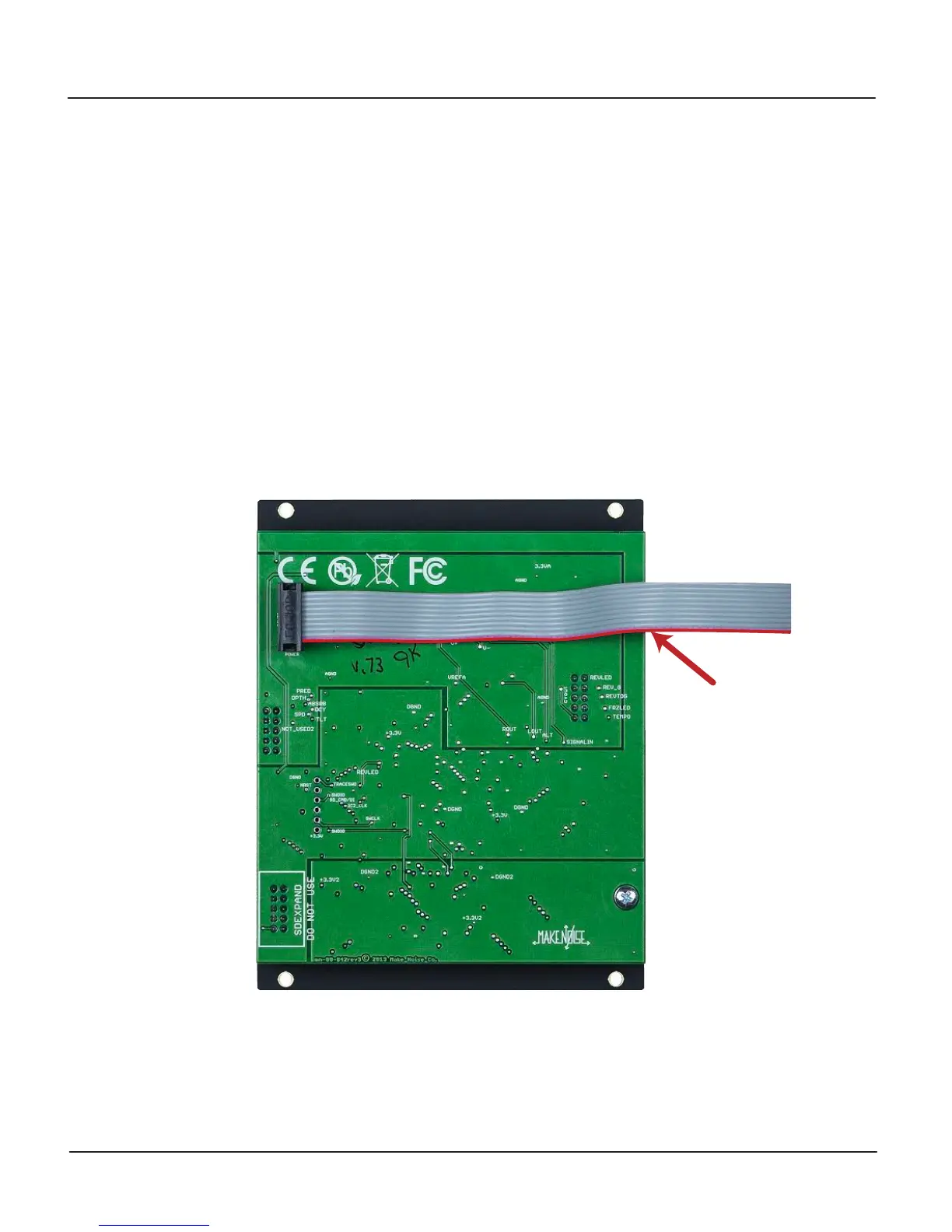

To install, nd necessary space in your Eurorack synthesizer case, conrm proper installation of included
eurorack bus board connector cable on backside of module (see picture below), plug the bus board
connector cable into the Eurorack style bus board, minding the polarity so that the RED stripe on the cable is
oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U
Busboard, the NEGATIVE 12 Volt line is indicated by the white stripe.
5
-12V
Electrocution hazard!
Please refer to your case manufacturers’ specications for location of the Negative supply.
Installation
