Panel Controls

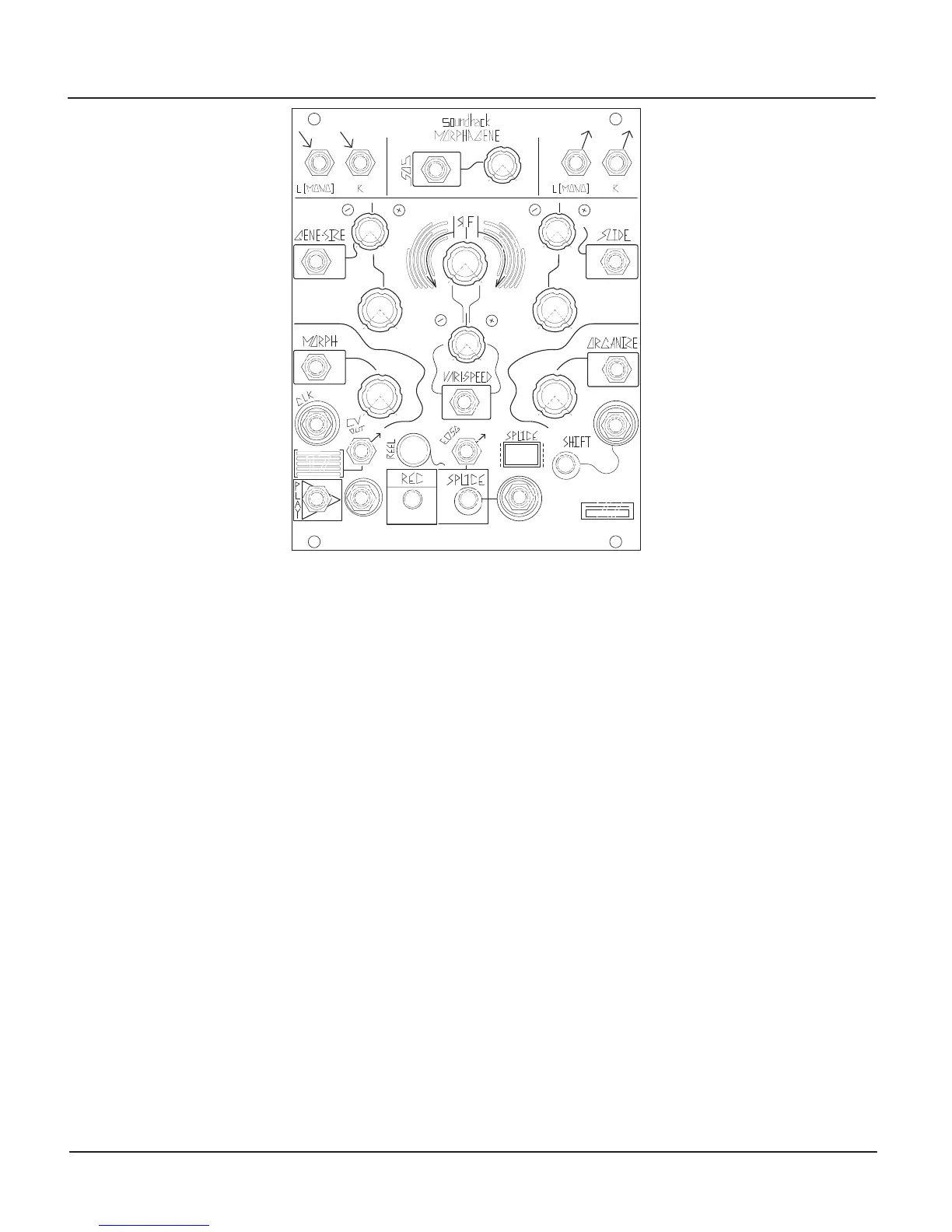

Morphagene Panel Controls
1 + 2 :
Audio In A & B: Line Level to Modular level signal. AC coupled. No analog input gain/ attenuation control. Signals may be
leveled using Automatic Leveling (see Page 7).
3. Sound On Sound CV IN: Uni-polar control input for the Sound On Sound (S.O.S.) parameter. Range 0V to 8V, linear response.
Normalized to +8V.
4 : Sound On Sound (S.O.S.) Combo Pot: Sets mix of previously recorded Loop with Live Signal input allowing for Sound on
Sound. With nothing patched to S.O.S. CV IN, works as standard panel control for S.O.S. parameter. With Signal patched to S.O.S.
CV IN, works as attenuator for that signal.
5 + 6 : Audio Out A & B: Typically 10Vpp; AC coupled.
7. Gene-Size Panel Control: Manual unipolar control which nondestructively changes the “playback window” from the full Splice
when full counter clockwise, to extremely short (potentially inaudible) at full clockwise (see Page 23).
8. Gene-Size CV IN: Bi-polar control input which sets Gene-Size. Range 0V to +8V.
9. Gene-Size CV IN Attenuator: Bi-polar attenuator for Gene-Size.
10. Vari-Speed Bipolar Panel Control: Manual bipolar speed and direction control. When set to 12:00, playback is stopped.
Turning clockwise from 12:00 increases playback speed in forward direction. Turning counter clockwise from 12:00 increases
playback speed in reverse direction.
11. Var-Speed Activity Windows: Indicates Speed, Direction, and Morph settings (see Page 17).
12. Vari-Speed CV Input: Bipolar speed and direction control input. Range +/-4V.
13. Vari-Speed CV Input Attenuvertor: Bipolar attenuator for Vari-Speed CV IN.
14. Morph Panel Control: Manual unipolar control which allows Genes to be staggered, stacked, and layered (see Page 17).
2
1
3
4
5
6
7
8
9
10
12
33
34
32
14
15
16
17
18
19
13
24
25
21
20
23
26
30
31
29
28
27
22
11
