MAKELSAN BOXER SERIES - User Panel Controls and Display

BOXER SERIES 10-20 KVA PRODUCT DESCRIPTION
AG-SD-109 Publishing Date: 13.10.2015 Revision No: 0 Rev. Date:

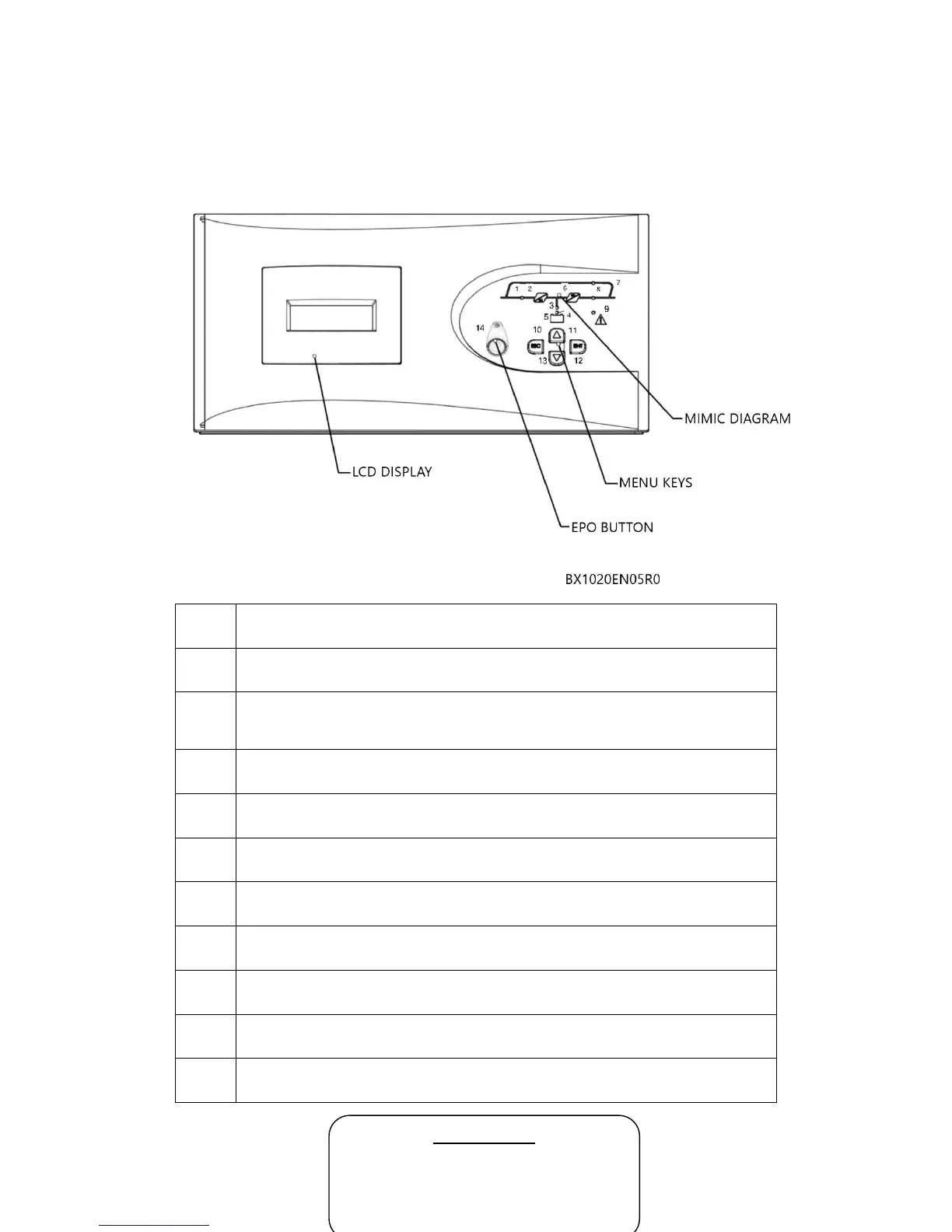

2.4 User Panel
User panel consists of mimic diagram, LCD screen, EPO button and menu keys. The UPS can be
controlled via this panel.
1
Rectifier indicator LED
It constantly illuminates when rectifier works.
2
AC/DC module (Rectifier)
3
Battery discharge indicator LED
It illuminates in battery mode and flashes when UPS is started up through
batteries.
4
Battery charge indicator LED
It illuminates while the batteries are charged.
5
Battery module
6
DC/AC module (Inverter)
7
Bypass static switch indicator LED
It illuminates while the loads are fed through bypass line.
8
Inverter static switch indicator LED
It illuminates when the load is fed by the inverter.
9
Alarm/Warning indicator LED
10-13
Menu keys
14
EPO Button
MAIN SCREEN
Manufacturer –Device Name
Battery Charge Status as Percentage
Load Status as Percentage
Period of Working from Battery
