BOXER SERIES10-20 KVA INSTALLATION
AG-SD-109 Publishing Date: 13.10.2015 Revision No: 0 Rev. Date:

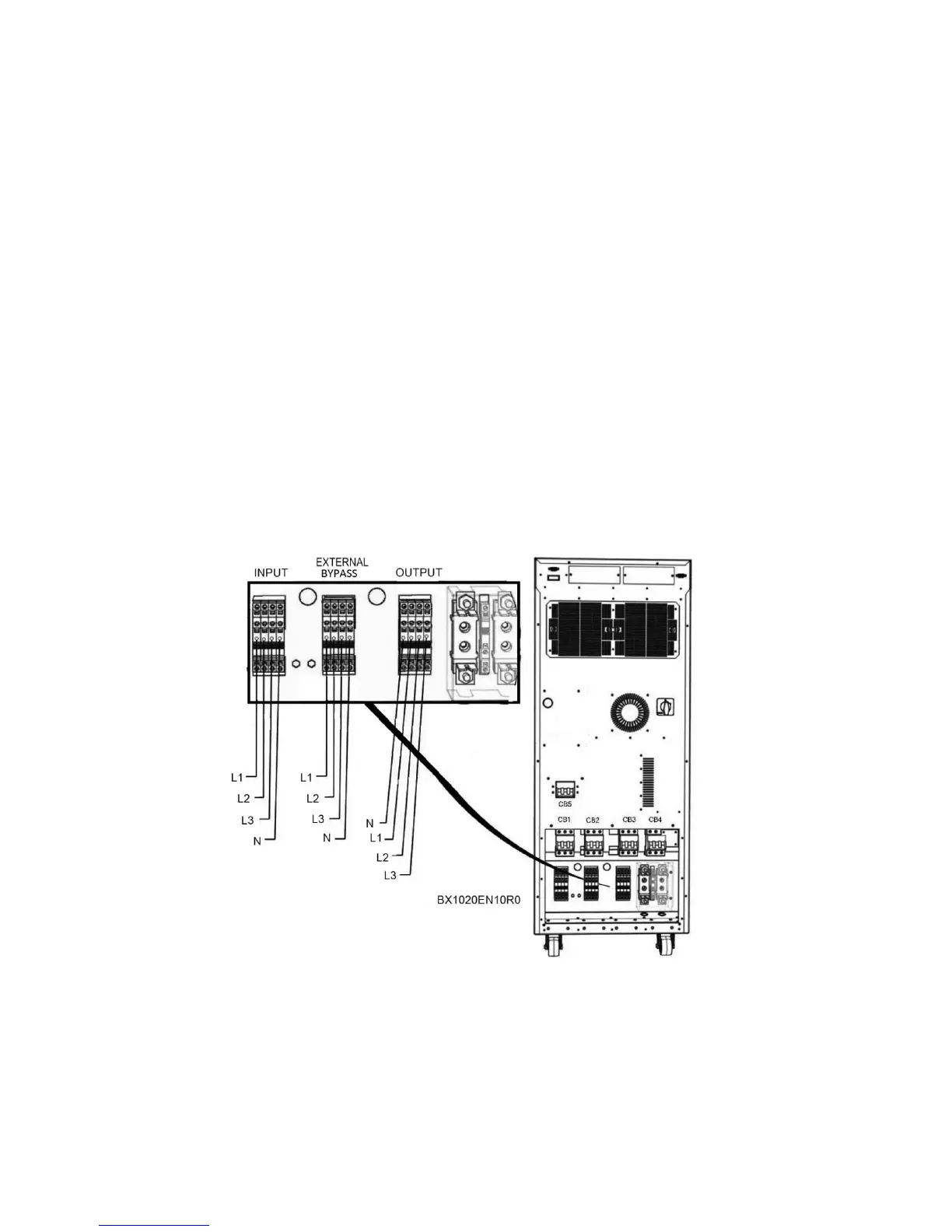

5. Connect the input cables:
R phase to INPUT L1,
S phase to INPUT L2,
T phase to INPUT L3,
N(Neutral) to Input N.
6. Check the phase sequence.
7.Repeat steps 4-5 for output cables.
8. Place the metal cover back and tighten its screws.
Use the cable clips to stabilize the cables when the connections are done.
