Makita DS4012 Technical Information

P 3/ 12
Repair

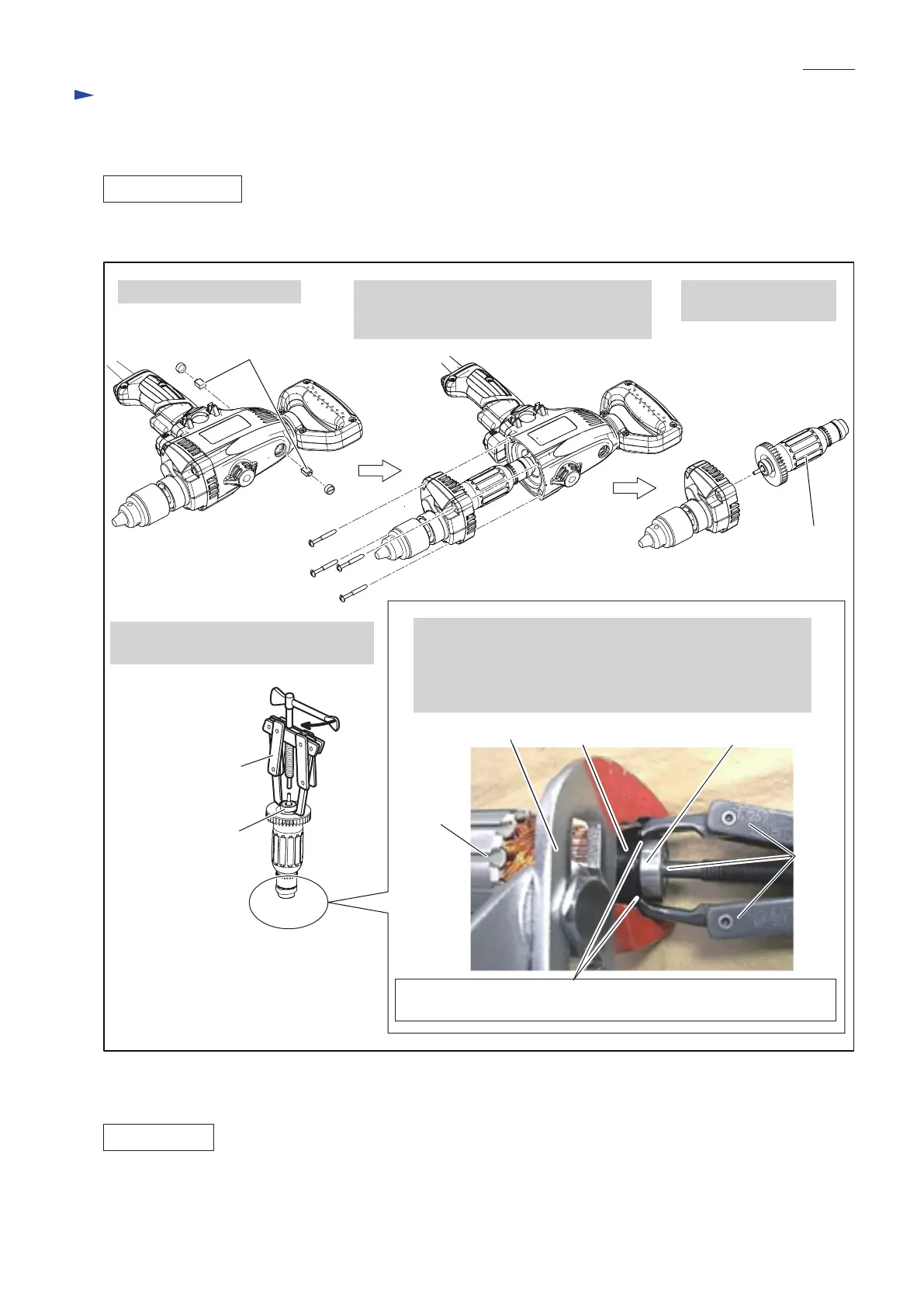

[3] DISASSEMBLY/ASSEMBLY
[3]-1. Armature
Fig. 2
DISASSEMBLING
ASSEMBLING
Water pump pliers
Armature
1R269
Ball bearing 608LLB
1. Remove Carbon brushes.
Disassemble Armature as drawn in Fig. 2.
2. Remove four 5x40 Tapping screws, and then
separate Gear housing from Motor housing.
Armature is removed with Gear housing.
3. Pull out Armature
from Gear housing.
1R269
Assemble Armature by reversing the disassembly procedure. Refer to Fig. 2.
Insulation washer
Ball bearing
608LLB
4. Remove Ball bearing 608LLB on
the drive end of Armature with 1R269.
5. Gap between the other Ball bearing 608LLB and Insulation
washer is very tight.
So, while gripping the hooks of 1R269 with a water pump
pliers, remove Ball bearing 608LLB from the commutator
end of Armature as drawn below.
Carbon brush
Armature
Insert the hooks of 1R269 into the gap between Ball bearing 608LLB
and Insulation washer, and hold the hooks with a water pump pliers.

Makita DS4012 Specifications

General

Drilling	Yes
Screwdriving	-
Idle speed (max)	600 RPM
Idle speed (min)	0 RPM
Chuck capacity (max)	- mm
Drilling diameter in wood (max)	36 mm
Drilling diameter in steel (max)	13 mm
Amperage	8.5 A
Power source	AC

Weight and Dimensions

Depth	340 mm
Width	83 mm
Height	390 mm
Weight	2800 g
