Makita DS4012 Technical Information

P 11/ 12

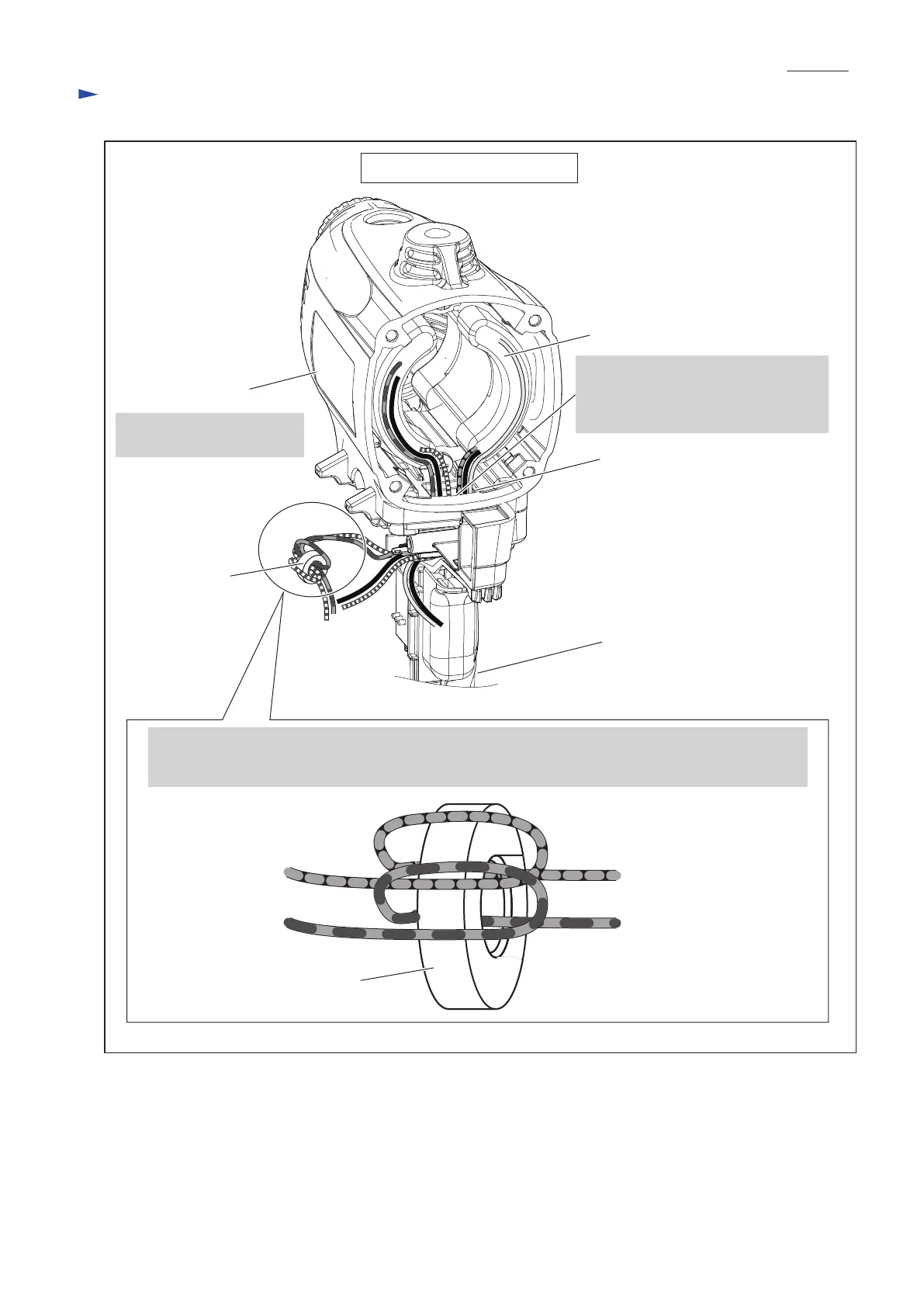

Wiring diagram
Wiring of Field lead wires
When Line filter is used, pass Field lead wires (orange, purple) through the hole and wind them around
as shown below. Then, connect Lead wire (orange) to Terminal No.3 of Switch, and Lead wire (purple)
to Terminal No. 4 of Switch. (See Fig. D-1 of page 10.)
Line filter
to terminal No. 4
to terminal No. 3
Motor housing
Pass Field lead wires through this hole
to Handle section.
Note: Be careful not to scratch or
damage them by the edges.
Line filter
Field
Hole
Handle section
Field lead wires must be
tight in Motor housing.
Fig. D-2

Makita DS4012 Specifications

General

Drilling	Yes
Screwdriving	-
Idle speed (max)	600 RPM
Idle speed (min)	0 RPM
Chuck capacity (max)	- mm
Drilling diameter in wood (max)	36 mm
Drilling diameter in steel (max)	13 mm
Amperage	8.5 A
Power source	AC

Weight and Dimensions

Depth	340 mm
Width	83 mm
Height	390 mm
Weight	2800 g
