Makita LS1018L Technical Information

P 8/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Starter (cont.)

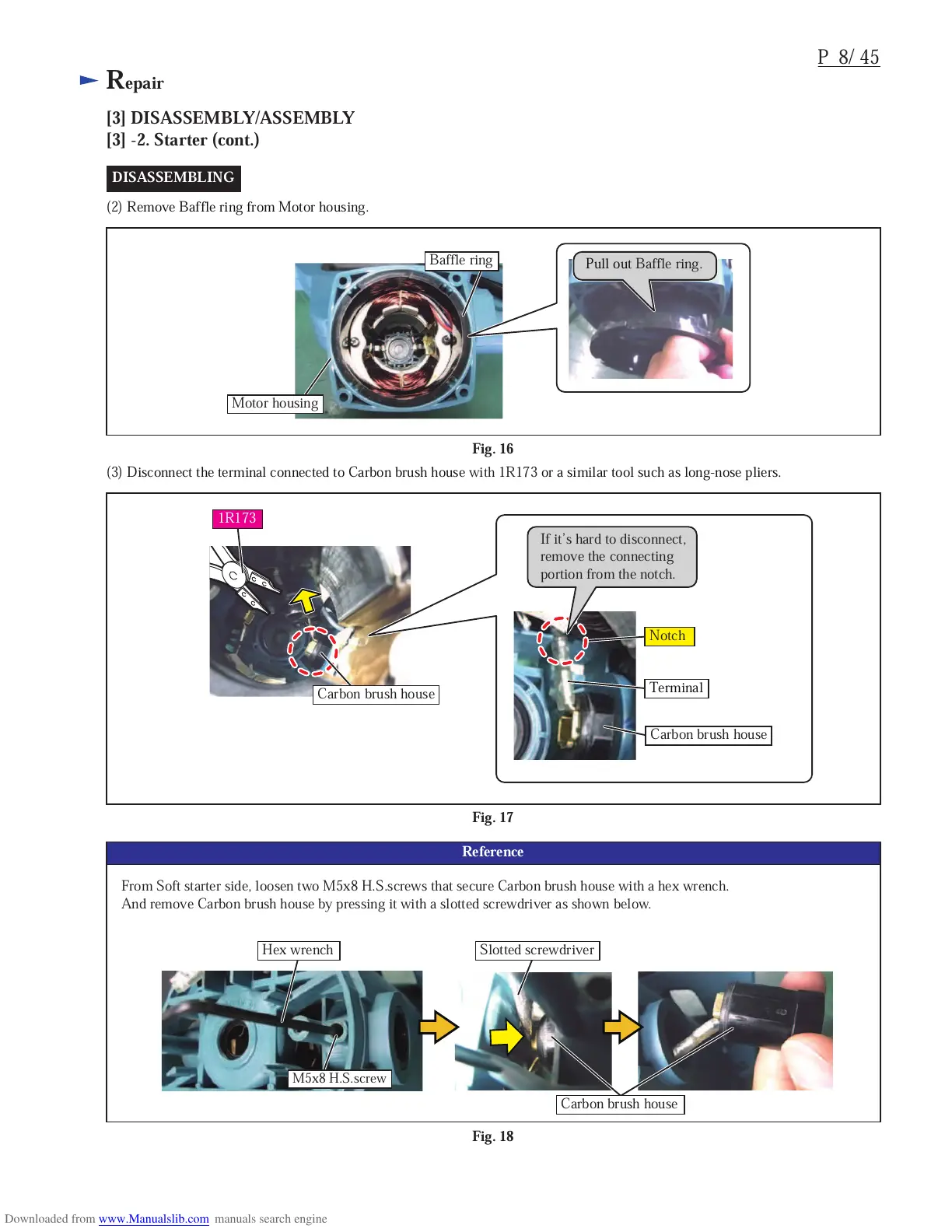

Fig. 16
DISASSEMBLING
(2) Remove Baffle ring from Motor housing.
Fig. 17
Fig. 18
(3) Disconnect the terminal connected to Carbon brush house with 1R173 or a similar tool such as long-nose pliers.
From Soft starter side, loosen two M5x8 H.S.screws that secure Carbon brush house with a hex wrench.
And remove Carbon brush house by pressing it with a slotted screwdriver as shown below.
Terminal
Carbon brush house
Carbon brush house
Baffle ring
1R173
Pull out Baffle ring.
Motor housing
Notch
Reference
Carbon brush house
Slotted screwdriver
M5x8 H.S.screw
Hex wrench
If it’s hard to disconnect,
remove the connecting
portion from the notch.

Makita LS1018L Specifications

General

Input power	1430 W
Power source	AC
Blade bore	30 mm
Blade diameter	260 mm
Dust bag included	JM23100501
Saw blade included	Yes
Idle speed (max)	4300 RPM

Weight and Dimensions

Depth	536 mm
Width	825 mm
Height	633 mm
Weight	19800 g
