Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Starter (cont.)

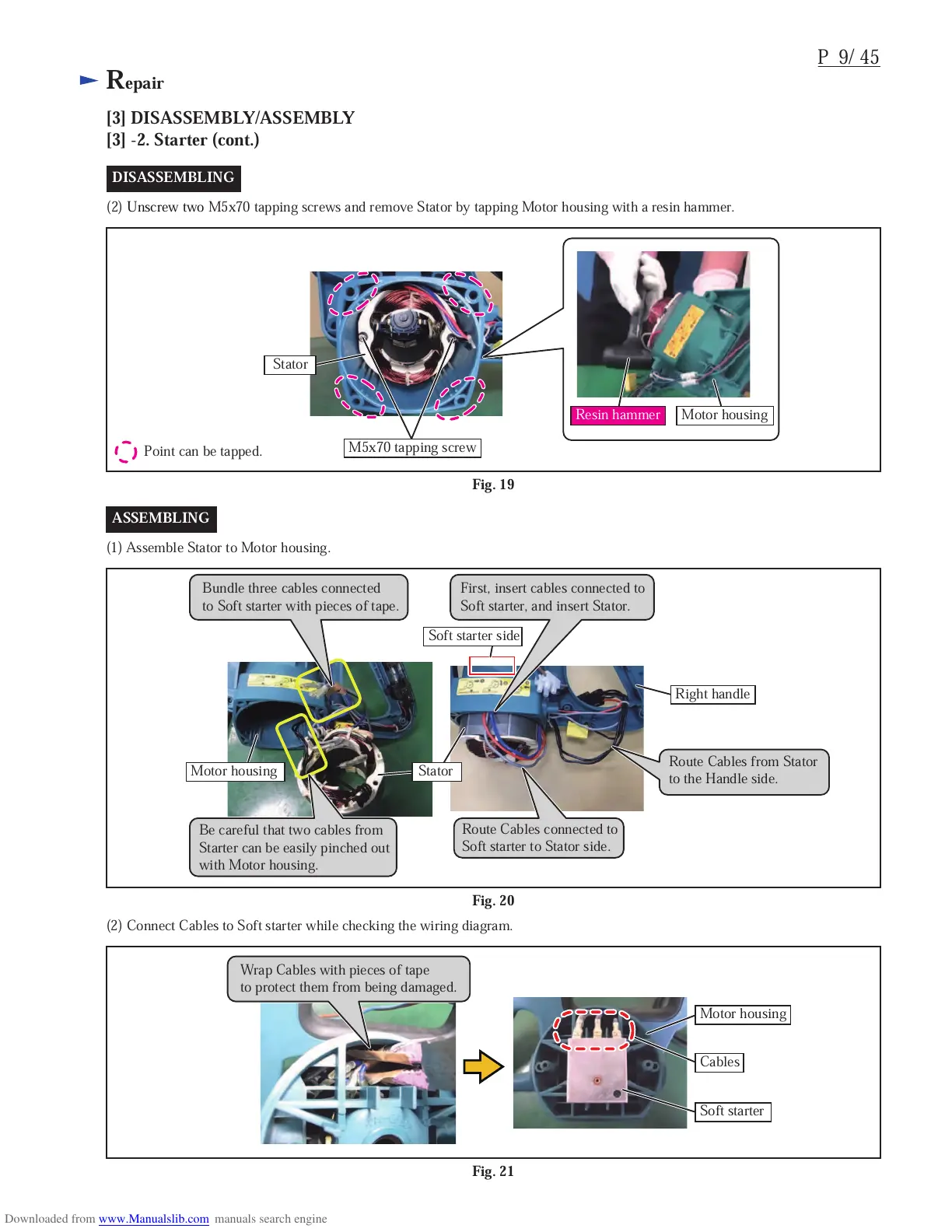

Fig. 19
DISASSEMBLING
(2) Unscrew two M5x70 tapping screws and remove Stator by tapping Motor housing with a resin hammer.
Fig. 20
(1) Assemble Stator to Motor housing.
Fig. 21
(2) Connect Cables to Soft starter while checking the wiring diagram.
M5x70 tapping screw
Point can be tapped.
Stator
Bundle three cables connected
to Soft starter with pieces of tape.
Wrap Cables with pieces of tape
to protect them from being damaged.
First, insert cables connected to
Soft starter, and insert Stator.
Be careful that two cables from
Starter can be easily pinched out
with Motor housing.
Route Cables from Stator
to the Handle side.
Motor housing Stator
Right handle
Soft starter side
Motor housing
Soft starter
Route Cables connected to
Soft starter to Stator side.
ASSEMBLING
Resin hammer
Motor housing
Cables
