Makita LS1018L Technical Information

P 10/ 45
Repair

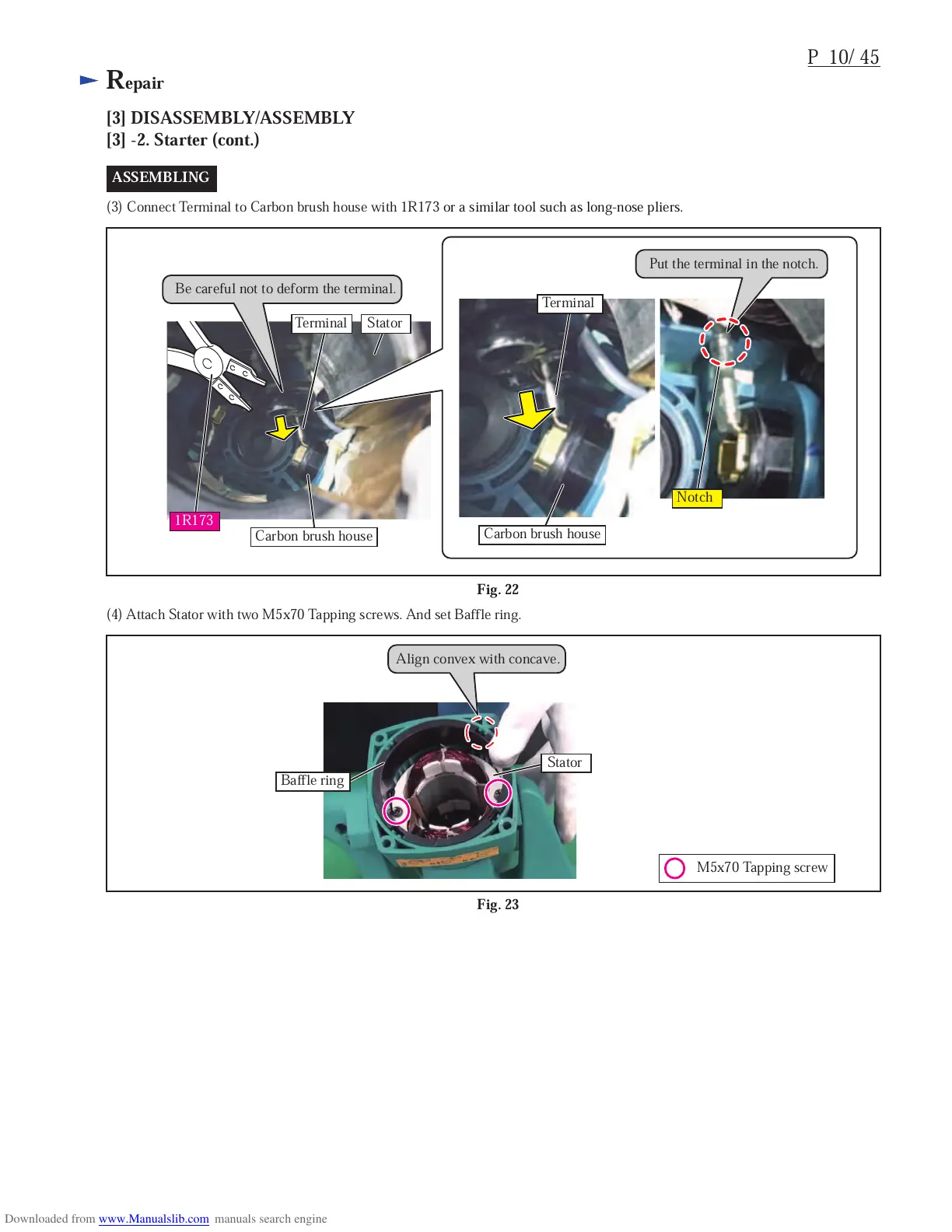

[3] DISASSEMBLY/ASSEMBLY
[3] -2. Starter (cont.)
Fig. 22
(3) Connect Terminal to Carbon brush house with 1R173 or a similar tool such as long-nose pliers.
Fig. 23
(4) Attach Stator with two M5x70 Tapping screws. And set Baffle ring.
StatorTerminal
Be careful not to deform the terminal.
Align convex with concave.
ASSEMBLING
Carbon brush house
Carbon brush house
Stator
Baffle ring
Terminal
Put the terminal in the notch.
M5x70 Tapping screw
1R173
Notch

Makita LS1018L Specifications

General

Input power	1430 W
Power source	AC
Blade bore	30 mm
Blade diameter	260 mm
Dust bag included	JM23100501
Saw blade included	Yes
Idle speed (max)	4300 RPM

Weight and Dimensions

Depth	536 mm
Width	825 mm
Height	633 mm
Weight	19800 g
