Lower the handle fully and lock it in the lowered position

by pushing in the stopper pin. Square the side of the

blade with the face of the guide fence using a triangular

rule, try-square, etc. Then securely tighten the hex bolts

on the guide fence in the order from the right side.

Make sure that the pointer points to 0° on the miter

scale. If the pointer does not point to 0°, loosen the

screw which secures the pointer and adjust the pointer

so that it will point to 0°.

2. Bevel angle

(1) 0° bevel angle

Push the carriage toward the guide fence and

tighten the knob to secure the carriage. Lower the

handle fully and lock it in the lowered position by

pushing in the stopper pin. Loosen the lever at the

rear of the tool. Make sure that the arm is locked.

Turn the hex bolt on the left side of the arm two or

three revolutions counterclockwise. Turn the hex

bolt on the right side of the arm two or three revolu-

tions counterclockwise to tilt the blade to the left.

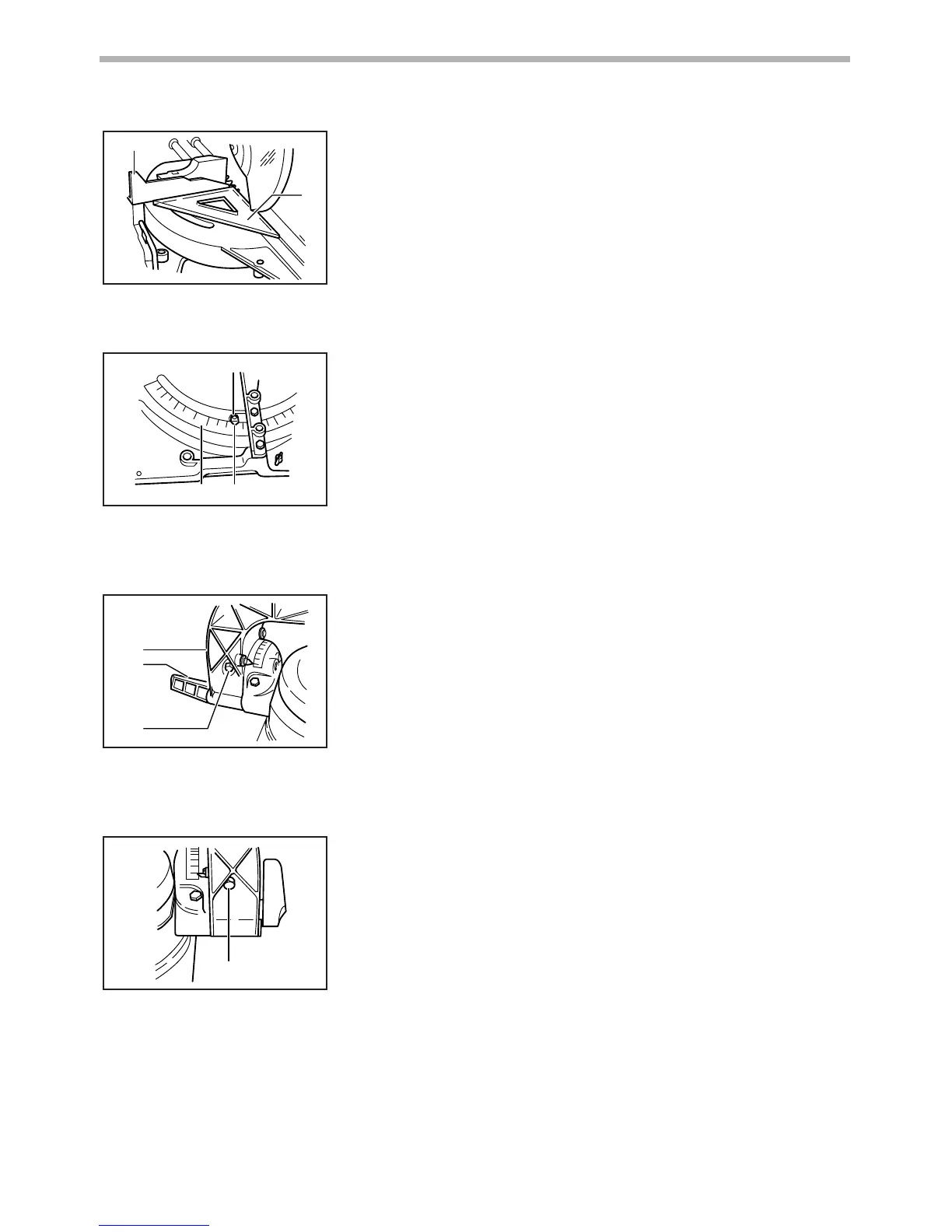

1. Guide fence

2. Triangular rule

001567

1. Screw

2. Miter scale

3. Pointer

001568

1. Arm

2. Lever

3. Hex bolt

001569

1. Hex bolt

001570
