Laser circuit

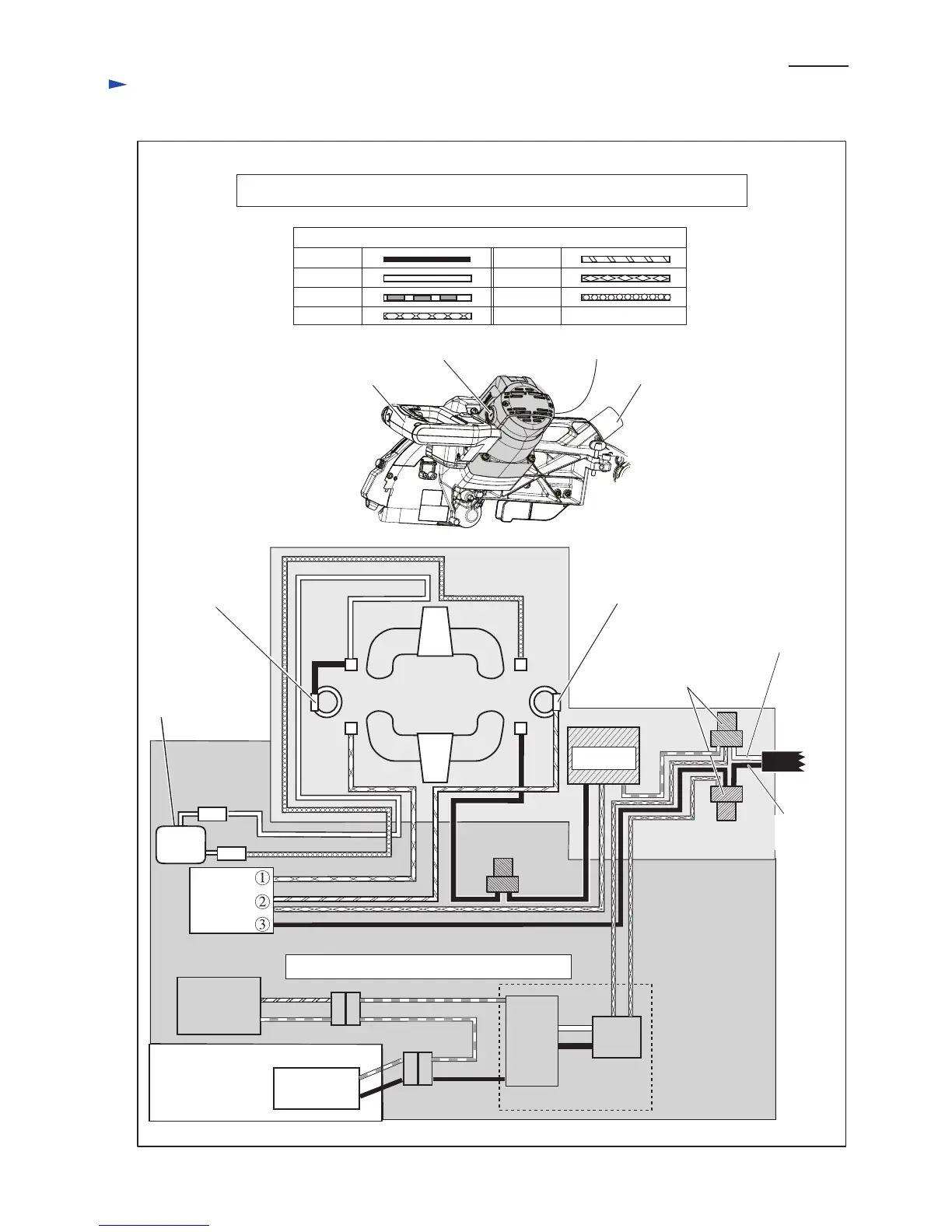

Circuit diagram
Field
(viewed from
Armature gear side)
Circuit
plate
Trans-
former
Laser switch
unit
Power supply circuit
Laser section exclusively for LS1216L
Motor housing
Blade case
Handle cover
and
Handle section
COM
NC
Main
switch
Color index of lead wires' sheath
Black
White
Red
Orange
Blue
Yellow
Blue is used for some
countries.
Brown is used for
some countries.
Insulated
terminal
Insulated
terminal
Purple
220- 240V area where Radio Interference Suppression is not required
Controller
Handle Dust nozzle
Brush holder of
Handle side
Brush holder of
Dust nozzle side
Brush holder Brush holder
Fig. D-4
Switch for protection
of brake coil
P 28/ 35
