P 9/ 35

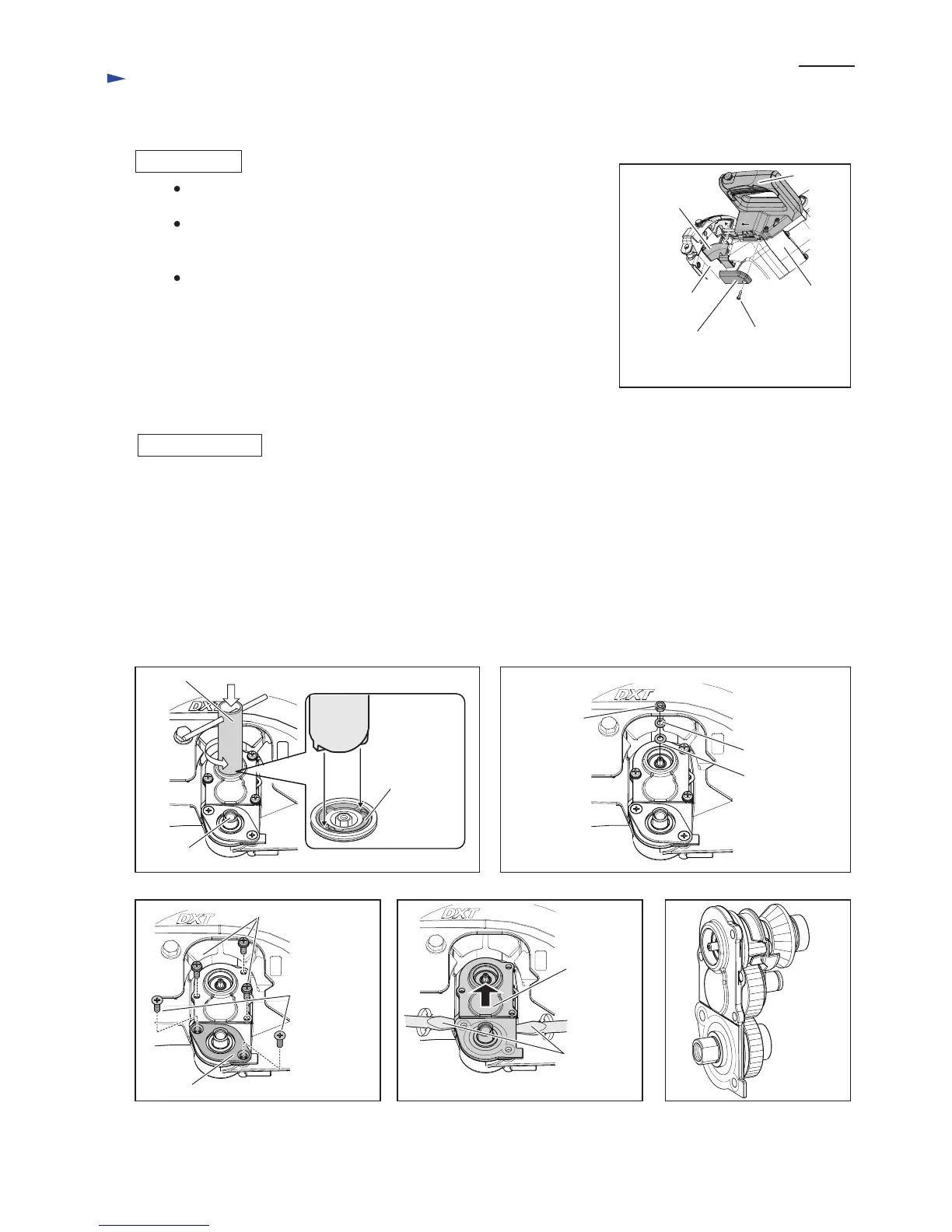

Repair
Note: Tighten M6x20 Hex socket head bolt for pressing the end side of Torsion
spring 40 until the bolt is firmly seated on Blade case complete. (Fig. 8)
While pushing Handle to the ribs of Blade case complete as drawn in
Fig. 19, assemble Motor section to Blade case section with four M6x8
Pan head screws. (Fig. 15)
While pushing Lead cover holder/ Cover holder to Lead cover,
assemble Lead cover holder with 4x18 Tapping screw. (Fig. 14)
Note: Without removing Guard, Link plate and Motor section, disassembling the subject parts is impossible.
Therefore, remove them in accordance with the clause [3]-1.
However, removing Blade case section from Front arm complete is not required.
1) Tilt Blade case section to 45
° right bevel angle to prevent Gear section from dropping off.
Turn Bearing retainer 14-23 counterclockwise using 1R361. (Fig. 20)
2) While pressing Shaft lock, remove M5 Hex nut using socket bit.
Spring washer 5 and Flat washer 5 can be removed together. (Fig. 21)
3) Remove three M5x16 Pan head screws from Bearing box complete.
Remove two M5x16 Countersunk head screws and Bearing retainer 51. (Fig.22)
4) Lever up Bearing box using two slotted screwdrivers. (Fig. 23) Gear section drawn in Fig. 24 can be removed.
ASSEMBLING
DISASSEMBLING
[3] DISASSEMBLY/ASSEMBLY
[3]-1. Blade case section, Motor section (cont.)
[3]-2. Spiral bevel gear 32, Helical gears 14, Helical gears 27, Helical gears 28
Fig. 21Fig. 20
Fig. 22 Fig. 23 Fig. 24
Motor sectionBlade case
section
Lead cover
Handle
Lead holder cover
(LS1216L) / Cover
holder (LS1216)
Fig. 19
4x18
Tapping screw
1R361
M5 Hex nut
Spindle
Bearing retainer 51
Bearing retainer
14-23
Spring washer 5
Flat washer 5
Slotted
screwdriver
(2pcs.)
Bearing
box
complete
M5x16 Pan head screw
(3pcs.)
M5x16
Countersunk
head screw
(2pcs.)
To Next Page
