11 ENGLISH
Using the tilt base protector with the
base

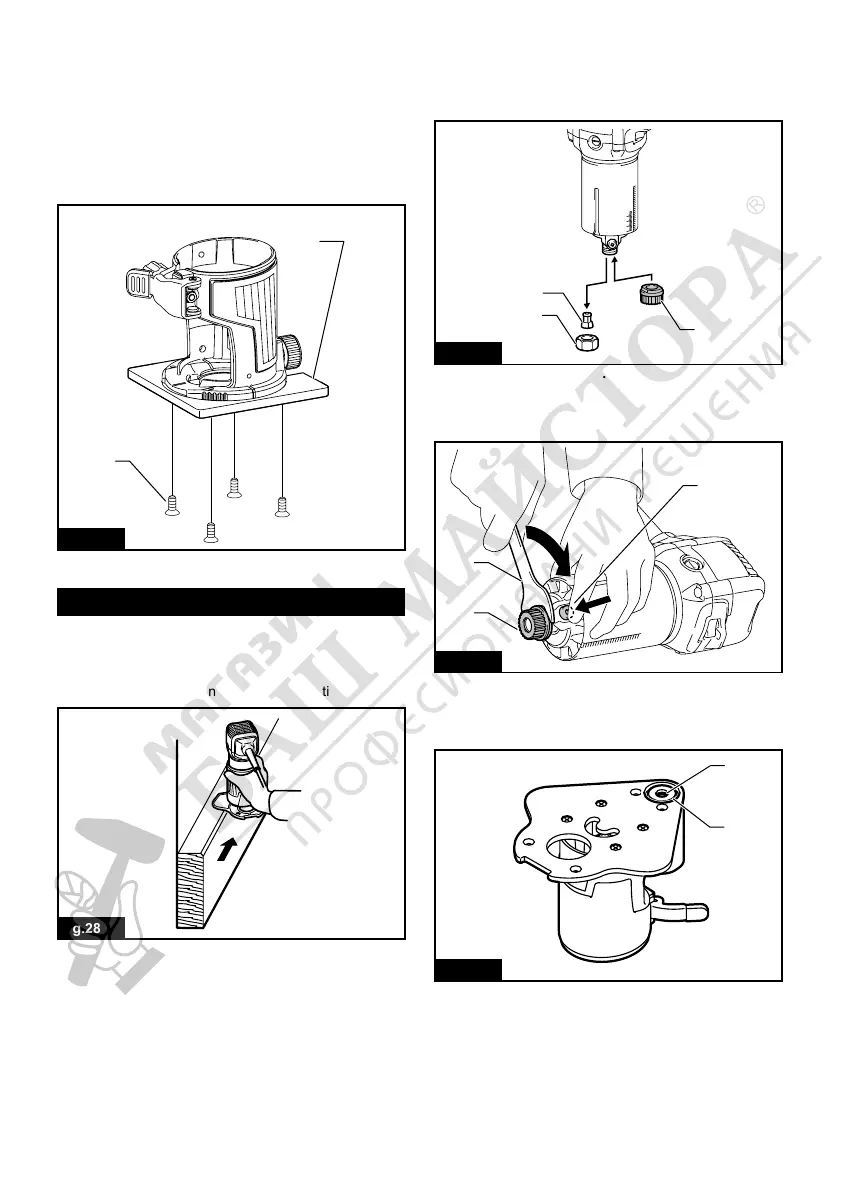

The tilt base protector (square) removed from the tilt
base can be mounted on the base. The shape of the
base protector can be changed from round to square.
1. Remove the tilt base protector from the tilt base by
loosening and removing the four screws.
2. Mount the tilt base protector on the base.
1
2
Fig.27
► 1. Tilt base protector 2. Screw
Oset base
Optional accessory
The oset base is used for trimming the edge of lami-
nate sheet or similar materials.
The oset base is convenient for work in a tight area.
Fig.28
Using the tool with the oset base
1. Before installing the tool on the oset base,
remove the collet nut and collet cone by loosening the
collet nut.
1
2
3
Fig.29
► 1. Pulley 2. Collet nut 3. Collet cone
2. Install the pulley on the tool by pressing the shaft
lock and rmly tightening the pulley with a wrench.
1
2
3
Fig.30
► 1. Wrench 2. Pulley 3. Shaft lock
3. Place the collet cone and screw the collet nut on
the oset base as shown in the gure.
2
1
Fig.31
► 1. Collet nut 2. Collet cone
