Malaguti F10 2008 - Coil H.V.; Resistance of stator pick-up

16
NO
OK
NO
OK
OK
Tester (Ω)
Tester KΩ
Tester Ω


1
Tester (KΩ)
2


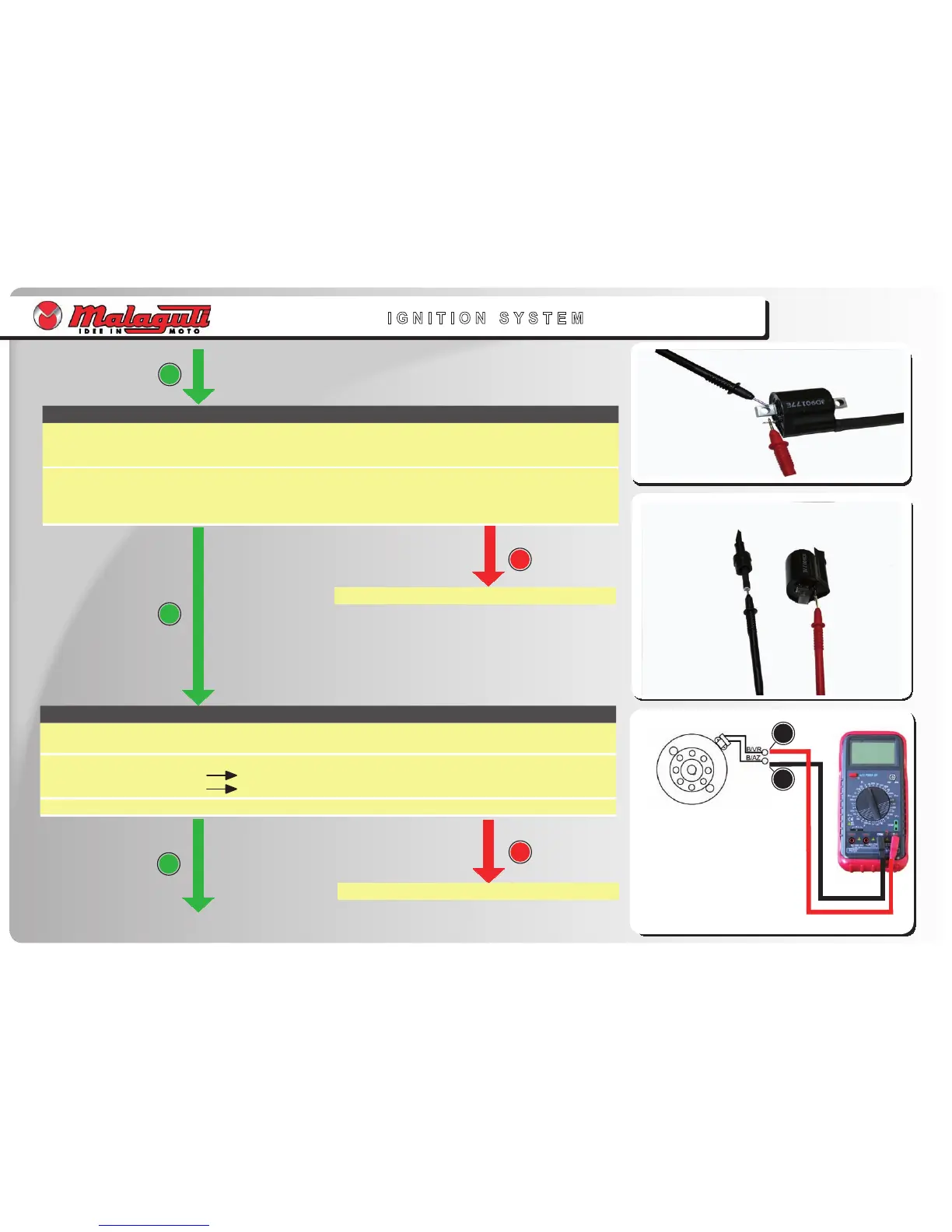

I G N I T I O N S Y S T E M
3. Coil H. V.
A) Primary winding resistance
Connect 
Compliant: 0.6 ÷ 0.9 Ω at 20° C
•
•
B) Secondary winding resistance
Connect
Tester (KΩ)
Compliant: 3.30 ÷ 3.60 KΩ at 20° C
•
•

4. Resistance of stator pick-up•


•
Connect
Tester (KΩ).
Terminal (+) of Tester White/Green 
Terminal (-) of Tester White/Light blue cable (2)
•
•
•
Pick-up resistance:
400 ÷ 460 Ω at 20°C•

