Malaguti F10 2008 - Turn Indicators and Indicator Light Failure

36
NO
OK
Tester (Ω)
1
2

M-N VL VR AR AZ
Tester (Ω)

M-N VL VR AR AZ
1
3
S I G N A L L I N G S Y S T E M

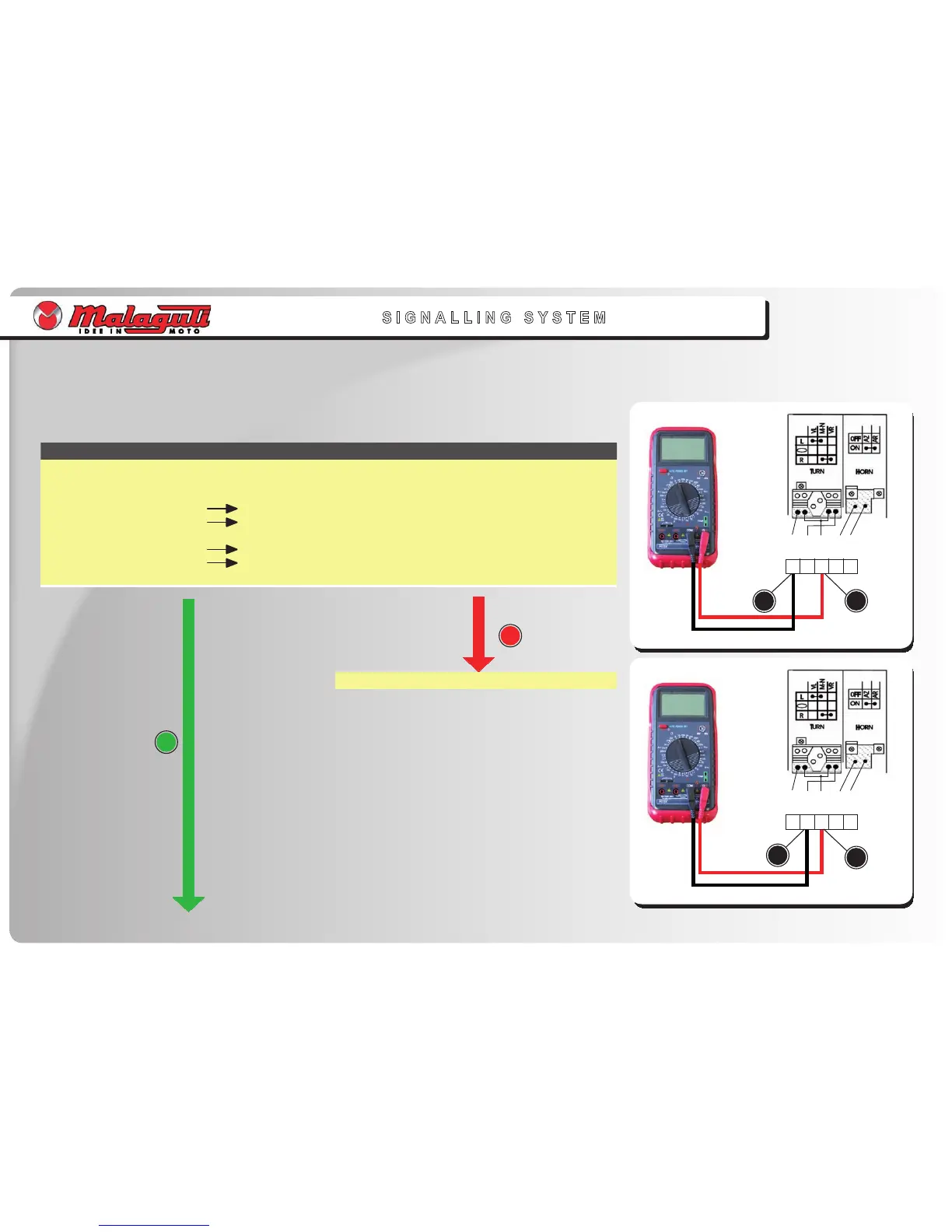

TURN INDICATORS AND RELATIVE INDICATOR LIGHT DO NOT WORK
Check:
 
 
 
1. Turn indicator switch

Connect Tester (Ω) as follows:
Activate right turn indicators:
Terminal (+) of Tester Brown/Black cable (1)
Terminal (-) of Tester Green cable (2)
Activate left turn indicators:
Terminal (+) of Tester Brown/Black cable (1)
Terminal (-) of Tester Purple cable (3)

•
•
•
•
•
•
•
•
•
Replace left hand switch
