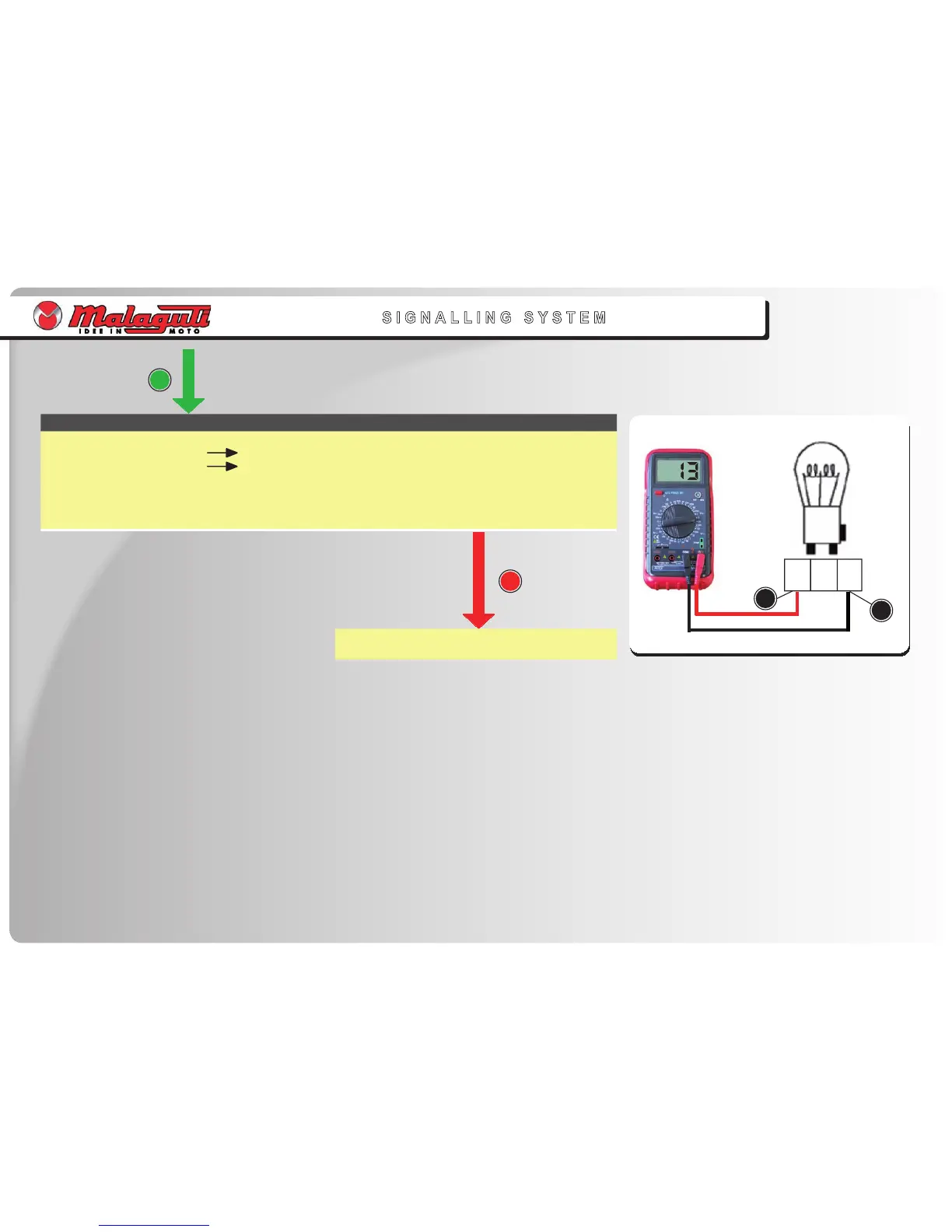

S I G N A L L I N G S Y S T E M
3. Light bulb coupling voltage
Connect Tester (20 V DC) to connector of light bulb coupling, as follows:
Terminal (+) of Tester Red cable (1)
Terminal (-) of Tester Black cable (2)
Turn key “ON
Power measured must be > 12 V
•
•
•
•
•
•
•
Red
To Next Page
