Malaguti F10 2008 - Horn Not Working

32
Tester (Ω)
1
2
Tester (DC 20 V)
1
2
NO
OK
NO
OK


N
AR
+
M-N VL VR AR AZ
S I G N A L L I N G S Y S T E M

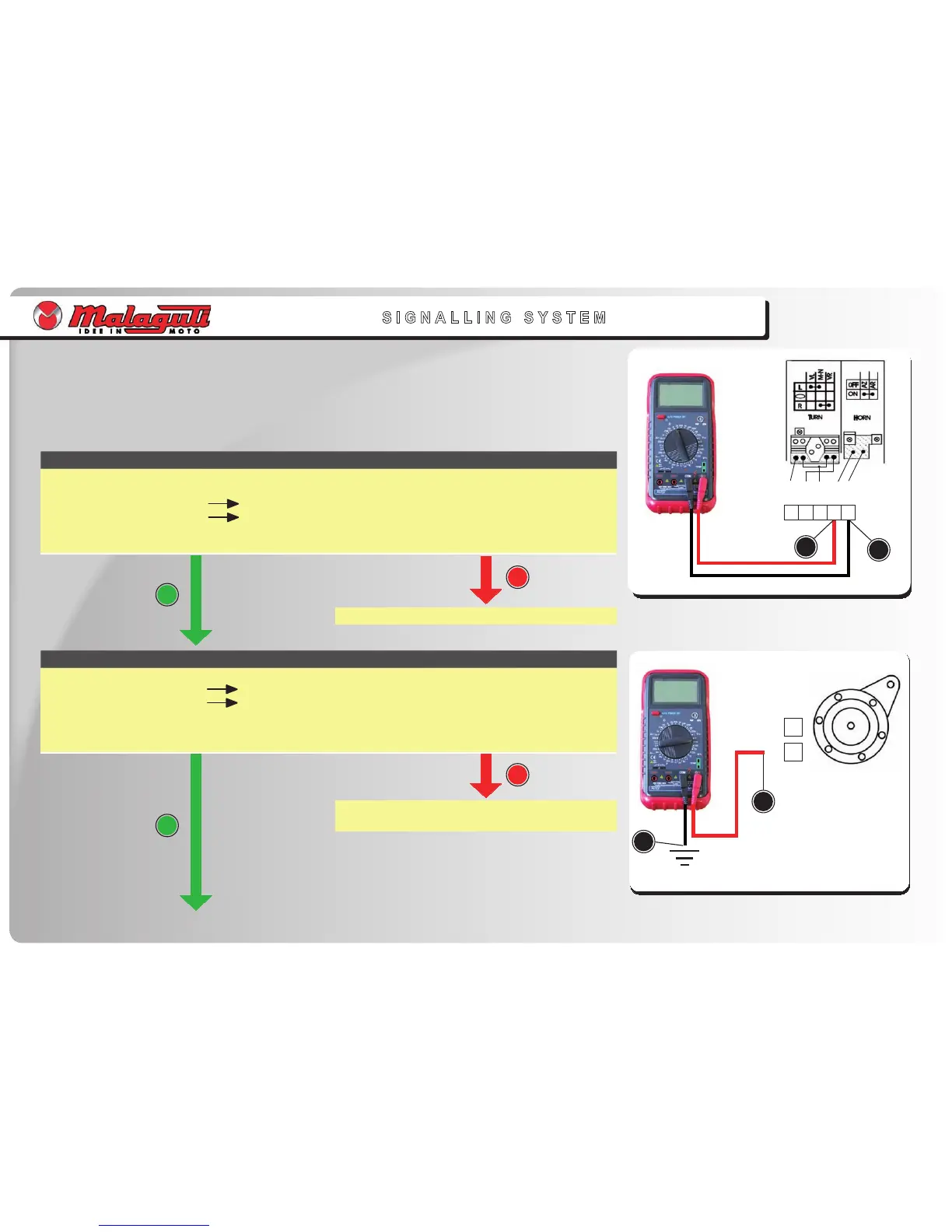

HORN IS NOT WORKING
Check:
 
 
 
1. Horn switch

Connect Tester (Ω) as follows:
Terminal (+) of Tester Orange cable (1)
Terminal (-) of Tester Light blue cable (2).
Press Horn
Check continuity (with button pressed)
•
•
•
•
•
•
Replace left hand switch
2. Voltage delivered to horn
Connect Tester (20 V DC) as follows:
Terminal (+) of Tester Orange cable (1)
Terminal (-) of Tester Chassis grounding (2)
Turn key “ON
Press Horn
Power measured must be > 12 V
•
•
•
•
•
•


