Malaguti F10 2008 - RECHARGING SYSTEM; Battery Charging Failure

22
NO
OK
NO
OK
2
Tester (DC 20 V)
1


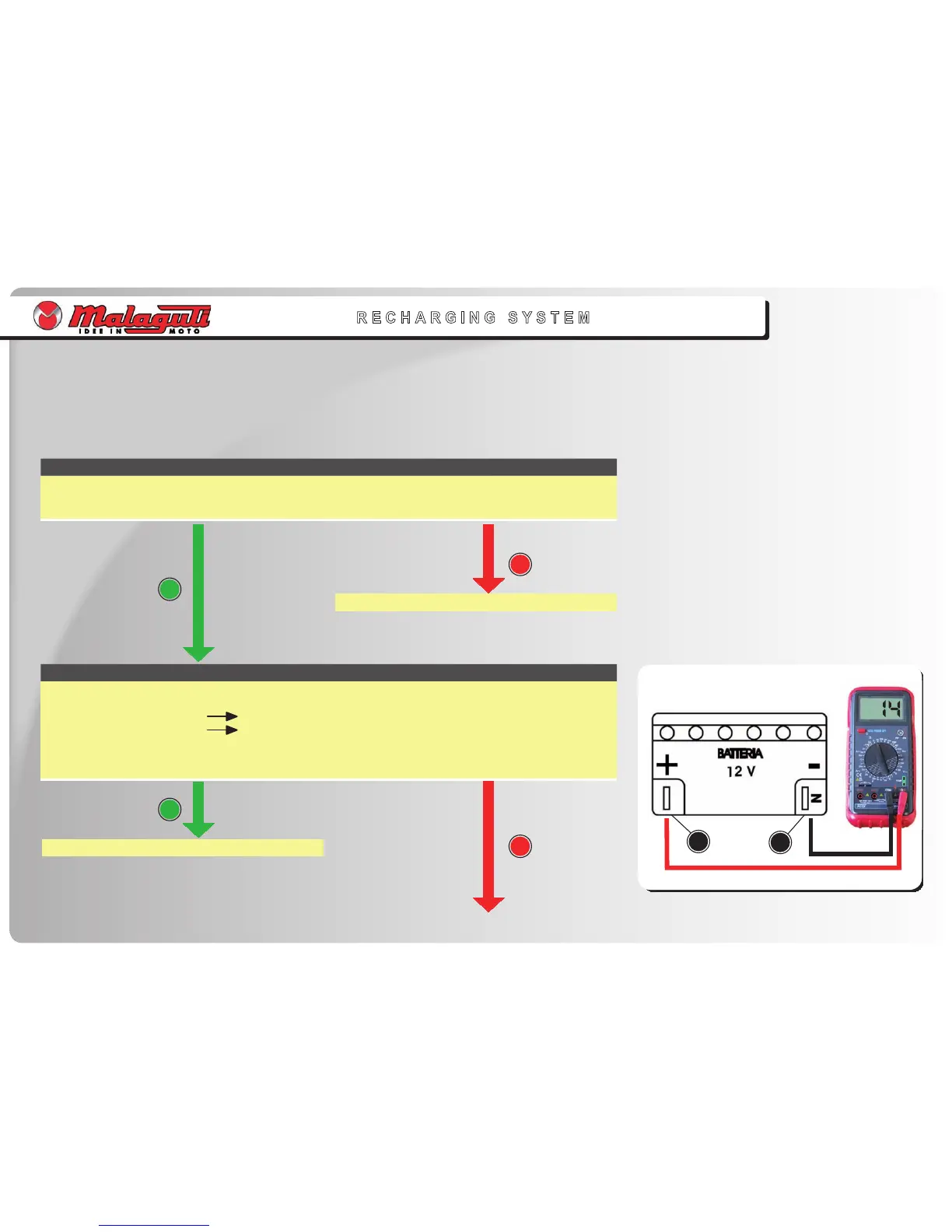

R E C H A R G I N G S Y S T E M
BATTERY CANNOT BE CHARGED
Check:
 
 
 
 
1. Fuse, 10 A

Connect Tester (Ω)

•
•
•
•


2. Battery charging voltage
Connect inductive rev counter to spark plug cable
Connect Tester (20 V DC) as follows:
Terminal (+) of Tester Battery positive (1)
Terminal (-) of Tester Battery negative (2)
Run engine at ~ 

Battery charging voltage: 13.5 ÷ 14.5 V
•
•
•
•
•
•
•
