Malaguti F10 2008 - Charging Coil Resistance; Recharging System Connections

23
NO
OK
Tester (Ω)
2
NO
OK
N
R/VR
B
1

R E C H A R G I N G S Y S T E M

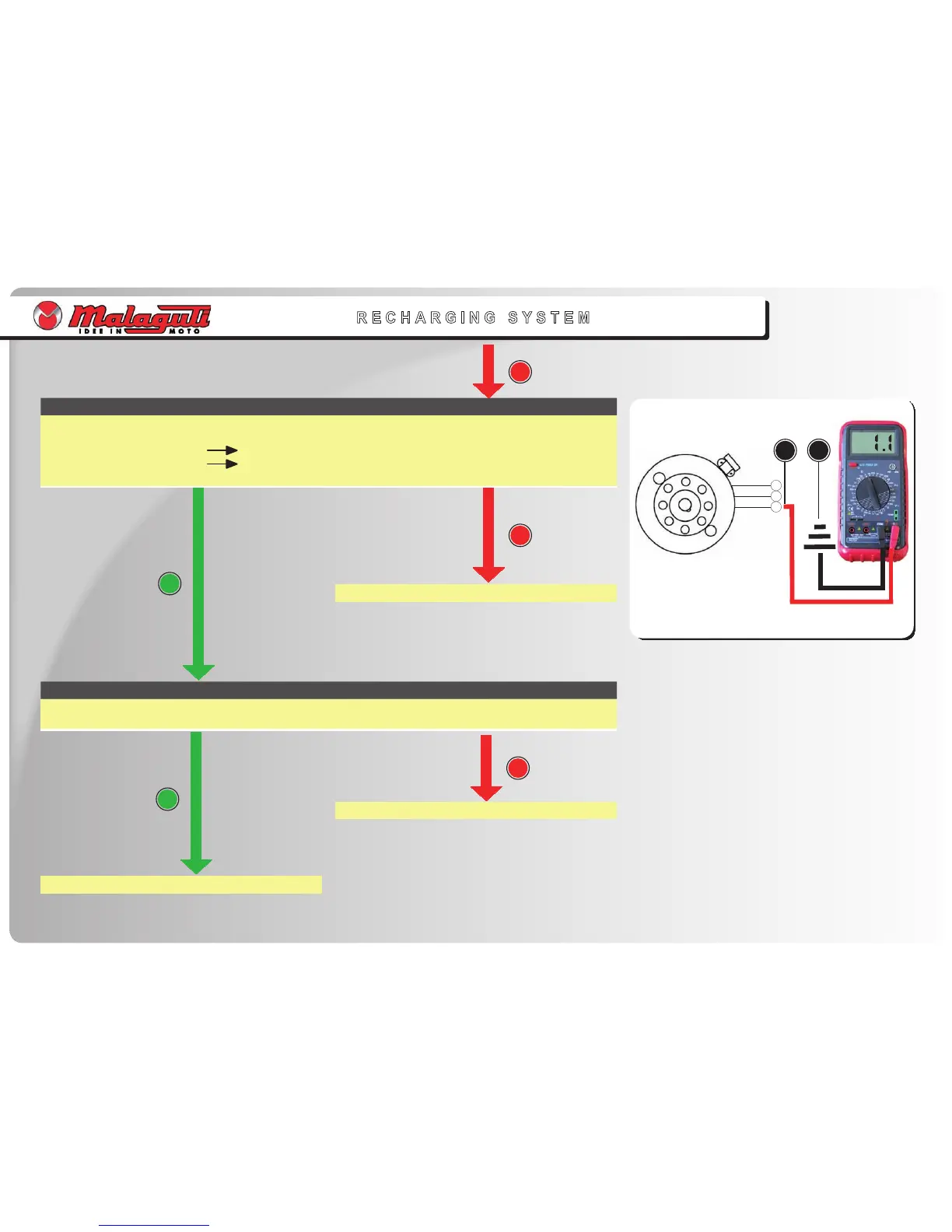

3. Charging coil resistance

Connect Tester (Ω) as follows:
Terminal (+) of Tester White cable (1)
Terminal (-) of Tester Engine grounding (2)
Charging coil resistance: 1 ÷ 1.2 Ω at 20°C
•
•
•
•
•

NO
4. Recharging system connections


•
•

Replace voltage regulator (code n°: 02601100) 
