Malaguti F10 2008 - Flashlight Voltage Level; Brown;Black Cable Continuity

37
Tester (DC 20 V)
2
1
Tester (Ω)
NO
OK
NO
OK
OK

M-N
BL
M-N
BL

M-N
VL
VR
AR
AZ
S I G N A L L I N G S Y S T E M

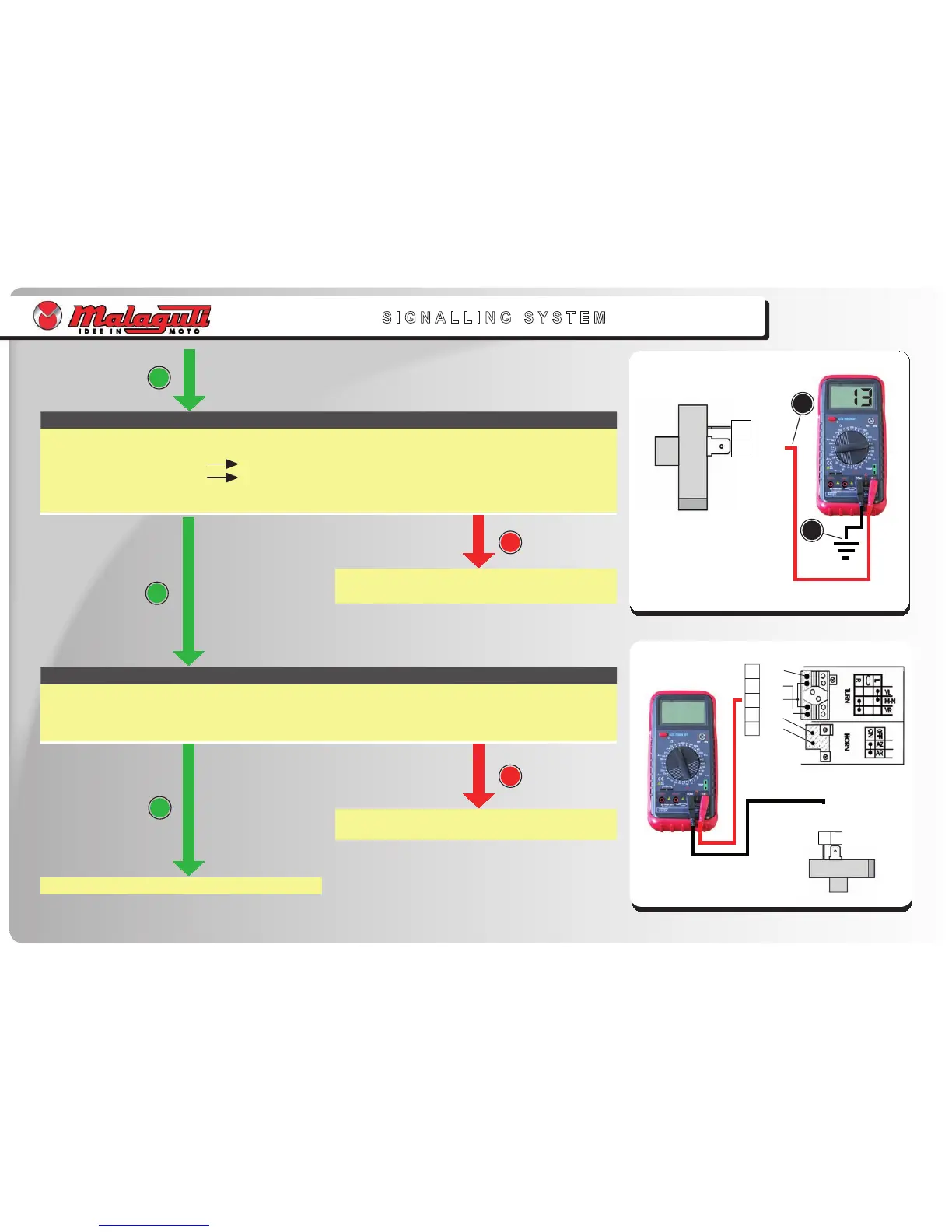

2. Voltage level of ashlight

Connect Tester (20 V DC) as follows:
Terminal (+) of Tester Blue cable (1)
Terminal (-) of Tester Chassis grounding (2).
Turn key “ON
Voltage must be: > 12 V
•
•
•
•
•
•
Blue

3. Continuity of brown/black cable


Connect Tester (Ω) 
Check continuity of Brown/Black
•
•
•
•
Brown/Black


