INSTRUMENT AND CONTROL FUNCTIONING
ENGLISH
1
2
3
4
5

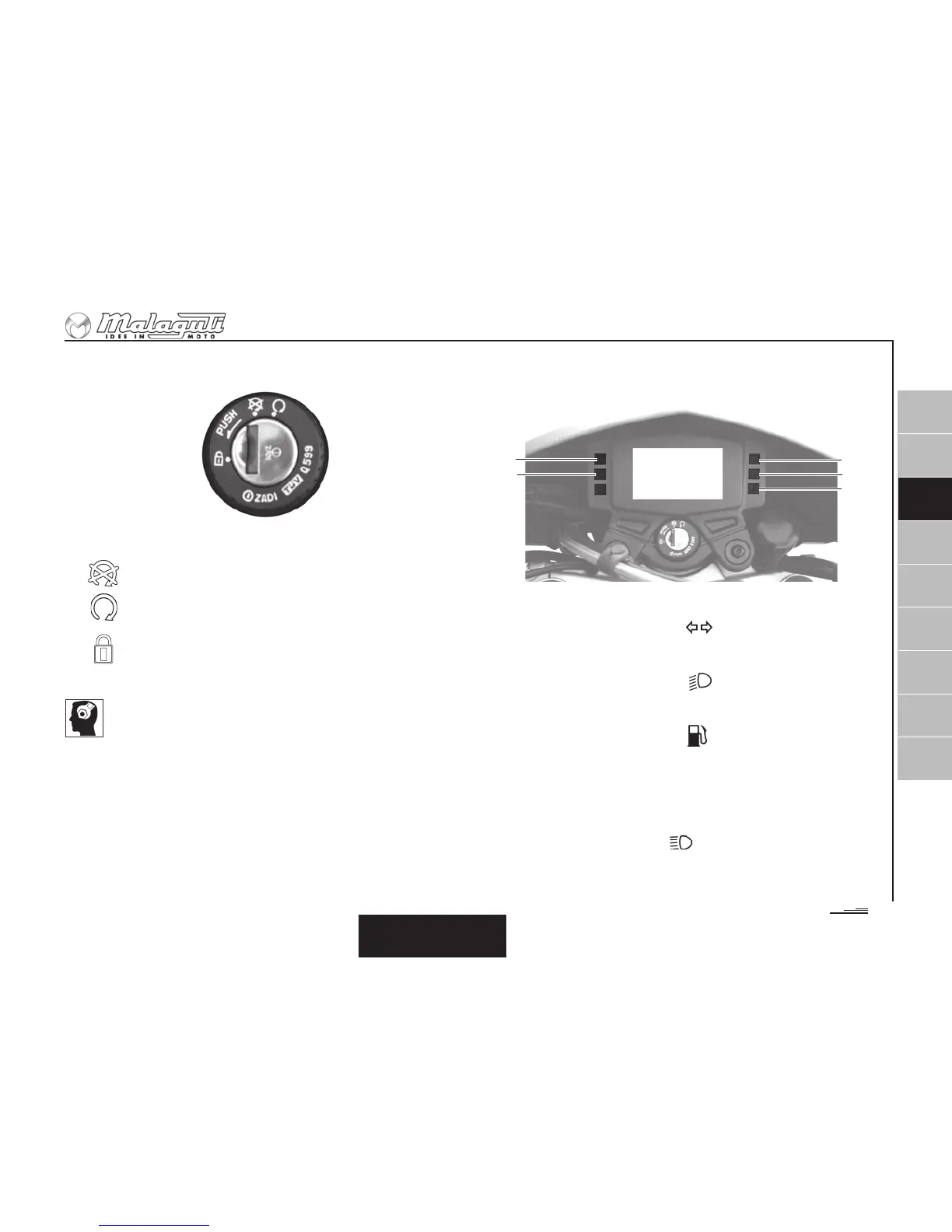

INDICATOR LIGHTS
1- Turn signal indicator light
This indicator flashes when the left/right hand turn indicators are
switched on.
2- Low beam indicator light
This indicator light is always on. It signals that the low beam
headlight is on.
3- Fuel level warning light
This light comes on when the fuel level is low. Fill the fuel tank.
4- Neutral indicator light
“N”
This light comes on when the transmission is in neutral position.
5- High beam indicator light
This indicator comes on when the high beam headlight is
operated.
• The main switch controls the ignition circuit and steering lock.
: all electrical contacts are disconnected.
:
the contacts are activated; the engine can start
and the lights come on.
: the steering lock is on.
KEYS
The vehicle is supplied with two keys featuring a code
number, which have the following functions:
• Providing the ignition contact.
• Turning the lights on.
• Locking the steering system.
STEERING LOCK:
Locking: turn the handlebar all the way to the right or left, push
the key in and turn it counter-clockwise.
Disengaging: turn the key clockwise.
MAIN SWITCH
