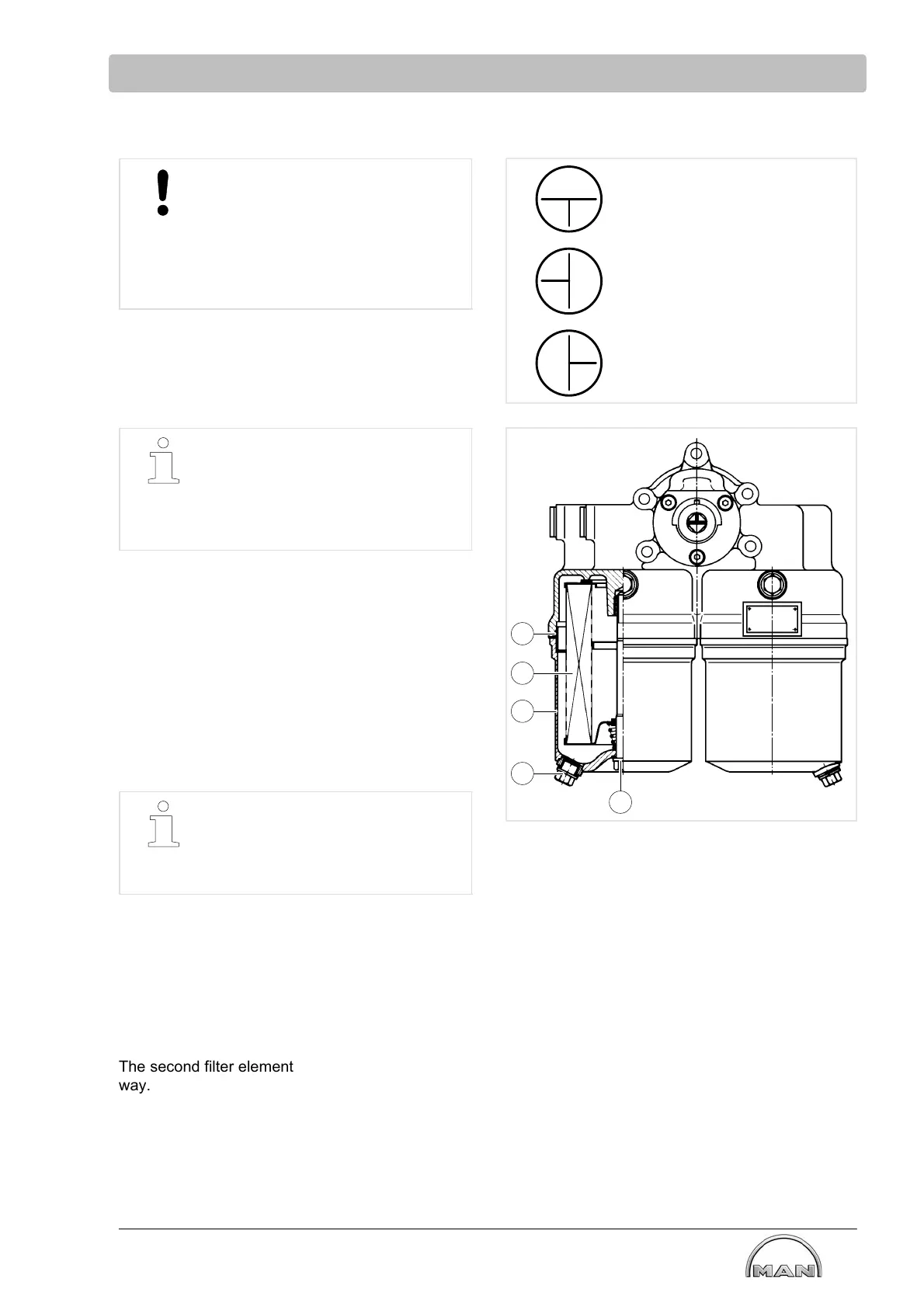

Change oil filter elements - on switchable oil filters
IMPORTANT!
Engine damage!
Danger of blocked oil supply.
For this reason:
S Leave the oil flow lever set to
continuous operation
For continuous operation, set the oil flow lever so
that both halves of the filter are in operation. Ob
serve the position of the oil flow lever!
A continuous operation
(both halves of the filter
switched on)
Right side
shut off
Left side
shut off
NOTE!
Use a container with sufficient ca
pacity to change oil (at least 10
litres). This ensures that oil will not
overflow.
1. Remove oil drain screw (1) from oil filter bowl
(2) and completely drain engine oil.
2. Loosen mounting bolt (3) of filter bowl (2) .
3. Remove filter bowl (2) along with filter element
(4).
4. Remove filter element (4) from filter bowl (2).
5. Clean filter bowl(2).
6. Insert new filter element (4) and install filter
bowl (2) with new seal (5).
NOTE!
To prevent the sealing ring (4) from
turning, hold filter bowl (3) while
tightening the mounting bolt (2).
7. Insert and tighten mounting bolt (3) of filter bowl
(2).
Tightening torque 50 Nm.......................
8. Install oil screw (1) with a new sealing ring and
tighten.
Tightening torque 40 Nm.......................
The second filter element is changed in the same
way.
2
3
1
4
5
