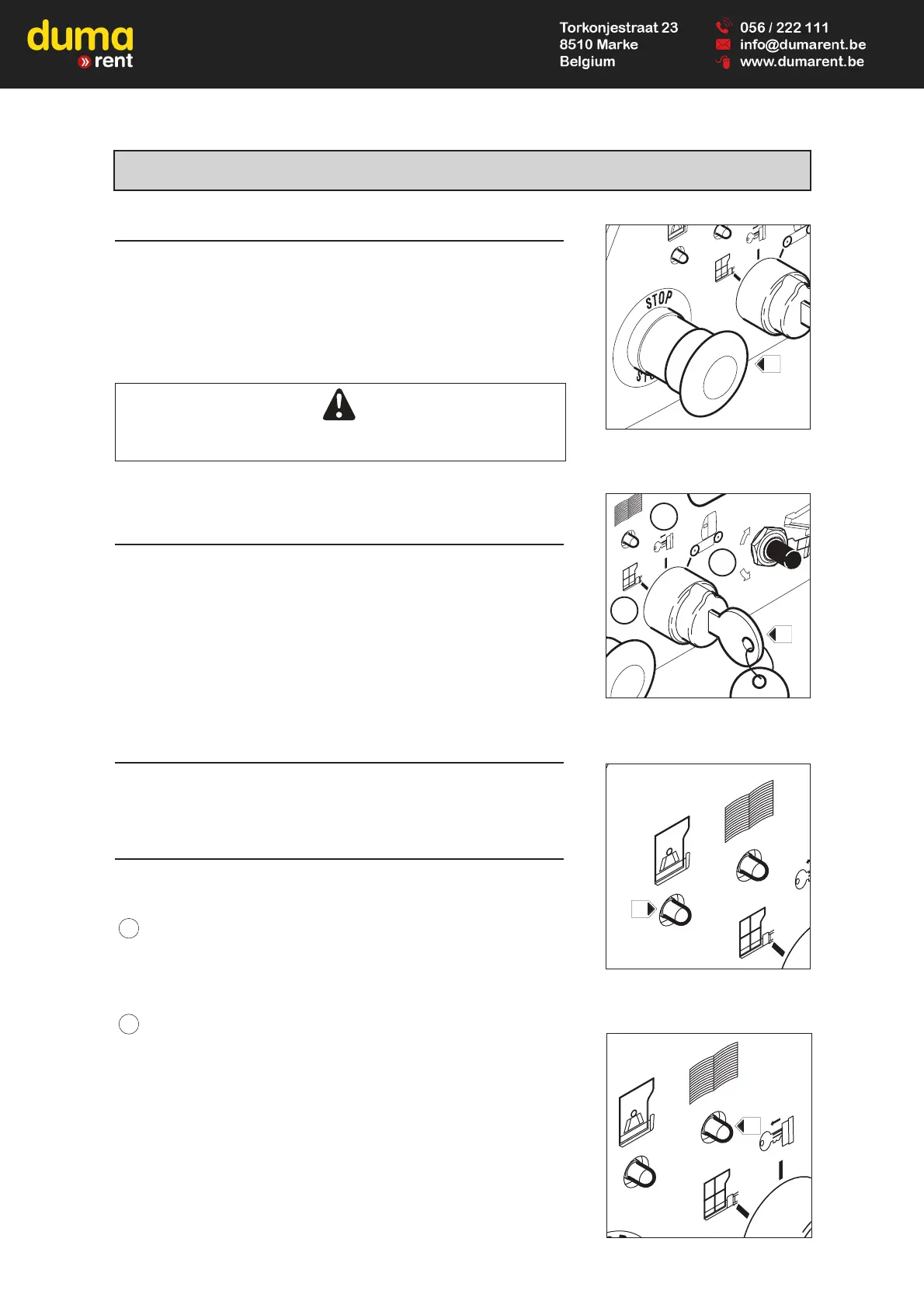

1 - EMERGENY STOP
This switch is used to stop all the movements of the machine, in the event of
a fault or of a danger.
- Press the button to stop all the movements.
- Turn the button a quater turn to the right to de-activate it. (the switch returns
automatically to its original position).
This command takes priority in all circumstances, even when control is swit-
ched to the access platform.
2 - COMMANDS SELECTION KEY ON THE GROUND OR
IN THE ACCESS PLATFORM
This is the control point selector.
A : - The commands is effected from the nacelle platform.
B : - Neutral position : the platform controls are idle (remove the key in
this position)
C : - The commands are effected from the chassis unit.
3 - OVERLOAD LAMP
If the platform is overload (item 30 in the platform), this lamp comes on.
4 - “MAINTENANCE MACHINE” LAMP
- THIS LAMP HAS TWO FUNCTIONS:
1 This lamp is controlled by a timer, which brings it on every 50 hours
worked.
When the lamp is on, this mean that the machine must be serviced (see
chapter "PERIODICITY OF MAINTENANCE").
2 In the event of a fault, the number of flashes indicates the type of fault
detected by the variator:
- 1 flash : Variator parameter defect
- 2 flashes : Command activated before the use
- 3 flashes : Variator in short-circuit
- 4 flashes : Defect contactors of power
- 5 flashes : No-used
- 6 flashes : Accelerator, control switch, potentiometer or wire of speed
sensor
- 7 flashes : Battery discharged
- 8 flashes : Variator temperature over high
- 9 flashes : Bobbin contactor in short-circuit
-12 flashes : Defect bus connection
