2 - 13

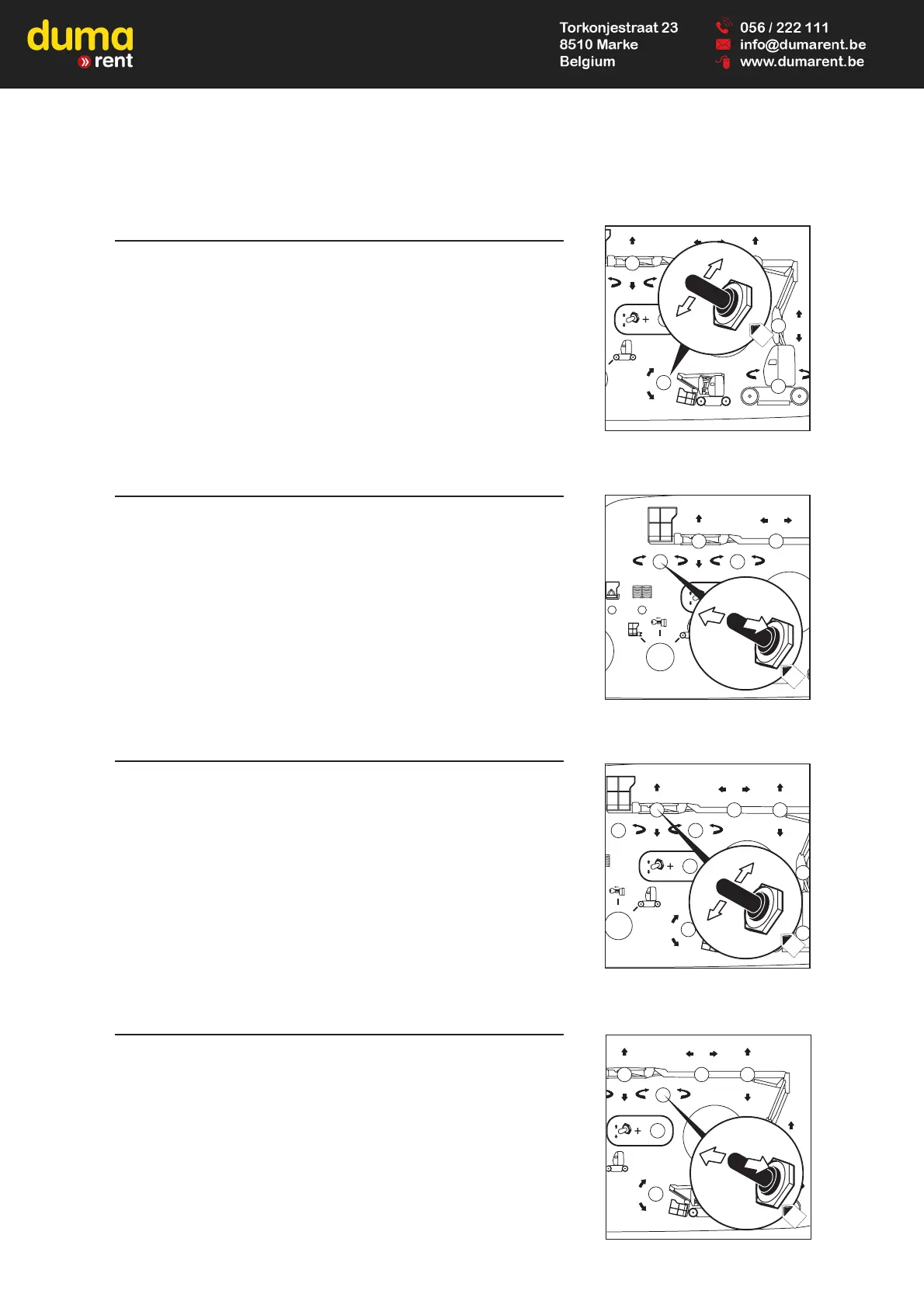

5 - INCLINATION CONTACTOR OF THE PLATFORM
- This contactor is used for the correction of the horizontality of the platform or
the complete re-folding of the platform in the transportation position.
CORRECTION OF THE PLATFORM UPWARD
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 5 upwards.
CORRECTION OF THE PLATFORM DOWNWARD
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 5 downwards.
6 - PLATFORM ROTATION CONTACTOR
- This contactor is used to rotate the platform.
RIGHT ROTATION
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 6 to the right.
LEFT ROTATION
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 6 to the left.
7 - RAISE AND LOWER CONTACTOR OF THE
EXTENSION ARM
- This contactor is used to raise or lower the extension arm.
LIFTING OF THE EXTENSION ARM
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 7 upwards.
LOWERING OF THE EXTENSION ARM
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 7 downwards.
8 - ROTATION CONTACTOR FOR OPTION ROTATED JIB
- This contactor is used to rotate the platform and the extension arm.
RIGHT ROTATION
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 8 to the right.
LEFT ROTATION
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 8 to the left.
5
6
7
8
