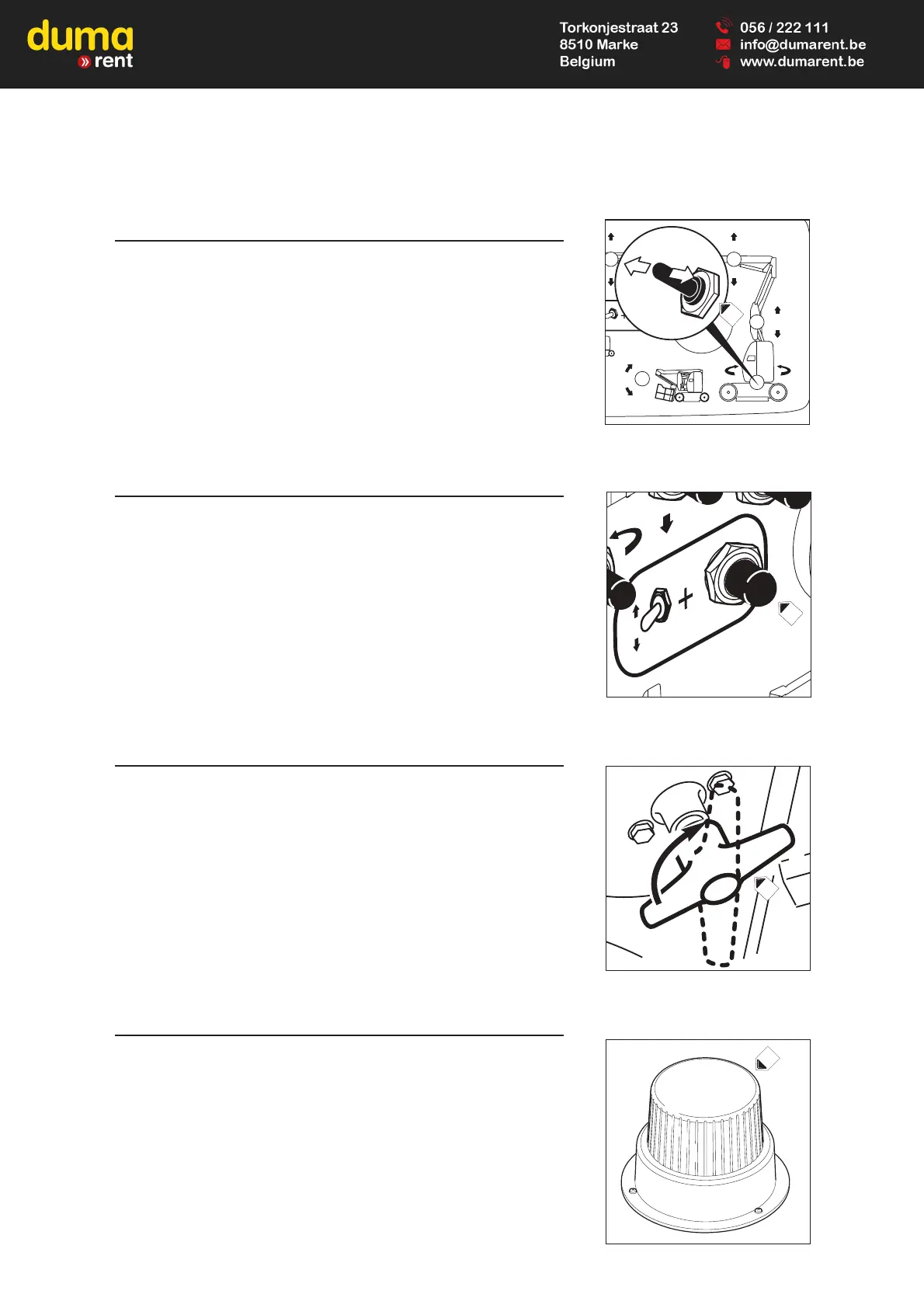

13 - TURRET ROTATION CONTACTOR
- This contactor is used to rotate the turret.
RIGHT ROTATION
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 13 to the right.
LEFT ROTATION
- Place the base/basket switch in the base position, keep the "dead man"
button pushed and push the switch 13 to the left.
14 - "DEAD MAN" BUTTON
- Press this button continuously to activate the lifting and rotation functions.
15 - BATTERY SWITCH
- The battery swith is located below the covering cap of the wheels motors.
IN POSITION I
- The current flows.
IN POSITION O
- The current is cuted off.
16 - FLASHING LIGHT (OPTION)
- The flashing alarm lamp turns on automatically when the platform is
travelling, or if a movement is carried out (Lifting, rotation,...).
