Manitou 120 AETJ L User Manual

2 - 5
ELECTRIC PUMP
- Power supply 48 V
- Power 3,6 KW
- Cubic capacity 4,8 cm3
- Pressure 200 bar
ELECTRICAL WHEELS MOTORS
- Type T 17 - 2 KW
ELECTRICAL CIRCUIT
- Battery 48 V - 300 Ah(150AETJC - 150AETJL -
170AETJL)
48 V - 240 Ah (120AETJL)
- Charger 45 Ah (Mono)
FUSES

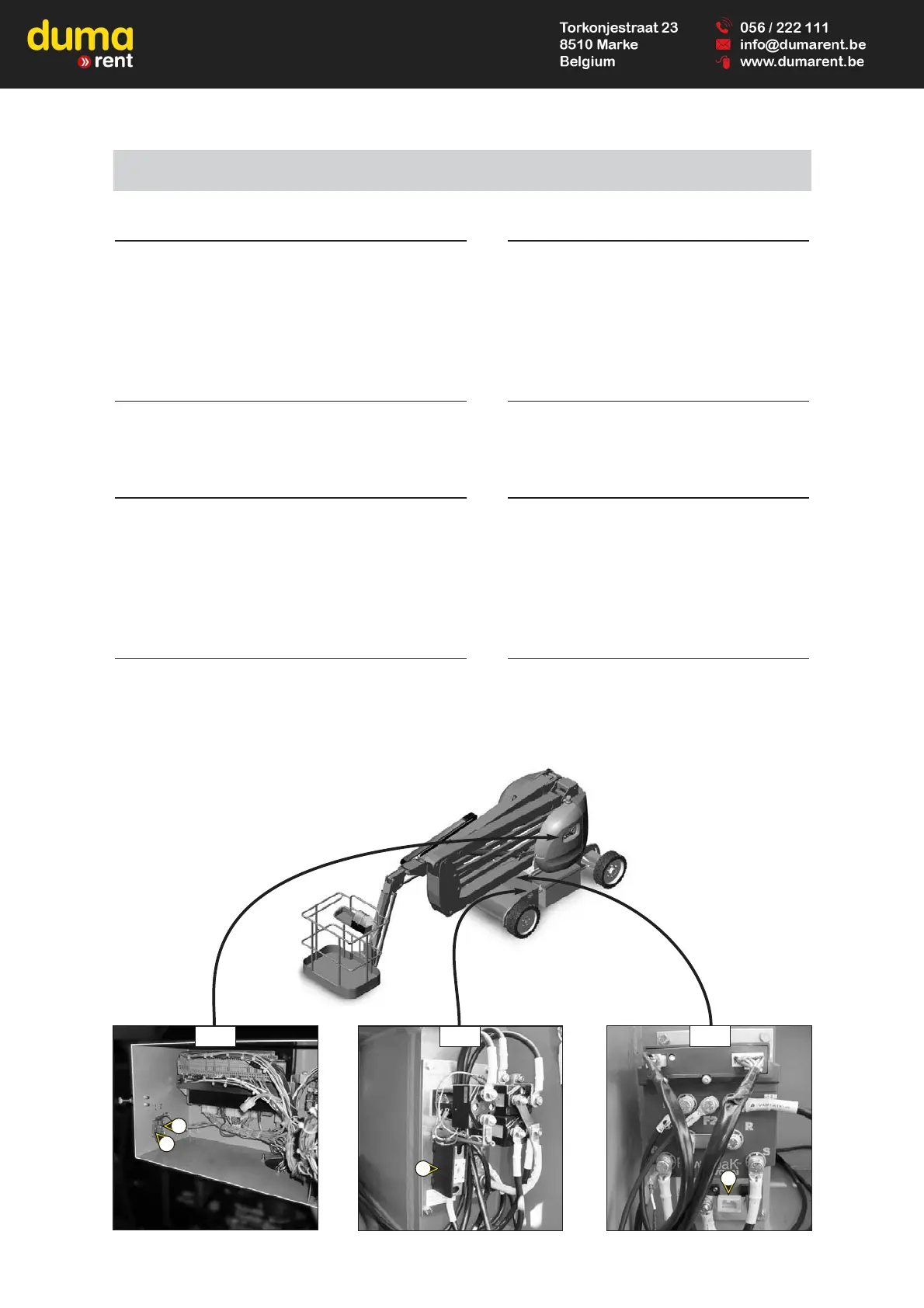

- Main card (Base control box ): 5 A (1 Fig A) and 15 A (2 Fig A)
- Power (Contactor plate): 325 A (3 Fig B)
- Electric pump (Variable speed drive plate): 100 A (4 Fig C)
CHARACTERISTICS
3
4
1
2
A
B
C
