2 - 26

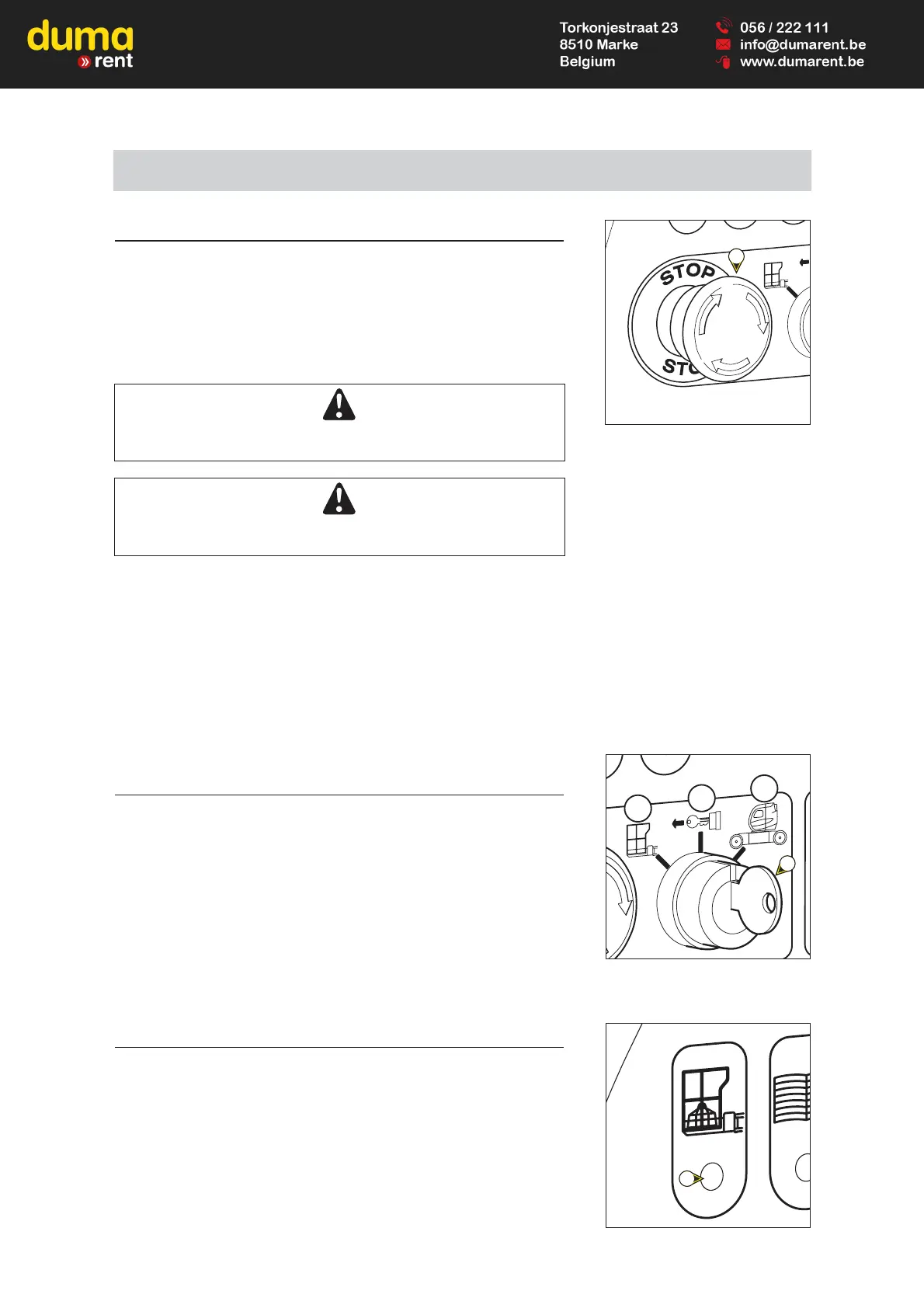

1 - EMERGENY STOP
This red mushroom-head switch cuts off all the machine’s movements in the
event of any anomalies or danger.
- Press the knob to stop the machine’s movements.
- Turn the knob a quarter of a turn to the right to restore the power (the switch
automatically returns to its initial position).
This command takes priority in all circumstances, even when control is swit-
ched to the access platform.
If the Emergency Stop is pressed,
movements may stop very abruptly.
2 - KEY-OPERATED CONTROL SELECTOR SWITCH AT
GROUND LEVEL OR IN THE BASKET
This 3-position BASKET / BASE control station, with the Stop position in the
centre, powers the basket control console when it is set in the PLATFORM
position. When the selector is in the BASE position, power to the console in
the BASKET is cut off and only the base controls can be used.
A : - Functions are controlled from the basket command and control sta-
tion.
B : - Neutral position : the platform controls are idle (remove the key in
this position)
C : - Functions are controlled from the ground backup and maintenance
station.
3 - O
VERLOAD LAMP
If the basket is overloaded, the LED flashes intermittently (See : ACCESS
PLATFORM OPERATION– SAFETY INSTRUCTIONS ).
GROUND BACKUP AND MAINTENANCE STATION
B
C
A
1
2
3
