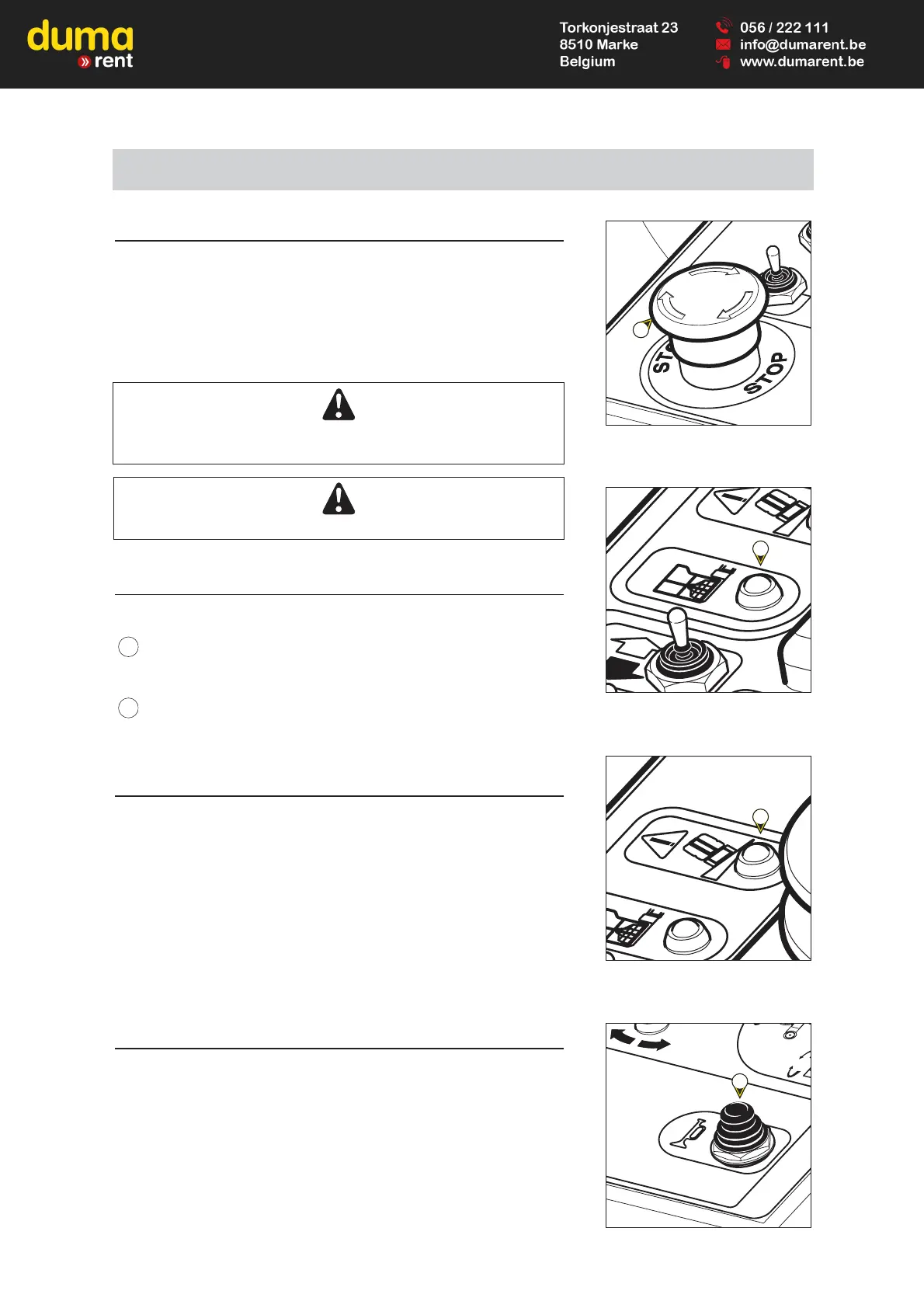

21 - EMERGENCY STOP
This red mushroom-head switch cuts off all the machine’s movements in the
event of any anomalies or danger.
- Press the knob to stop the machine’s movements.
- Turn the knob a quarter of a turn to the right to restore the power (the switch
automatically returns to its initial position).
In any case, this control has priority, unless movements are controlled by the
ground backup and maintenance station.
If the Emergency Stop is pressed, movements may stop very abruptly.
22 - OVERLOAD LAMP AND VARIATOR DEFECTS
- THIS LAMP HAS TWO FUNCTIONS :
1 If the basket is overloaded, the LED flashes intermittently (See :
ACCESS PLATFORM OPERATION – SAFETY INSTRUCTIONS).
2 In case of fault, the number of flashes indicates the type of fault detected
by the variator (See: 4 - Lamp“MAINTENANCE MACHINE” p 2-17).
23 - SLOPE LAMP
When the access platform has reached the maximum authorised slope
the LED flashes intermittently See : ACCESS PLATFORM OPERATION
– SAFETY INSTRUCTIONS).
24 - SOUND ALARM HORN
- When button 24 is pressed, it activates the sound alarm horn 19 located on
the turret.
