2 - 34

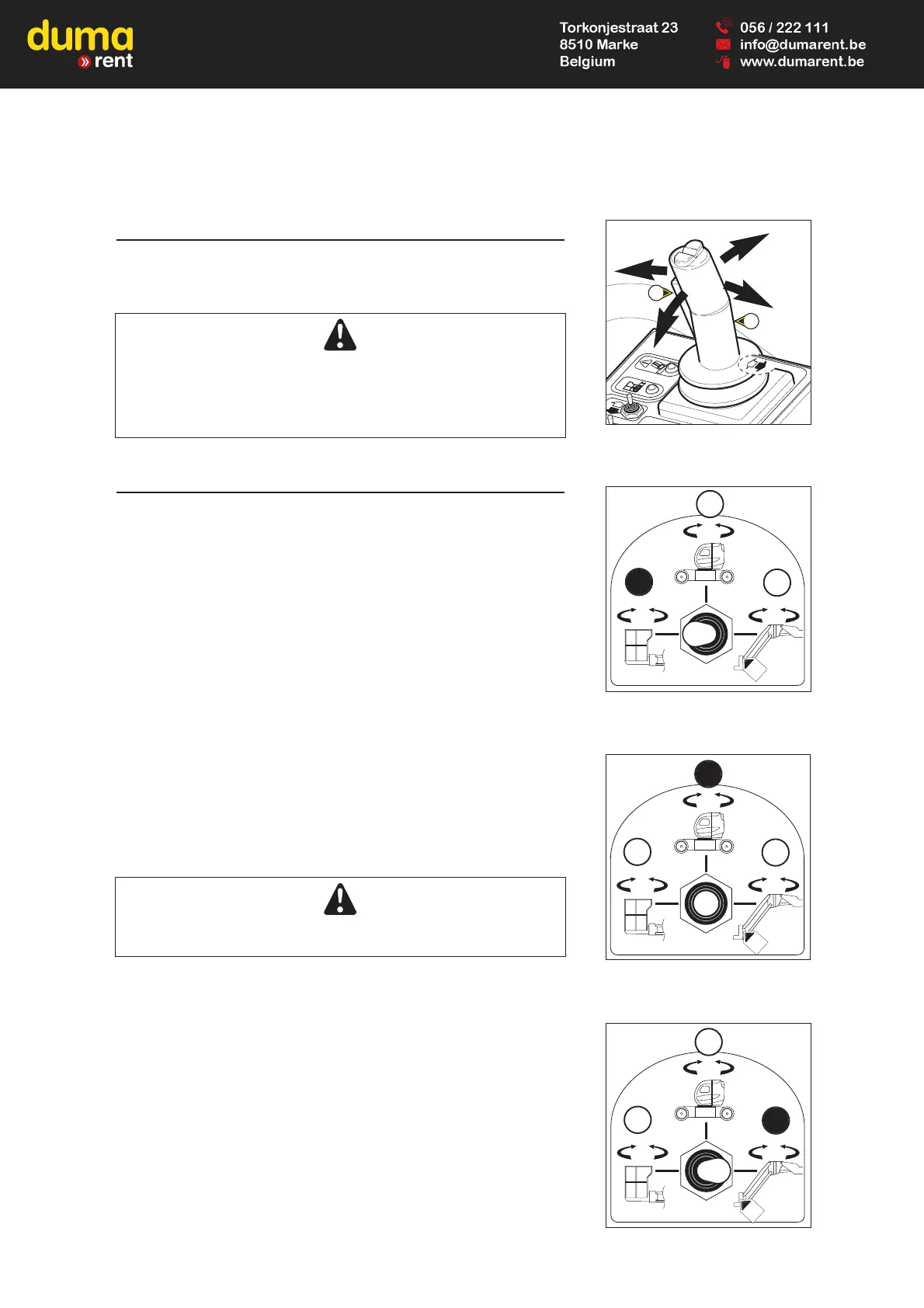

25 - CONTROL SWITCH
NB: This control switch is progressive control, and gives a very high approa-
ch accurancy. Its use should be smooth and free of jerkes.
SAFETY TRIGGER
- This trigger (item A) of control control switch 25 must be continually
pushed in to perform movements from the operating of the access
platform.
26 - CONTACTOR OF SELECTION OF ROTATION
This contactor (26) has three positions. Switch it over to the movements
you desire and then use the manipulator (25).
PLATFORM ROTATION
- Switch the contactor 26 to the left (position I).
- Incline to the right or to the left the control switch 25 to orientate on the right
or on the left respectively.
TURRET ROTATION
- Switch the contactor 26 to vertical (position II).
- Incline to the right or to teh left the control switch 25 to orientate on the right
or on the left respectively.
ROTATION OF ROTATED JIB (3D PLATFORMS)
- Switch the contactor 26 to the right (position III).
- Incline to the right or to the left the contactor 25 in order to rotate on the right
or on the left respectively.
Before you make any rotation manoeuvres, check that there is enough space
between the platform or the turret and the various walls and installations.
I
II
III
I
II
III
26
26
I
II
III
26
A
25
