Manitou 120 AETJ L User Manual

2 - 35

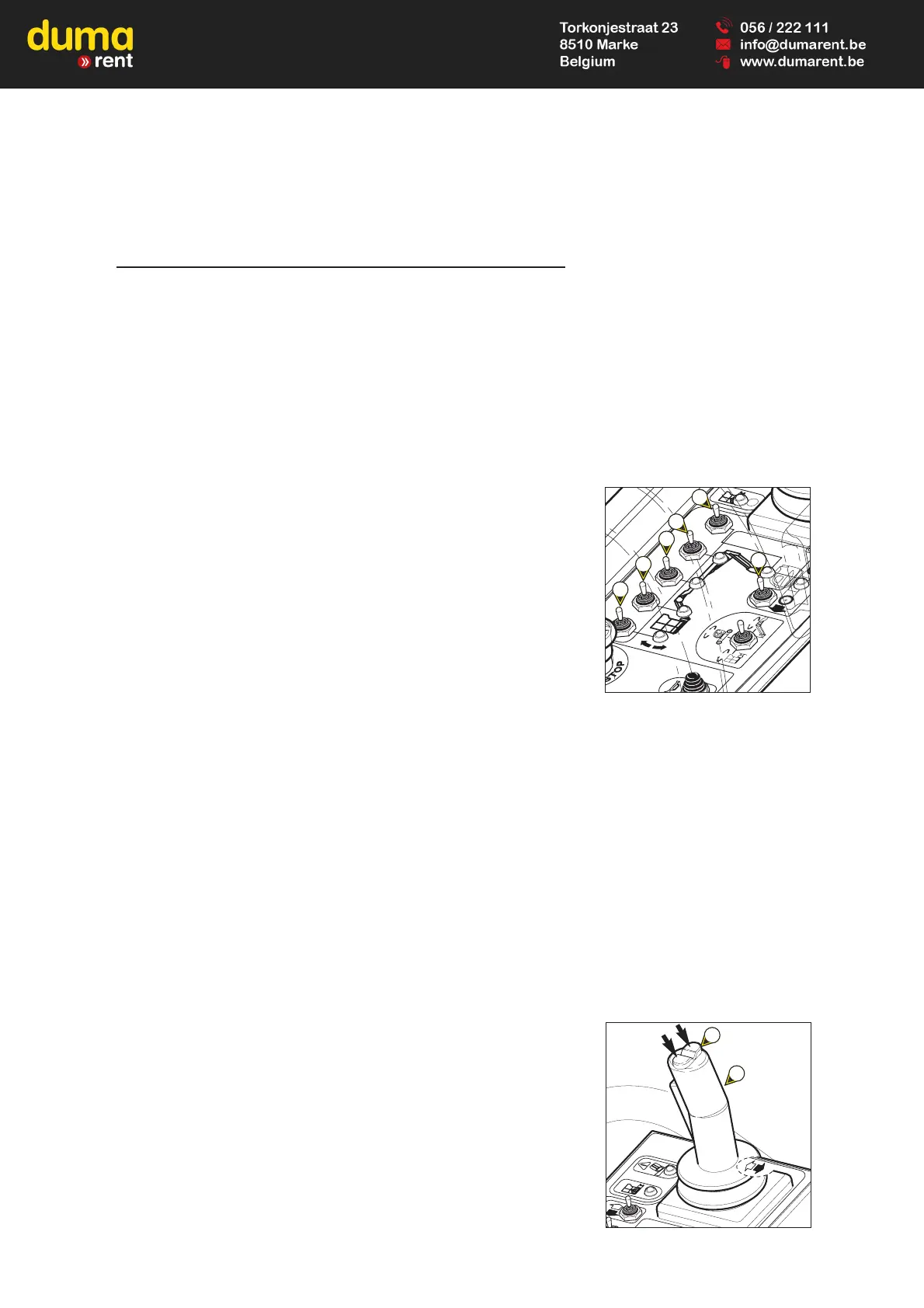

27 - 28 - 29 - 30 - 31 - 32 - MOVEMENT SELECTION
CONTACTOR
27 PLATFORM INCLINATION CONTACTOR
- Select the movement by pressing button 27; the movement remains
selected while the LED is lit (8 seconds).
- Push (forward) or pull (backward) the switch control 25 to raise or lower.
NB : The basket can only be tilted when the machine is in transport position.
(see USING THE ACCESS PLATFORM).
28 EXTENSION ARM LIFTING / LOWERING CONTACTOR
- Select the movement by pressing button 28; the movement remains
selected while the LED is lit (8 seconds).
- Push (forward) or pull (backward) the switch control 25 to raise or lower.
29 TELESCOPE OUTPUTS / INPUTS CONTACTOR
- Select the movement by pressing button 29; the movement remains
selected while the LED is lit (8 seconds).
- Push (forward) or pull (backward) the switch control 25 to go out or go back.
30 SUPERIOR ARM LIFTING / RAISING CONTACTOR
- Select the movement by pressing button 30; the movement remains
selected while the LED is lit (8 seconds).
- Push (forward) or pull (backward) the switch control 25 to raise or lower.
31 INFERIOR ARM LIFTING / RAISING CONTACTOR
- Select the movement by pressing button 31; the movement remains
selected while the LED is lit (8 seconds).
- Push (forward) or pull (backward) the switch control 25 to raise or lower.
32 TRAVELLING CONTACTOR
- Select the movement by pressing button 32 briefly (See NB for button B) ;
the movement stays selected as long as the LED is on (8 seconds).
- Push (forward) or pull (backward) the switch control 25 to advance or
retract.
DIRECTION:
- TO STEER TO THE LEFT OR THE RIGHT WITHOUT MOVING IN
TRAVELLING:
- Select the direction by pressing button B on the manipulator 25
(constant pressure) to the right or the left of the button to go
respectively right or left.
- TO STEER TO THE LEFT OR THE RIGHT WITH TRAVELLING:
- Select the direction by pressing button B on the manipulator 25
(constant pressure) to the right or the left of the button to go
respectively right or left.
- Push the manipulator (25) forwards or pull it backwards
respectively to go forward or reverse while steering the wheels.
NB : Pressing button B on the manipulator briefly also selects the travelling
movement, the movement stays selected as long as the LED (same as
contactor 32) is on (8 seconds).
25
B
27
28
29
32
30
31
