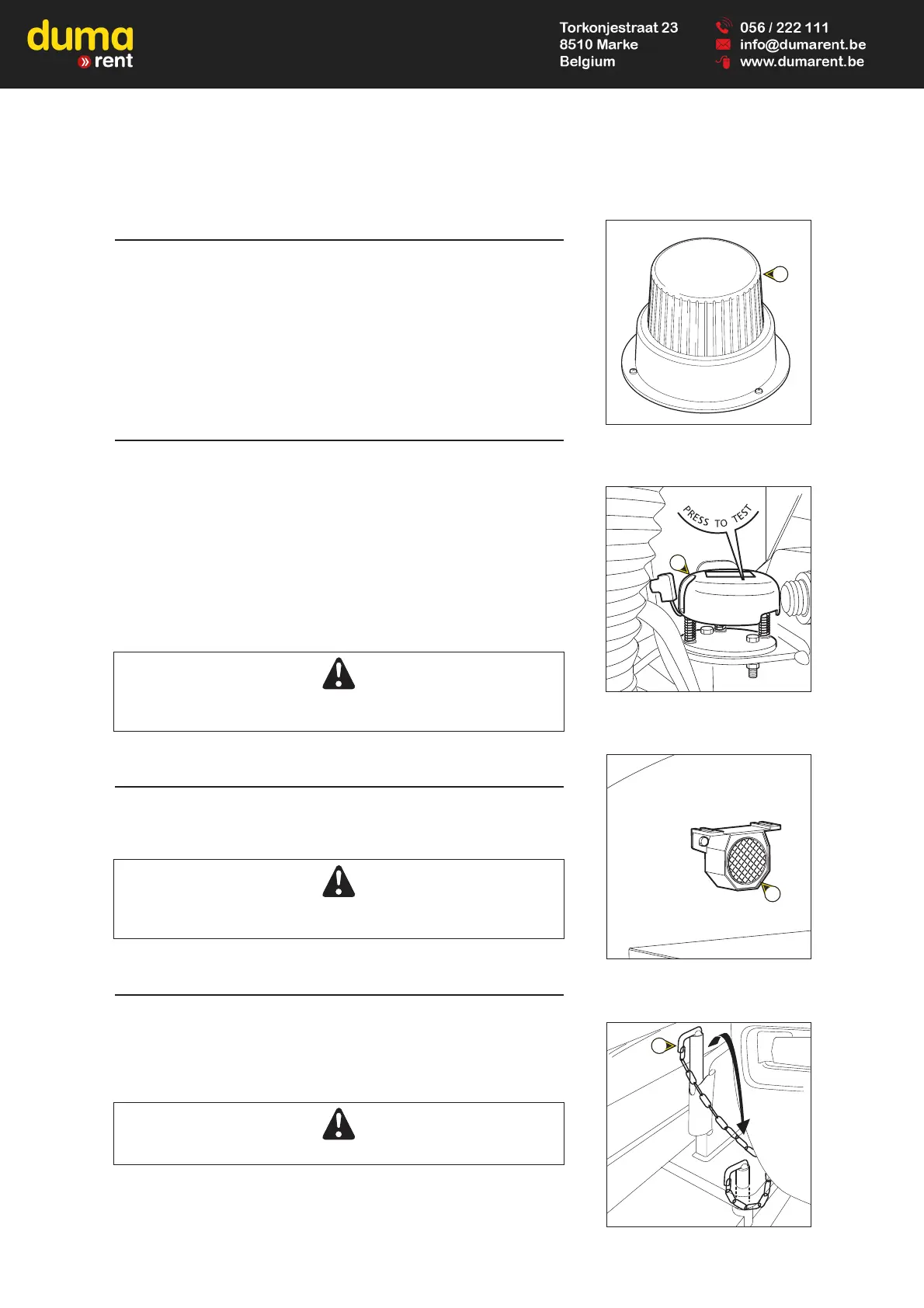

17 - FLASHING LIGHT (OPTION)
- The flashing alarm lamp turns on automatically when the platform is
travelling, or if a movement is carried out (Lifting, rotation,...).
18 - SLOPE SENSOR
- This sensor checks the platform’s inclination. When the platform
reaches the maximum authorised inclination (See the Chapter:
CHARACTERISTICS), the buzzer (33) sounds intermittently and all the
“AGGRAVATING” movements – raising the arms, extending the
telescope – are blocked. The LED (23) on the platform is lit.
NB: SLOPE TEST; set the platform on a flat surface in base control
position (see 2 – KEY-OPERATED CONTACTOR). Press the sensor
“PRESS TO TEST”, the buzzer should sound and the LED light up.
If the buzzer does not sound and the LED does not light, immobilise the
platform and make the necessary repairs.
19 - SOUND ALARM HORN
This sound alarm horn (fixed to the turret above the ground backup and
maintenance station box) is activated by pressing button 24.
The alarm will be activated if the BATTERY CUT-OUT is left on the ON
position when charging the batteries (see 16 – BATTERY CUT-OUT).
20 - BLOCKAGE OF THE TURRET ROTATION
- Put the spindle in the space foreseen for this effect.
- This spindle is used to lock the turret rotation when she is in position.
- She must be used when the access platform is transported by truck or by
another transport (train ...).
Do not forget to remove its during the use of the access platform.
NB: Releasing the pin; you may have to rotate the turret right or left to
free the pin to extract it from its location.
17
18
19
20
